Maintenance and Adjustment
Clutch

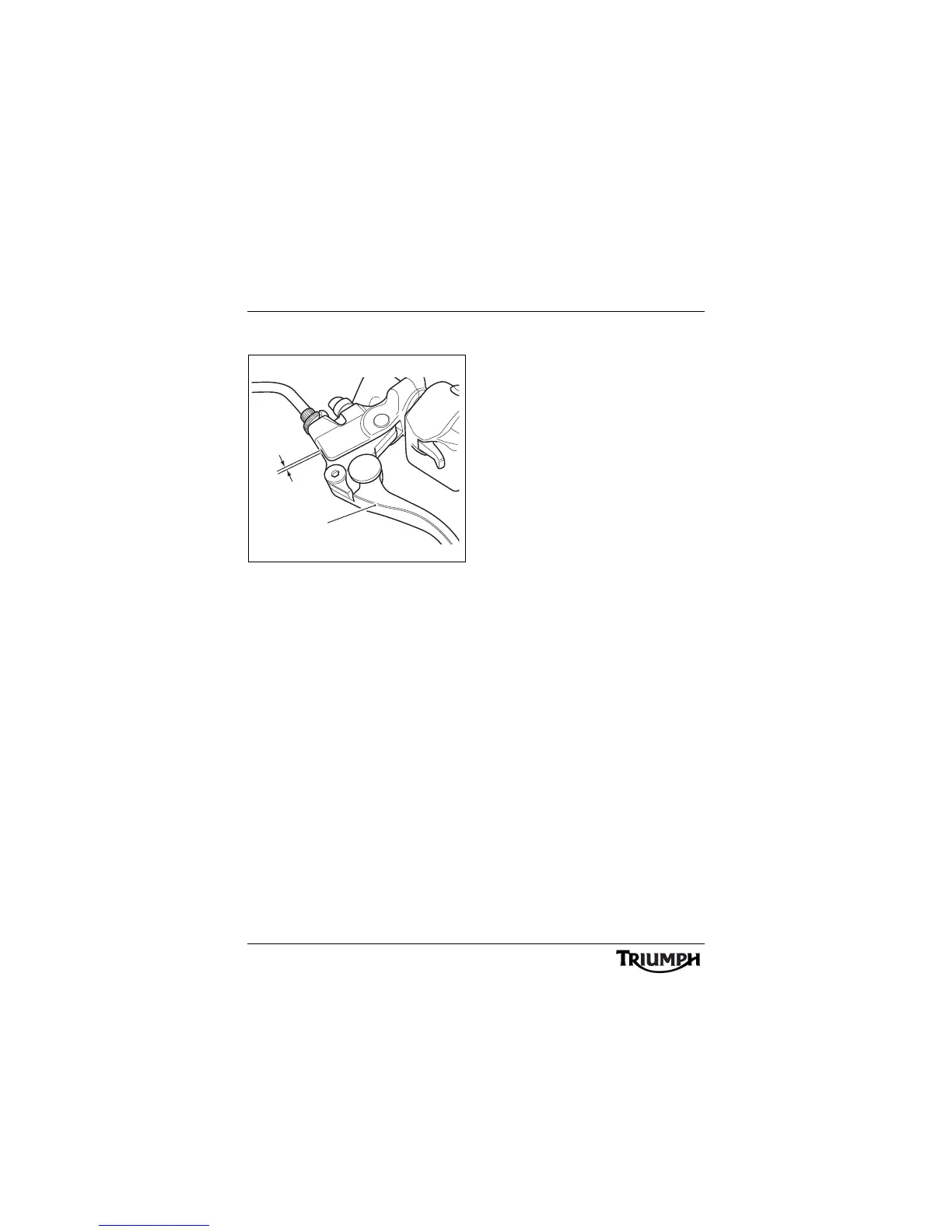

1. C l u t c h l e v e r
2. 0.08 - 0.12 in (2 - 3 mm)
The motorcycle is equipped with a
cable-operated clutch.
If the clutch lever has excessive free play, the
clutch may not disengage fully. This will cause
difficulty in shifting gear and selecting
neutral. This may cause the engine to stall
and make the motorcycle difficult to control.
Conversely, if the clutch lever has insufficient
free play the clutch may not engage fully,
causing the clutch to slip, which will reduce
performance and cause premature clutch
wear.
Clutch lever free play must be checked in
accordance with scheduled maintenance
requirements.
Inspection
Check that there is 0.08 - 0.12 in (2 - 3 mm)
clutch lever free play at the lever.
If there is an incorrect amount of free play,
adjustments must be made.
Adjustment
Loosen the knurled locknut at the lever end
of the clutch cable and turn the adjuster
sleeve until the correct amount of clutch lever
free play is achieved.
Tighten the knurled locknut against the
clutch lever assembly.
If correct adjustment cannot be made using
the lever adjuster, use the cable adjuster at
the lower end of the cable.
Loosen the adjuster locknut.
Turn the outer cable adjuster to give 0.08 -
0.12 in (2 - 3 mm) of free play at the clutch
lever.
Tighten the locknut.
ccpe
2
1

Triumph Sprint ST Specifications

General

Engine Type	Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Displacement	1050cc
Bore x Stroke	79 x 71.4 mm
Compression Ratio	12.0:1
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	X ring chain
Clutch	Wet, multi-plate
Gearbox	6-speed
Rear Suspension	Monoshock with adjustable preload and rebound damping
Rear Brakes	Single 255mm disc, 2-piston caliper
Front Wheel	17 x 3.5 in
Rear Wheel	17 x 5.5 in
Front Tyre	120/70 ZR 17
Rear Tyre	180/55 ZR 17
Max Power	125 PS / 123 bhp / 92 kW @ 9, 250 rpm
Max Torque	104 Nm / 77 ft-lb @ 5, 000 rpm
Frame	Aluminum beam perimeter
Front Suspension	43 mm
Front Brakes	Twin 320 mm floating discs, 4 piston calipers
Seat Height	805 mm
Dry Weight	210 kg
Fuel Tank Capacity	20 liters
