Triumph Sprint ST User Manual

41
General Information

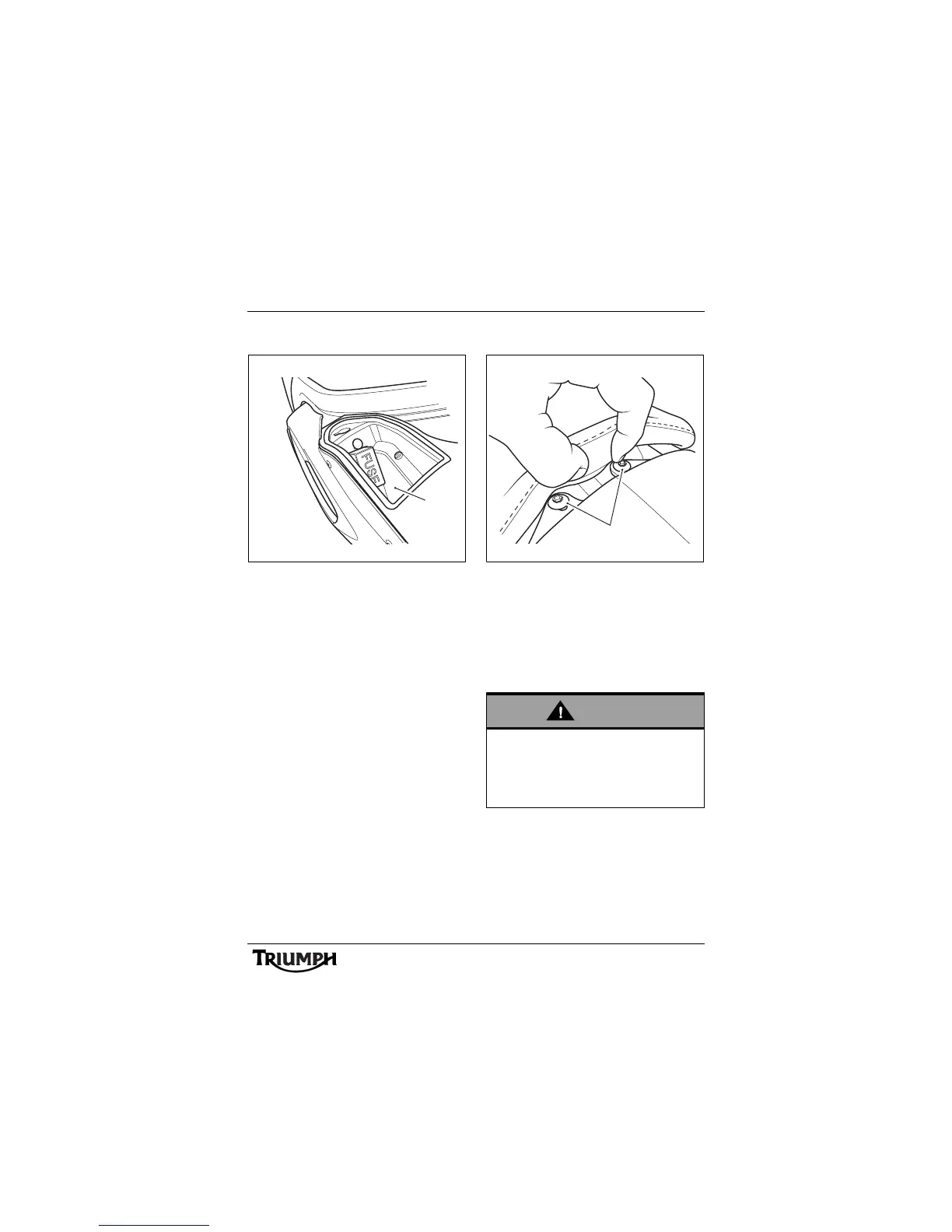

Tool Kit and Handbook
1. Tool kit/Handbook location (Sprint ST
shown)
The tool kit and handbook are located in a
lockable stowage box on the right hand side
of the motorcycle.
To gain access, insert the ignition key into the
lock and remove the cover.
Note:
• The stowage box is not
waterproof.
Seat - Sprint ST
1. Seat fasteners
Two seat fasteners are located under the rear
edge of the seat. To remove the seat, push
back the rear edge of the seat and unscrew
the exposed fasteners. Remove the fasteners
and collect the two flanged washers. Raise the
seat and slide rearwards for complete
removal from the motorcycle.
To re-install the seat, engage the seat's
tongues under the fuel tank and slide the seat
forwards to engage.
Re-install the flanged washers and fasteners.
Tighten the seat fasteners to
27 lbf in (3 Nm).
ccpm
1
Warning
The muffler heat shield is located directly
below the seat and may be hot to the
touch. Do not touch the heat shield as
contact with the hot heat shield may cause
the skin to become burned.
ccxg
1

Triumph Sprint ST Specifications

General

Engine Type	Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Displacement	1050cc
Bore x Stroke	79 x 71.4 mm
Compression Ratio	12.0:1
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	X ring chain
Clutch	Wet, multi-plate
Gearbox	6-speed
Rear Suspension	Monoshock with adjustable preload and rebound damping
Rear Brakes	Single 255mm disc, 2-piston caliper
Front Wheel	17 x 3.5 in
Rear Wheel	17 x 5.5 in
Front Tyre	120/70 ZR 17
Rear Tyre	180/55 ZR 17
Max Power	125 PS / 123 bhp / 92 kW @ 9, 250 rpm
Max Torque	104 Nm / 77 ft-lb @ 5, 000 rpm
Frame	Aluminum beam perimeter
Front Suspension	43 mm
Front Brakes	Twin 320 mm floating discs, 4 piston calipers
Seat Height	805 mm
Dry Weight	210 kg
Fuel Tank Capacity	20 liters
