Triumph Sprint ST User Manual

83

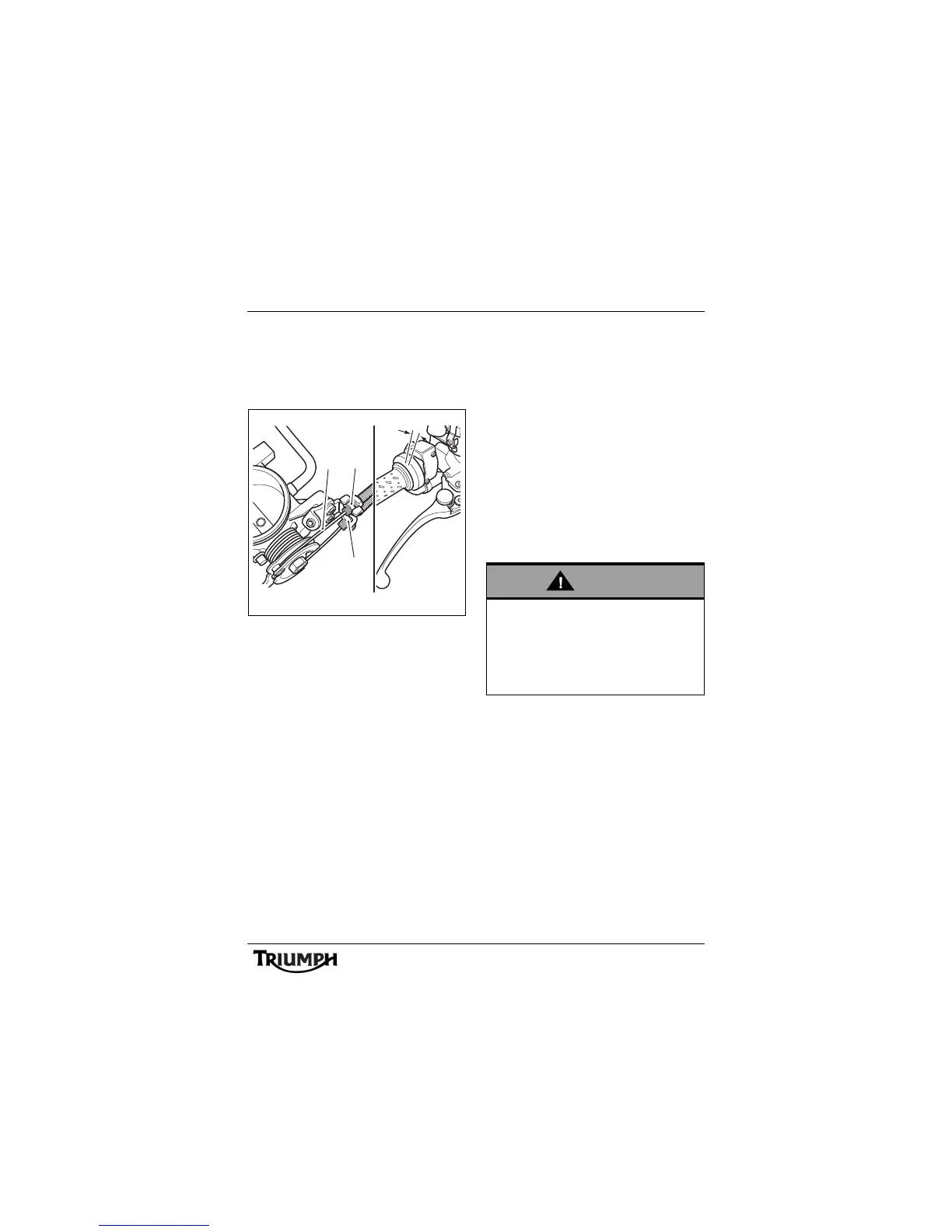

Maintenance and Adjustment
If there is an incorrect amount of free play,
Triumph recommends that you have
adjustments made by your authorized
Triumph dealer. However, in an emergency,
throttle adjustment may be made as follows:
1. Opening cable adjuster
2. Closing cable adjuster
3. Closing cable – free play
measurement point
4. Opening cable – free play
measurement point
Adjustment
Remove the seat.
Disconnect the battery, negative (black) lead
first.
Remove the fuel tank and airbox.
Release the locknut on the 'opening' cable
adjuster.
Rotate the 'opening' cable adjuster at the
twist grip end such that it has an equal
amount of adjustment in each direction.
Rotate the 'opening' cable adjuster at the
throttle body end of the cable to give
0.08 - 0.12 in (2 - 3 mm) of play at the twist
grip. Tighten the locknut.
Make any minor adjustments as necessary to
give 0.08 - 0.12 in (2 - 3 mm) of play using
the adjuster near the twist grip end of the
cable. Tighten the locknut.
With the throttle fully closed, ensure that
there is 0.08 - 0.12 in (2 - 3 mm) of free play
in the 'closing' cable at the throttle cam
attached to the throttle bodies. If necessary,
adjust in the same way as the 'opening' cable
until 0.08 - 0.12 in (2 - 3 mm) of play is
present.
Re-install the fuel tank and airbox.
Reconnect the battery, positive (red) lead first.
Re-install the seats.
Check that the throttle opens smoothly,
without undue force and that it closes without
sticking.
Ride carefully to your nearest authorized
Triumph dealer and have them check the
throttle system thoroughly before riding
again.
ccqv
4
2
3
1
Warning
Ensure that all the adjuster locknuts of all
cables are tightened, as a loose locknut
could result in a sticking throttle.
An incorrectly adjusted, sticking or stuck
throttle can lead to loss of motorcycle
control and an accident.

Triumph Sprint ST Specifications

General

Engine Type	Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Displacement	1050cc
Bore x Stroke	79 x 71.4 mm
Compression Ratio	12.0:1
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	X ring chain
Clutch	Wet, multi-plate
Gearbox	6-speed
Rear Suspension	Monoshock with adjustable preload and rebound damping
Rear Brakes	Single 255mm disc, 2-piston caliper
Front Wheel	17 x 3.5 in
Rear Wheel	17 x 5.5 in
Front Tyre	120/70 ZR 17
Rear Tyre	180/55 ZR 17
Max Power	125 PS / 123 bhp / 92 kW @ 9, 250 rpm
Max Torque	104 Nm / 77 ft-lb @ 5, 000 rpm
Frame	Aluminum beam perimeter
Front Suspension	43 mm
Front Brakes	Twin 320 mm floating discs, 4 piston calipers
Seat Height	805 mm
Dry Weight	210 kg
Fuel Tank Capacity	20 liters
