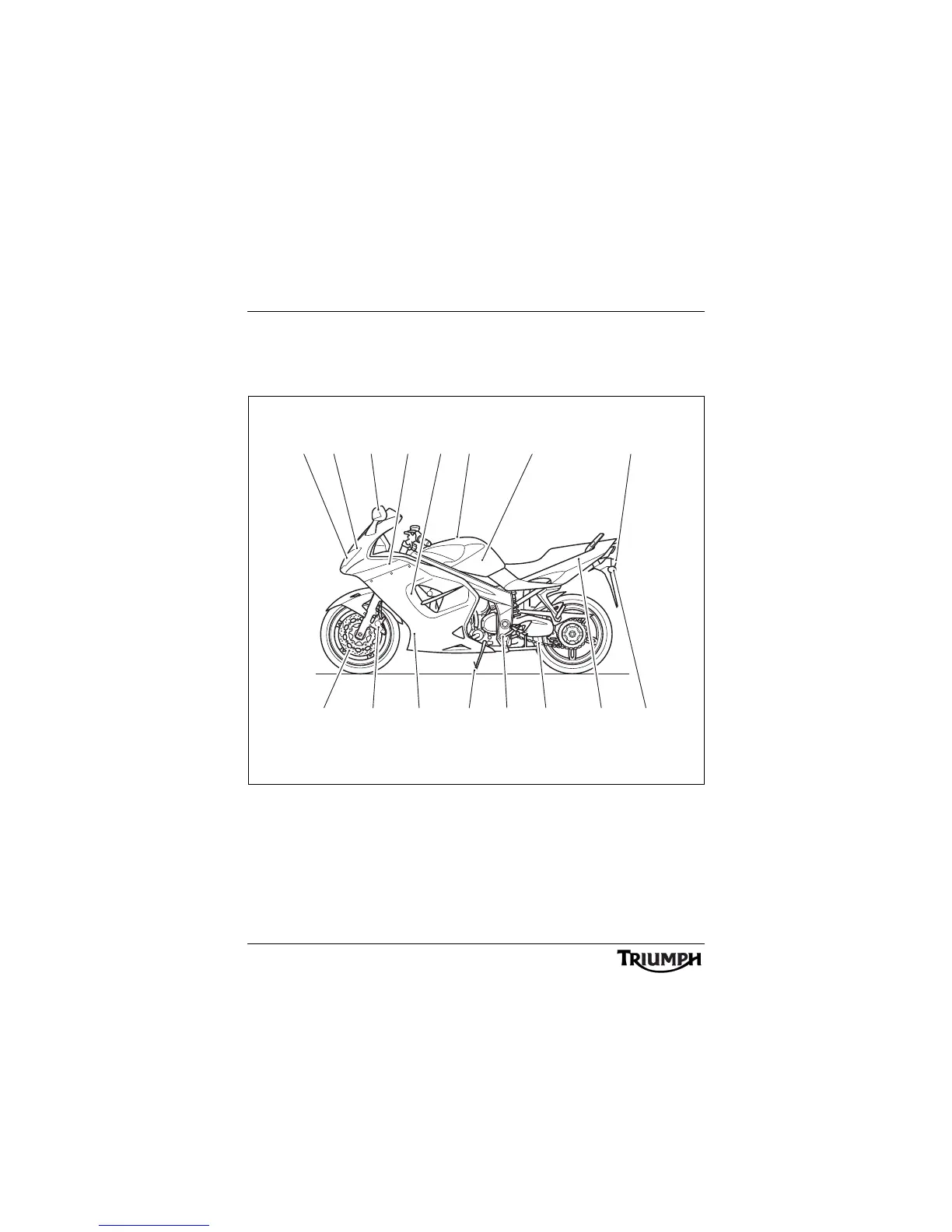

Parts Identification
PARTS IDENTIFICATION
Sprint ST
1. Headlight
2. Position lamp
3. Front turn signal
4. Coolant expansion tank
5. Radiator/Coolant pressure cap
6. Fuel filler cap
7. F ue l t ank
8. Rear light
9. Front brake disc
10.Front brake caliper
11. O i l c o o l e r
12 . S i d e s t a n d
13 . G e a r - s h i f t p e d a l
14 . D r i v e c h a i n
15 . M u f f l e r
16.Rear turn signal
ccmq
52 6
15
3 74 8
141312 169 10 11
1

Triumph Sprint ST Specifications

General

Engine Type	Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Displacement	1050cc
Bore x Stroke	79 x 71.4 mm
Compression Ratio	12.0:1
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	X ring chain
Clutch	Wet, multi-plate
Gearbox	6-speed
Rear Suspension	Monoshock with adjustable preload and rebound damping
Rear Brakes	Single 255mm disc, 2-piston caliper
Front Wheel	17 x 3.5 in
Rear Wheel	17 x 5.5 in
Front Tyre	120/70 ZR 17
Rear Tyre	180/55 ZR 17
Max Power	125 PS / 123 bhp / 92 kW @ 9, 250 rpm
Max Torque	104 Nm / 77 ft-lb @ 5, 000 rpm
Frame	Aluminum beam perimeter
Front Suspension	43 mm
Front Brakes	Twin 320 mm floating discs, 4 piston calipers
Seat Height	805 mm
Dry Weight	210 kg
Fuel Tank Capacity	20 liters
