EMISSION

AND

EVAPORATIVE LOSS CONTROL SYSTEMS

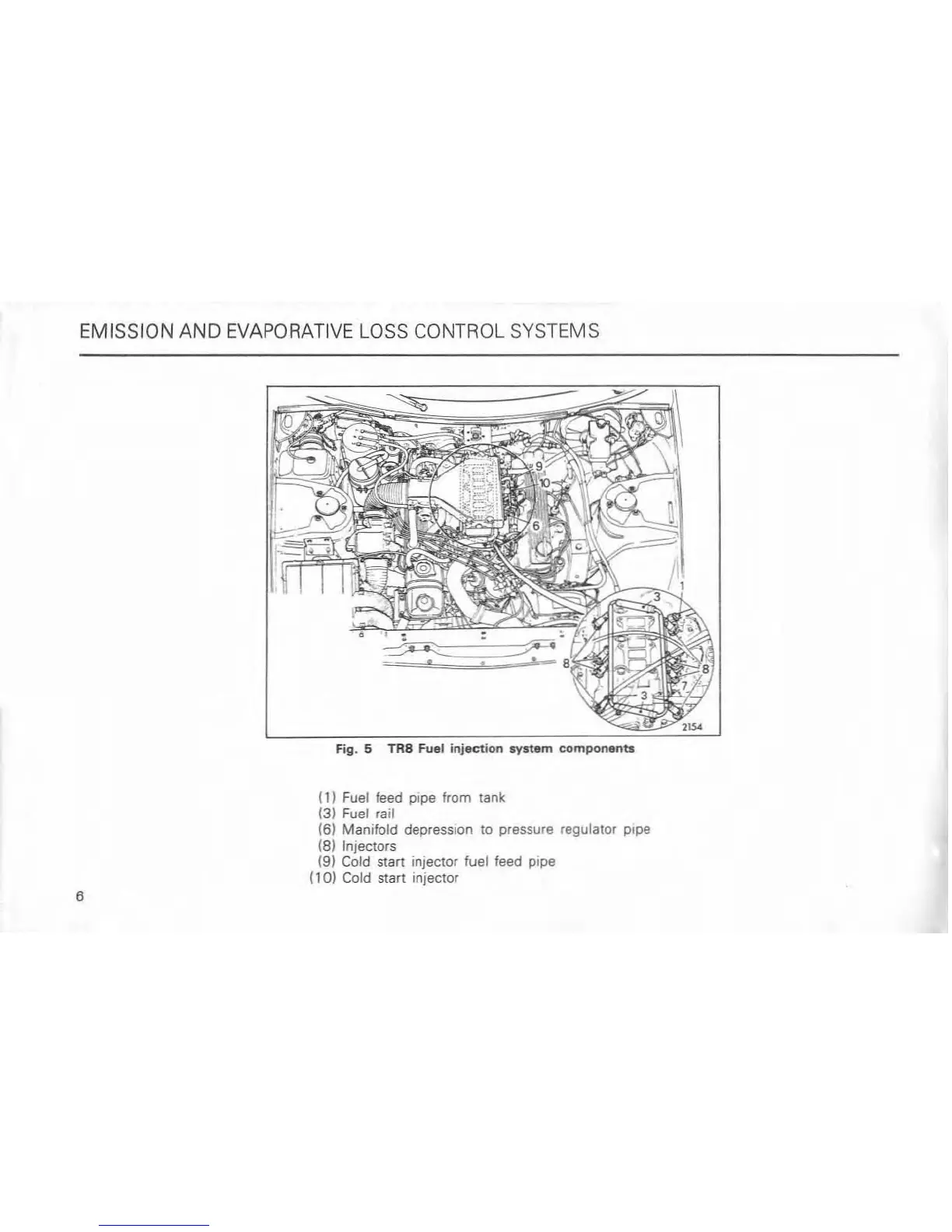

Fig. 5

TR8

Fuel

injection

system

(:omponents

• , .

""'."""'-"""'"

• t

(1) Fuel feed Plpe from tank

(3) Fuel rail

(6) Manifold

depreSSion to pressure regulator Pipe

(8) Injectors

(9) Cold start injector fuel feed

pipS

(10) Cold starl Injector
