EMISSION
AND
EVAPORATIVE LOSS CONTROL SYSTEMS

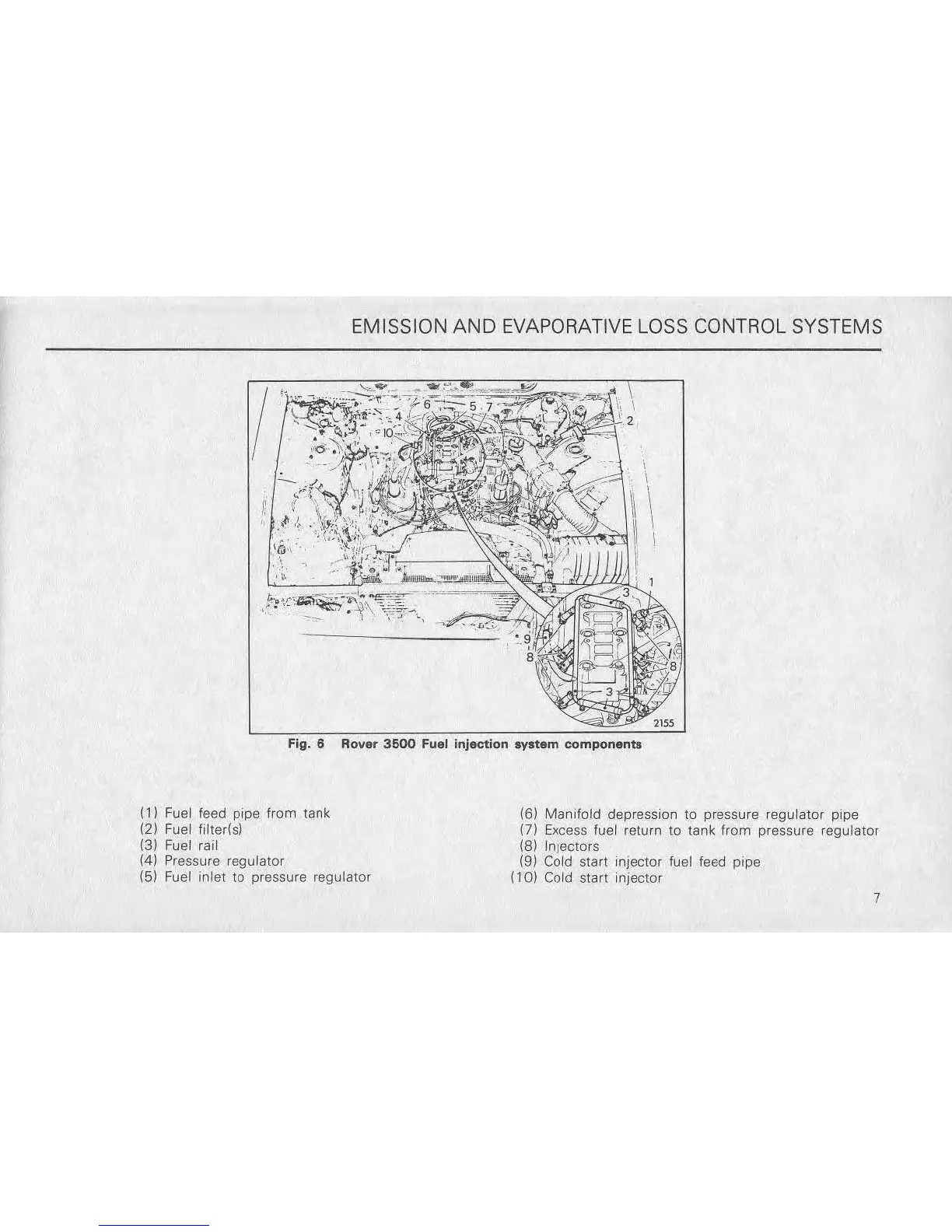

Fig. 6 Rover
3600
Fuel injection system componenta
(1) Fuel feed pipe from tank
(2) Fuel fllter/s)
(3) Fuel rail
(4) Pressure regulator
(5) Fuel inlet to pressure regulator
(6)
Manifold
depression to pressure regulator
pipe
(7) Excess fuel return to tank from pressure regulator
(8) Injectors
(9) Cold start injector fuel feed pipe
(10) Cold start injector
7
