CENTRE THE RUNNING BELT

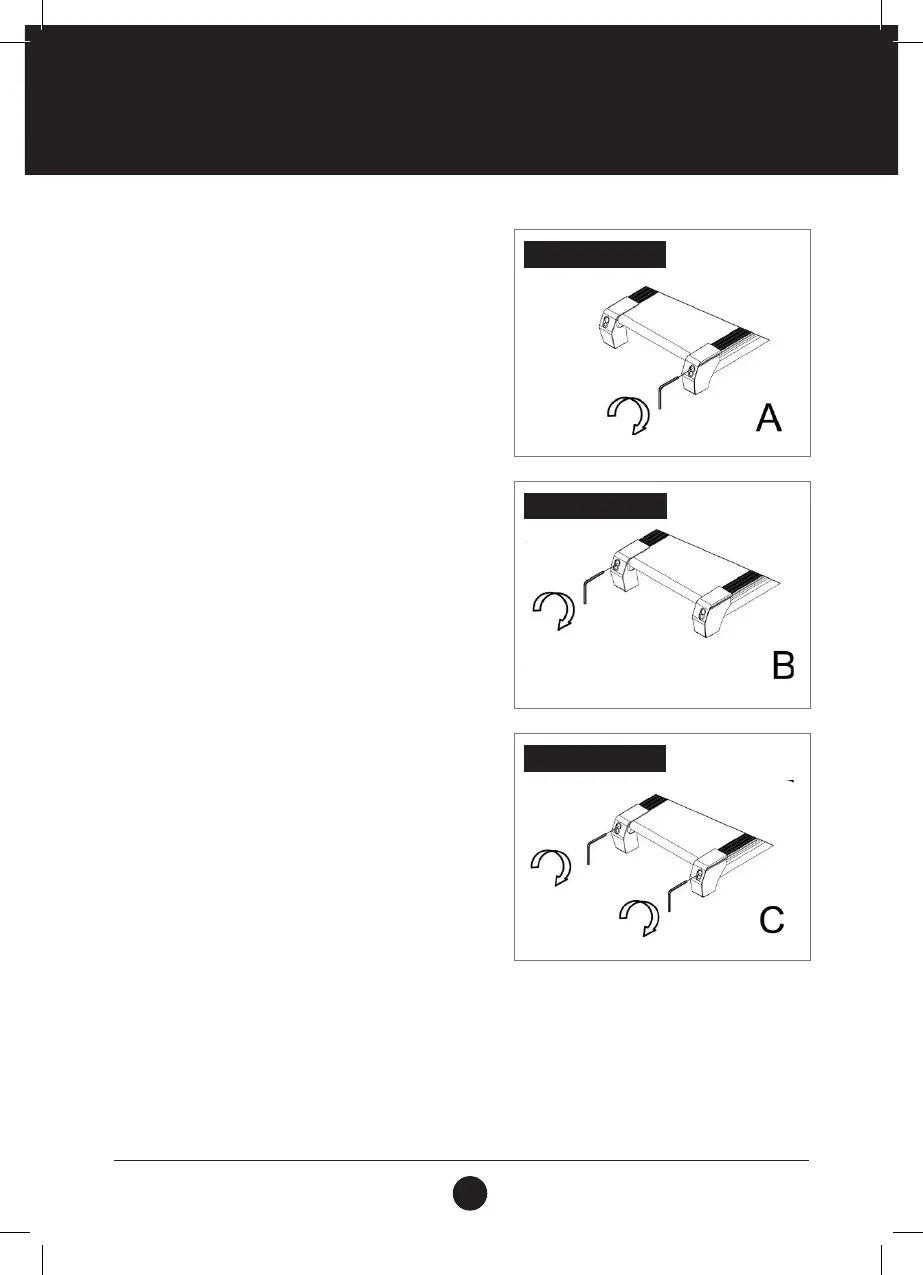

ILLUSTRATION A
Place treadmill on a level surface. Run Treadmill at
approximately 6-8 km/h to check the running condition.
If the belt has drifted to the right, turn the right adjusting
bolt 1/4 turn clockwise, then start running until centering
the belt.
ILLUSTRATION B
If the belt has drifted to the left, turn the left adjusting
bolt 1/4 turn clockwise, then start running until centering
the belt.
ATTENTION: the space between the belt and the
right/left edgings is at a distance normally. And the gap
between the right and left distance should be no more
than 5 mm.
ILLUSTRATION C
Periodically adjust the tightness of the belt as the belt
tends to loosen after periods of use. Turn the left and
right adjusting bolt 1/4 turn clockwise, then re-start
running, conrm the belt-tightness until the belt is the
correct tightness.
ATTENTION: the space between the belt and the
right/left edgings is at a distance normally. And the gap
between the right and left distance should be no more
than 5 mm.



