Trolex XD1+ - 6. DEVICE COMPONENTS; Component Identification

11
The D1
+
designed with end users in mind and allows for quick, robust, and instant installation to
suit all applications. The product uses a sensor that is located inside the main housing that provides
isolation and ingress protection between the particle flow path and control circuits.
The following details highlight the main features of D1
+
Personal Dust Monitor.

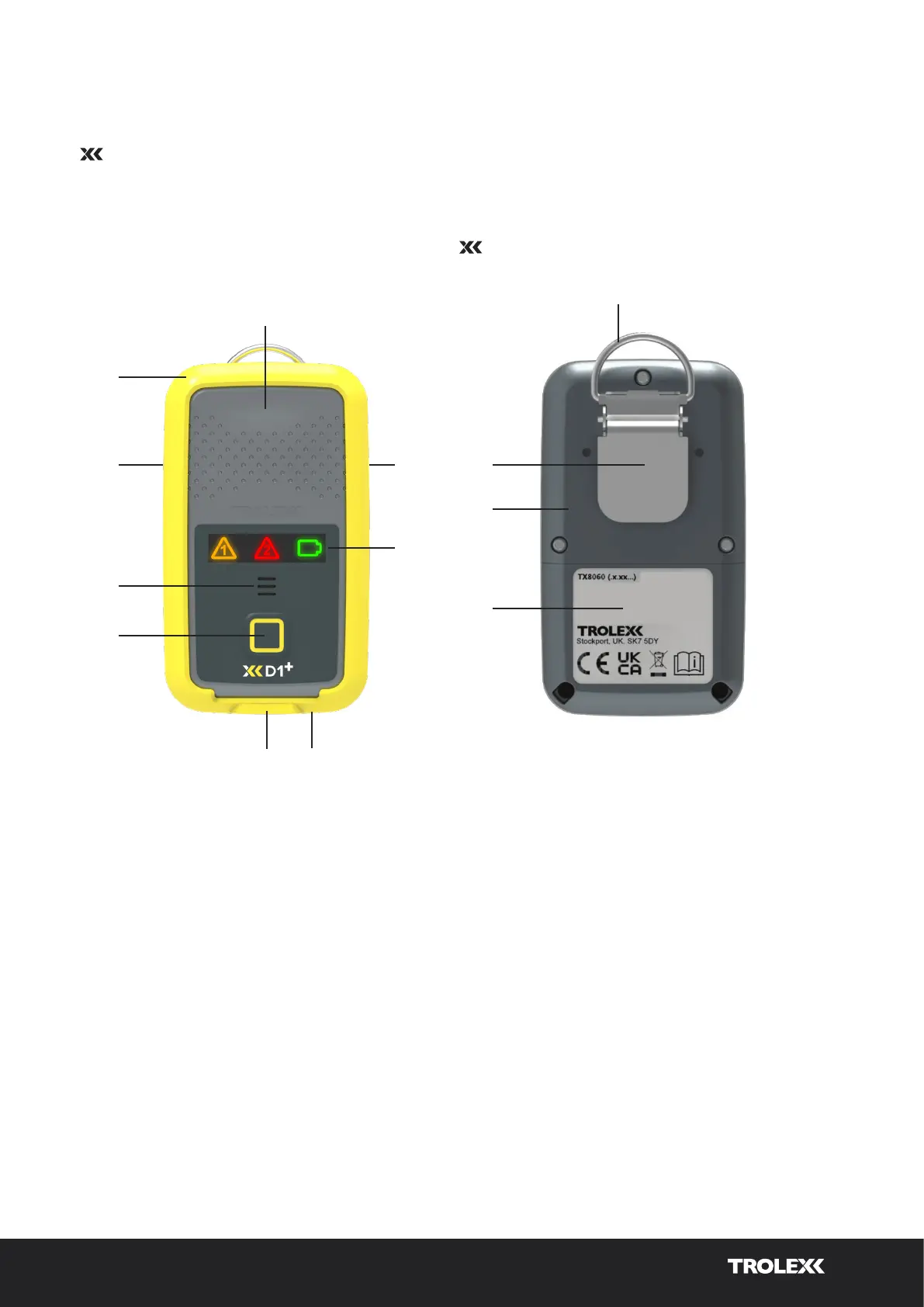

6. DEVICE COMPONENTS
1. Protective boot
2. Main housing
3. Inlet
4. Outlet
5. LED user interface
6. Sounder outlet
7. On / o function switch
8. USB C connector
9. Device reset button
10. Mounting loop
11. Aligator clip
12. Sensor housing
13. Product label
