STEL alarm
threshold
TWA alarm
threshold

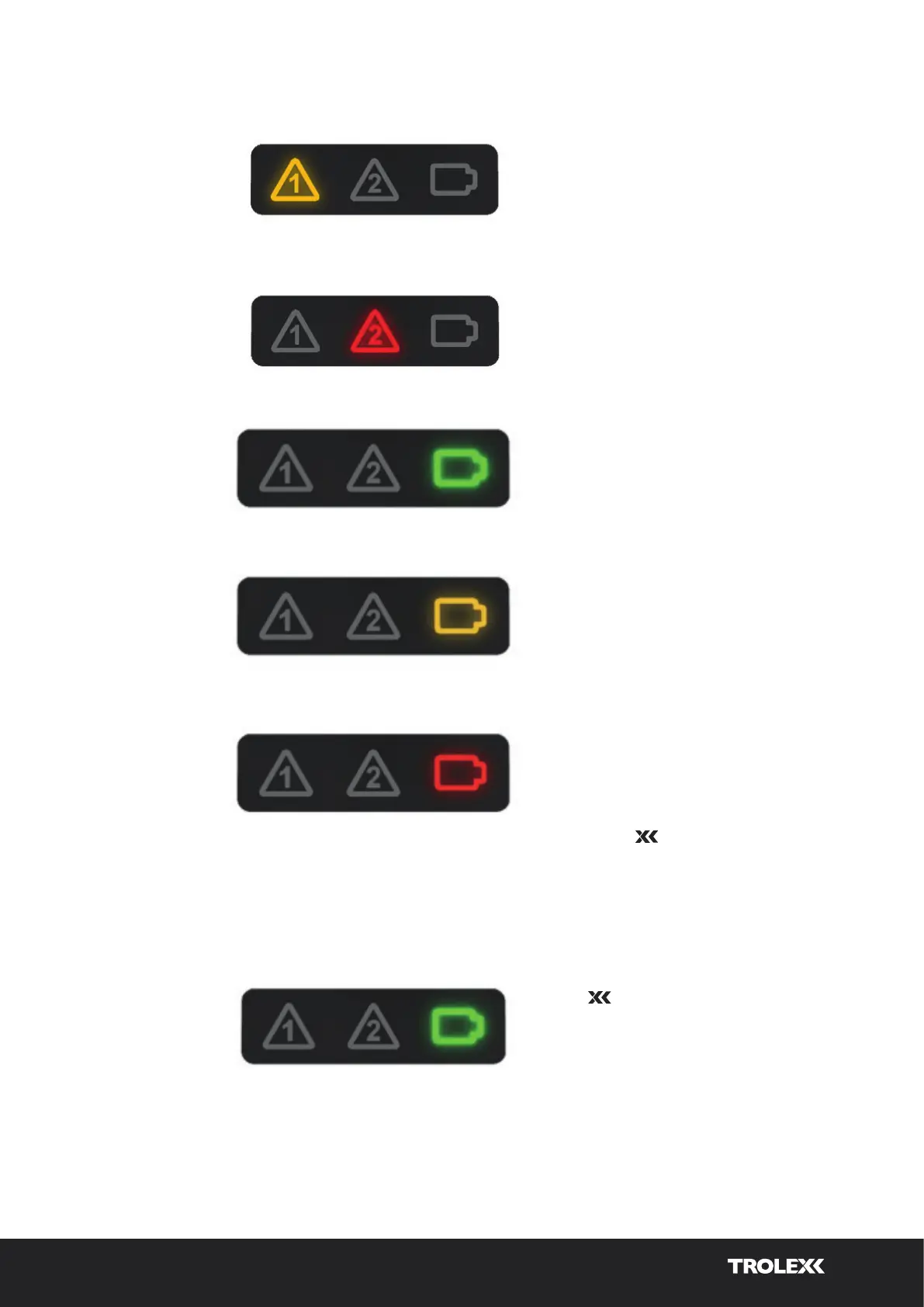

Flashing amber warning icon 1
will be illuminated when the STEL
threshold is breached.
Flashing red warning icon 2 will be
illuminated when the TWA threshold
is breached.
Battery icon
The battery icon will flash green
intermittently (3 seconds) to indicate
a power status between 100 and
70%.
The battery icon will flash amber
intermittently (3 seconds) to indicate
a power status between 69 and
40%.
The battery icon will flash red
intermittently (3 seconds) to indicate
a power status of 39% or lower.
When the D1
+
reaches a battery
level of < 10%, a red warning will
flash every second.
Heartbeat
The D1
+
heartbeat is indicated via
the intermittent flashing (3 seconds)
of the battery icon.
