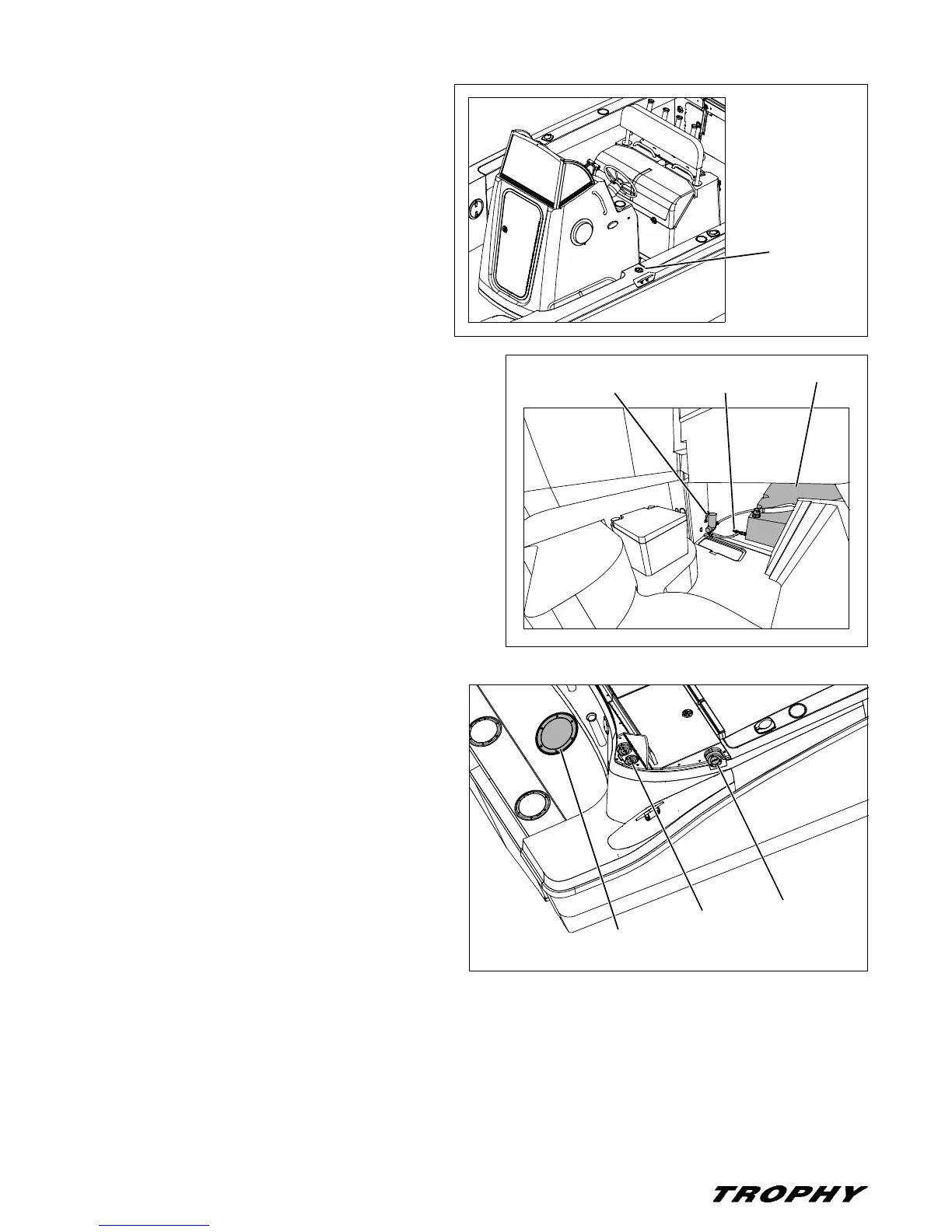

Chapter 2: Locations 2503 Center Console • Owner’s Manual Supplement
Freshwater Fill Deck Fitting (If Equipped):
Located on the port deck.
Freshwater System Drain Plug (If Equipped):
Located in the space aft of the head compartment.
Access is through the aft wall hatch in the head.
Freshwater Pump and Filter (If Equipped):
Located in the space aft of the head compartment.
Access is through the aft wall hatch in the head.
Freshwater Tank (If Equipped):
Located in the space aft of the head compartment.
Access is through the aft wall hatch in the head.
Fuel/Oil Fill Deck Fittings:
Located on the starboard aft deck.
Fuel Tank:
Located in the aft bilge.
Access is through the motor-well hatch.
WATER FILL
DECK FITTING
WATER TANKWATER SYSTEM
DRAIN PLUG
WATER PUMP/FILTER
(IF EQUIPPED)
OIL FILL
DECK FITTINGS
FUEL FILL
DECK FITTING
(IF EQUIPPED)
MOTOR-WELL
HATCH
