Setup and installation

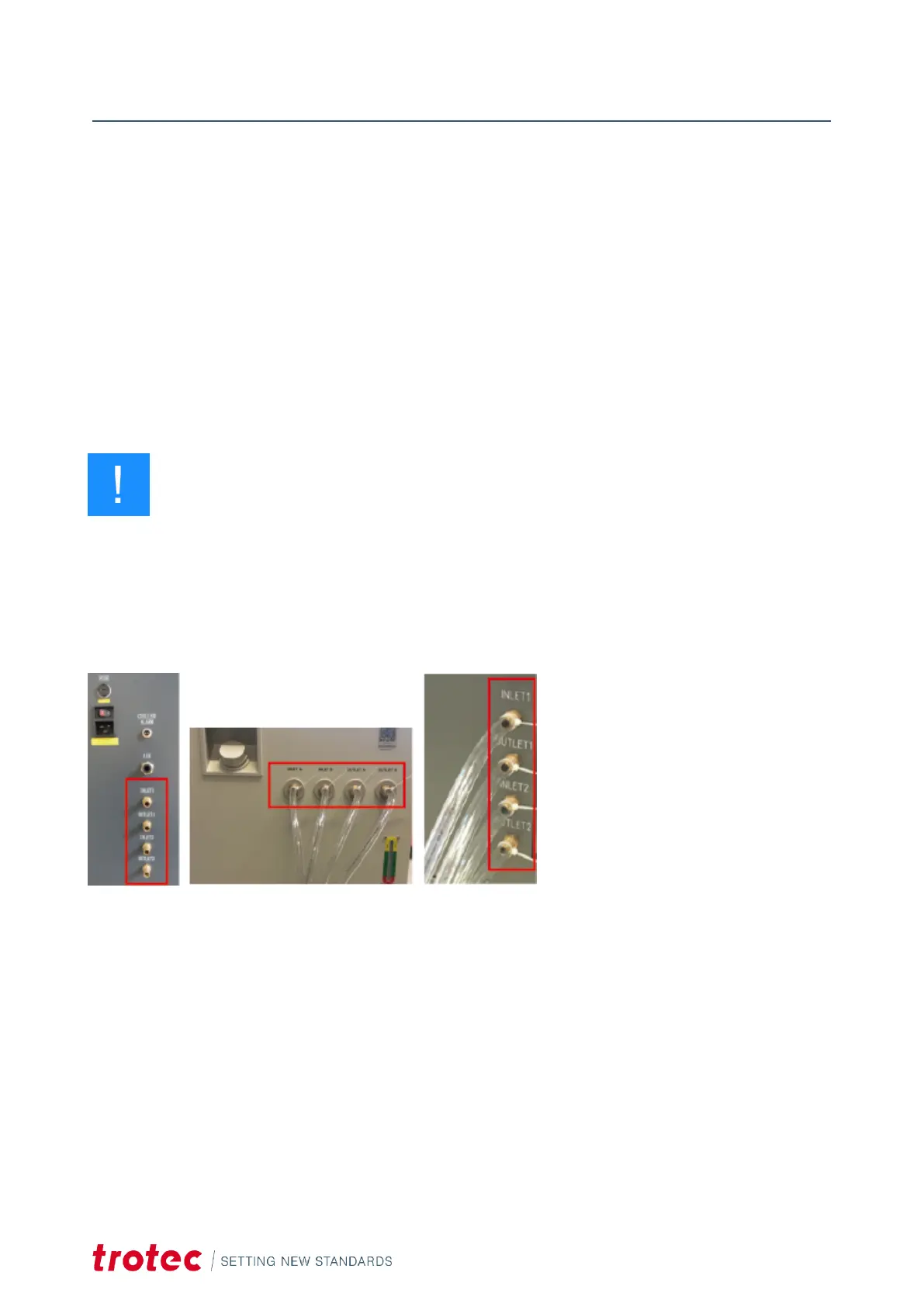

6.4.4 Connect the water cooling system
Components:
•
Two cooling circuits A and B on the water cooling system
•
Two cooling circuits INLET1 and INLET2 on the laser machine
•
Four water hoses
INLET1 used for single source machines.
INLET1 and INLET2 used for dual source machines.
Notice
Always connect the INLET input to the water cooling system.
The OUTLET output is connected to the laser source.
The OUTLET in the cooling system is always the INLET on the laser source.
Example:
INLET A to OUTLET1 - INLET B to OUTLET2
OUTLET A to INLET1 - OUTLET B to INLET2
1. Connect the hoses from the water cooling system to the laser unit (see example).
2. Secure the hose connections with cable ties (on the machine and on the water cooling system).
3. Fill the system with normal water of at least 18°C (64,4°F).
4. Check the water level on the level indicator.
