Trotec Q500 User Manual

Operation

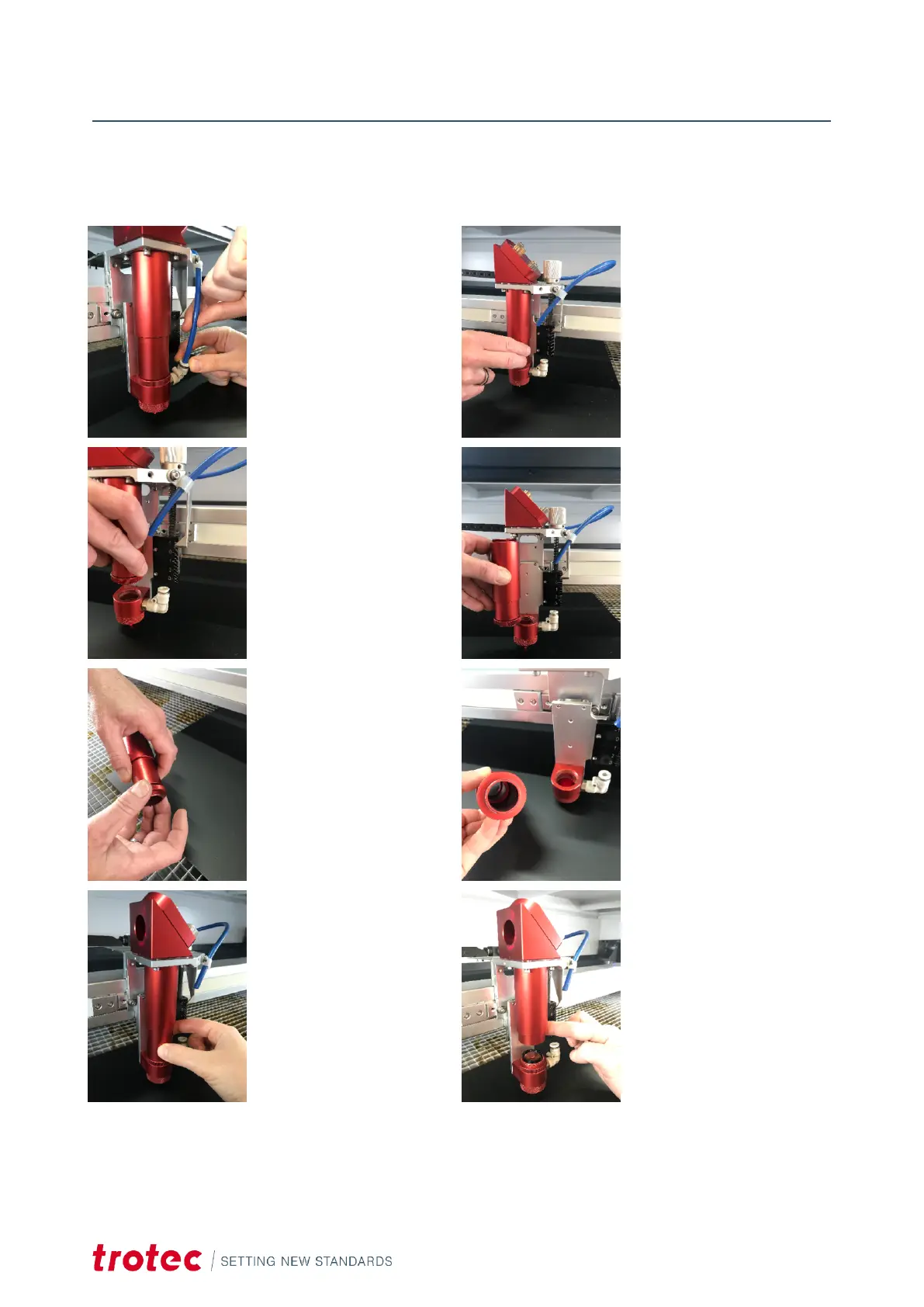

7.5 Changing the lens
1. Remove the air assist
hose.
2. Open the thread on the
upper side.
3. Open the thread on the
bottom.
4. Remove the tube from
the laser head.
5. Unscrew the lens holder
from the tube.
6. Here: Take the 2.0 inch
lens out of the socket.
You can clean or replace
the lens.
7. Put the tube back on the
laser head.
8. Insert the lens.
53
