Trotec Q500 User Manual

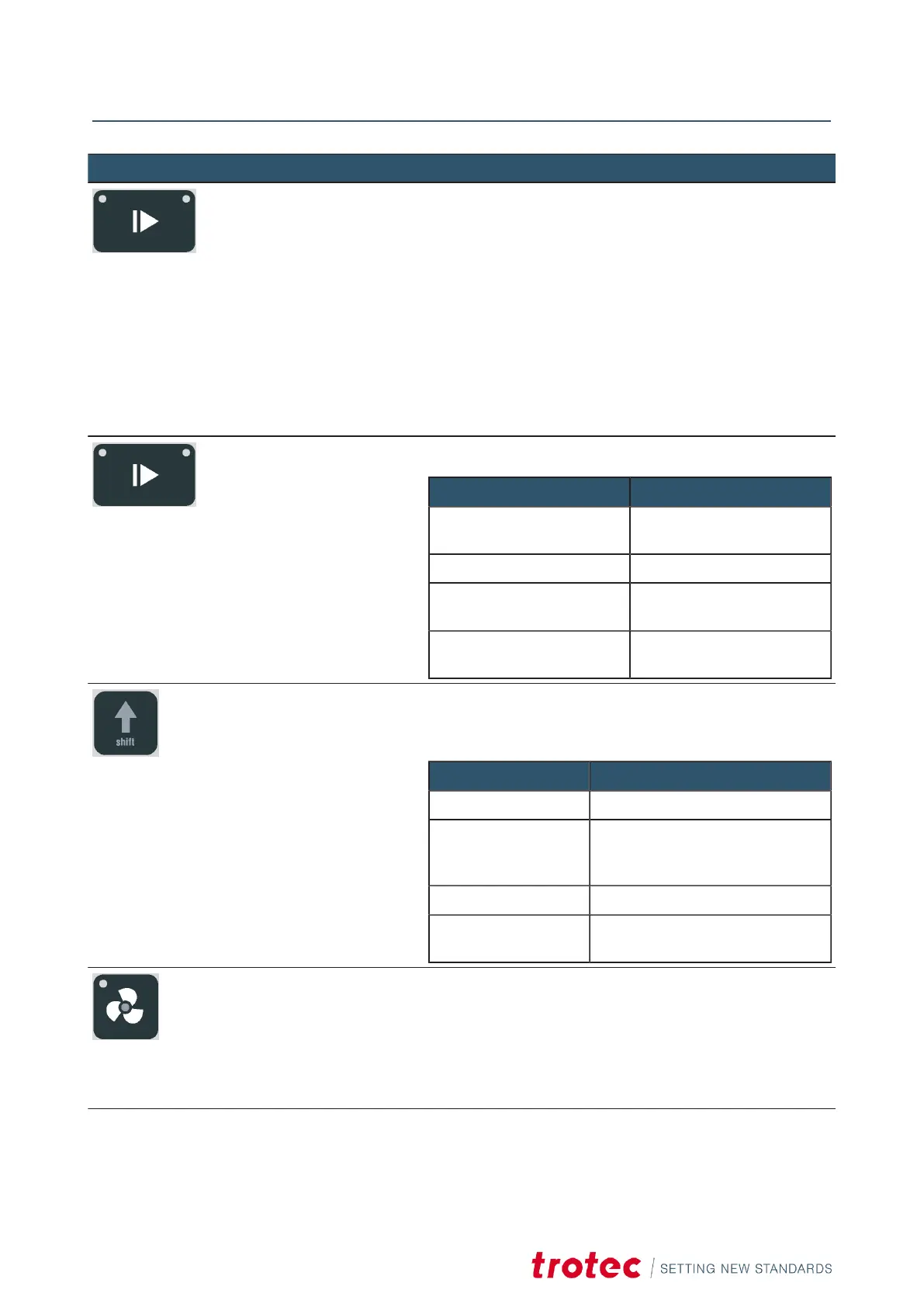

Operation
Image Button Description
Start/Pause/Repeat-button Start:
•
Press this button to start a job. The job has to be on the
plate in JobControl®.
Pause:
•
Press this button to pause the job (LED On) which is
currently being processed. Press this button again to
continue the job (LED Off).
Repeat:
•
Press this button aer a job was finished to repeat the actual
job.
Status LEDs Meaning of the LEDs:
LED Description
Green, flashing slowly (0.5 Hz) All covers are closed. Machine
is ready.
Green, flashing fast (2 Hz) Minimum one cover is open.
Blue + Green, permanent Data available. Pause-mode
active.
Green, permanent Job is running. Processing and
receiving data.
Shi-button Second operating level for further operation. Press the Shi-
button simultaneous with the buttons below to activate the
following function:
Button Description
Shi + Exhaust Air assist On/Off.
Shi + Laser head X/Y Laser head moves fast to
corresponding end position (X- or Y-
position).
Shi + Standby Keypad locked/unlocked.
Shi + Home Deactivates temporary home
position.
Exhaust-button
•
Press this button to switch the exhaust On/Off.
LED On: Exhaust active.
LED Off: Exhaust deactivated.
Aer the laser process is completed, the exhaust switches
off aer some seconds ("Time to hold" in JobControl®)
automatically or when you press the button.
