Maintenance

7. Retighten the thread. 8. Reconnect the air assist

hose.

8.3.4 Mirror

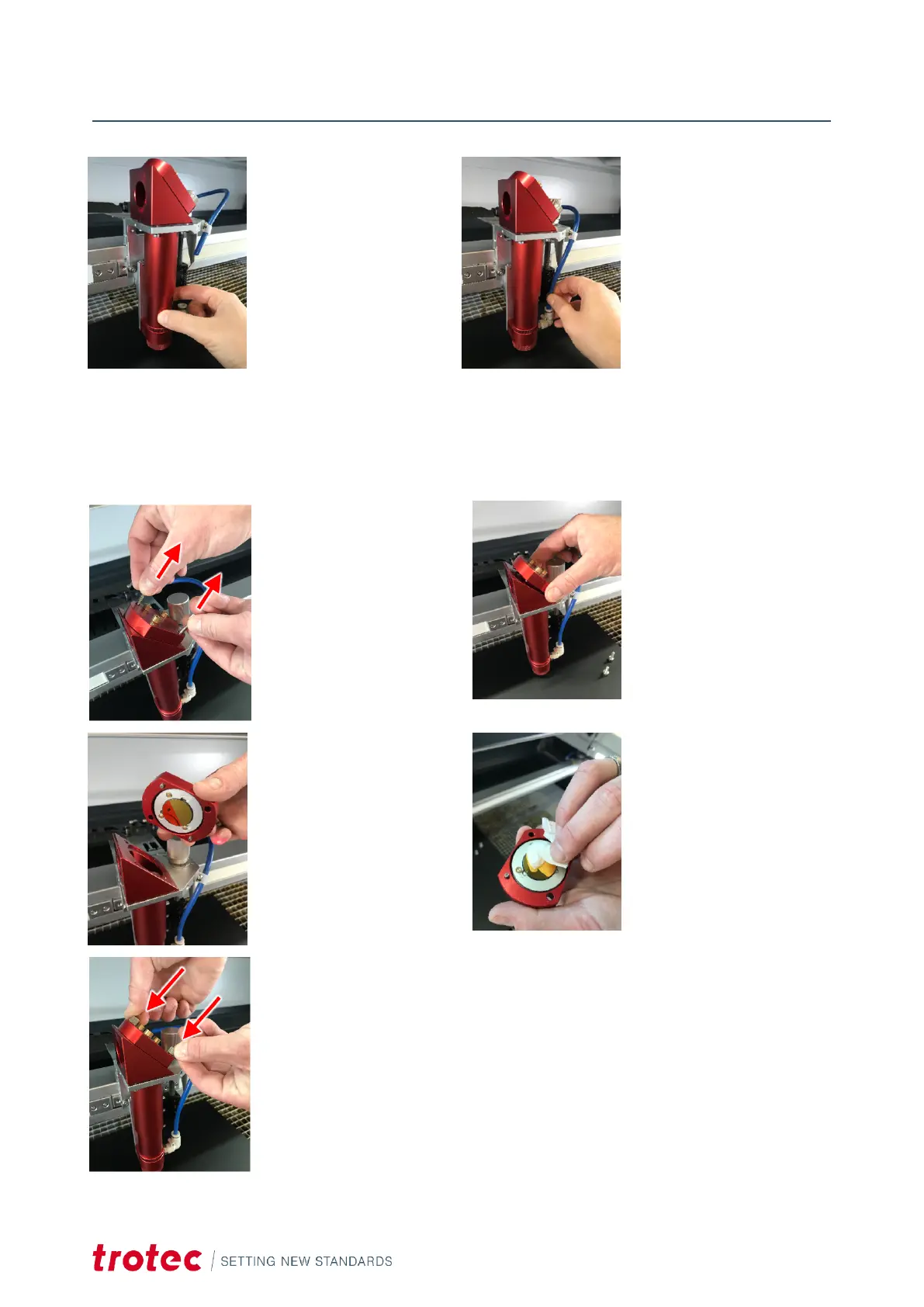

CLEANING MIRROR #3 ON THE WORKING HEAD

1. Unscrew the two screws

by hand.

2. Loosen the mirror by

wiggling it slightly.

3. Remove mirror. 4. Clean the mirror carefully.

5. Mount the mirror again

and fix it with screws.

Table of Contents5
