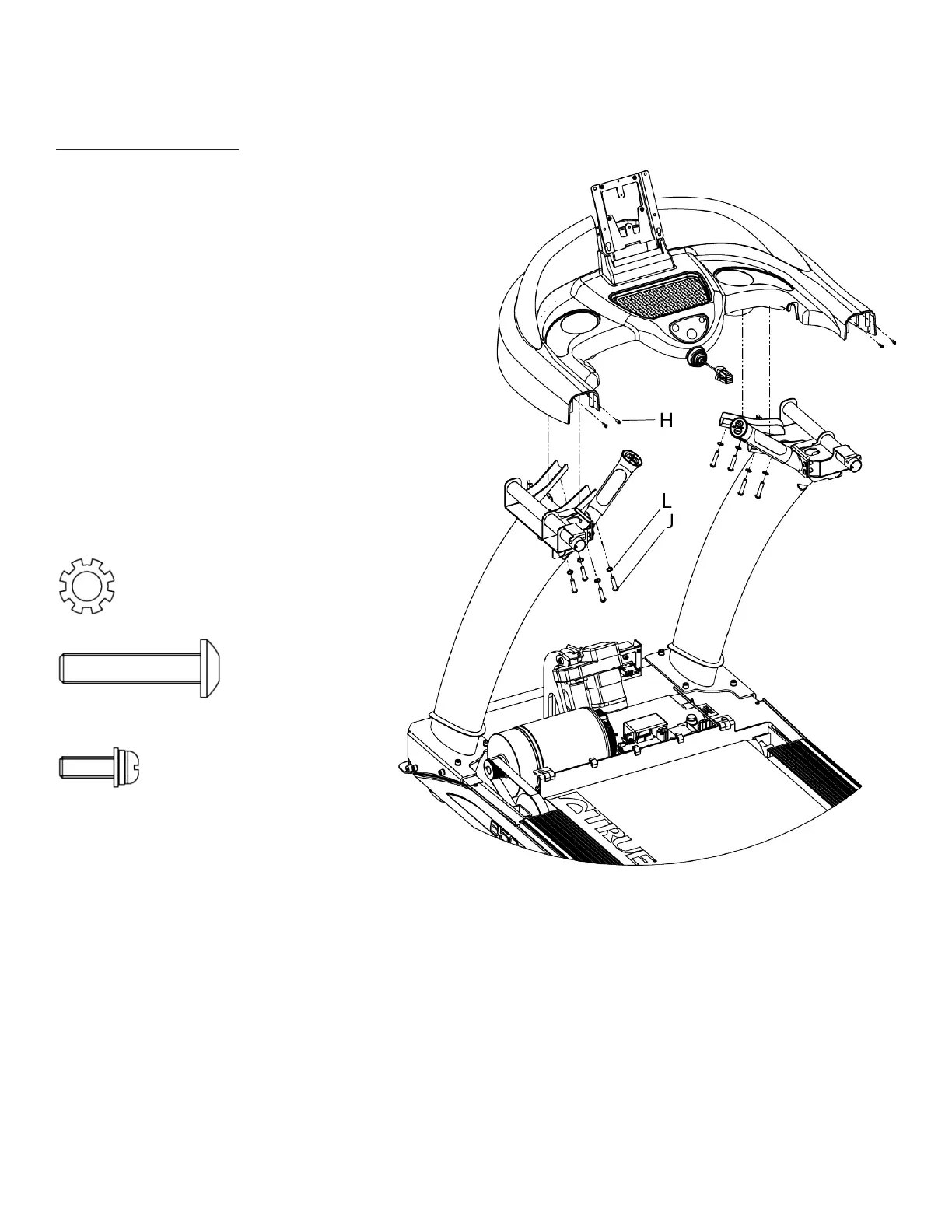

TREADMILL ASSEMBLY STEPS:
Step 6 Console Rack:
a) Install the console rack onto the pedestals
by resting the console rack tubing on top of
the pedestal tubing cradles.
CAUTION: Do not pinch cabling during
this step.
b) Install 8 Bolts 5/16”-24 x 1-1/2” and 8
external tooth lock washers through the
pedestal tubing cradle and console rack, but
do not tighten.
c) Tighten all hardware from steps 2a to 6c.
d) Install 4 M4 x 12 (H) screws and tighten.
Hardware Required:
8 Lock Washer M8
8 Bolts ⁄”-24 x 1-½”
4 Screws M4 x 12
