CHAPTER 2: ASSEMBLY GUIDE
Truetness.com / 800.426.6570 / 636.272.7100 19 of 171
TREADMILL ASSEMBLY STEPS:

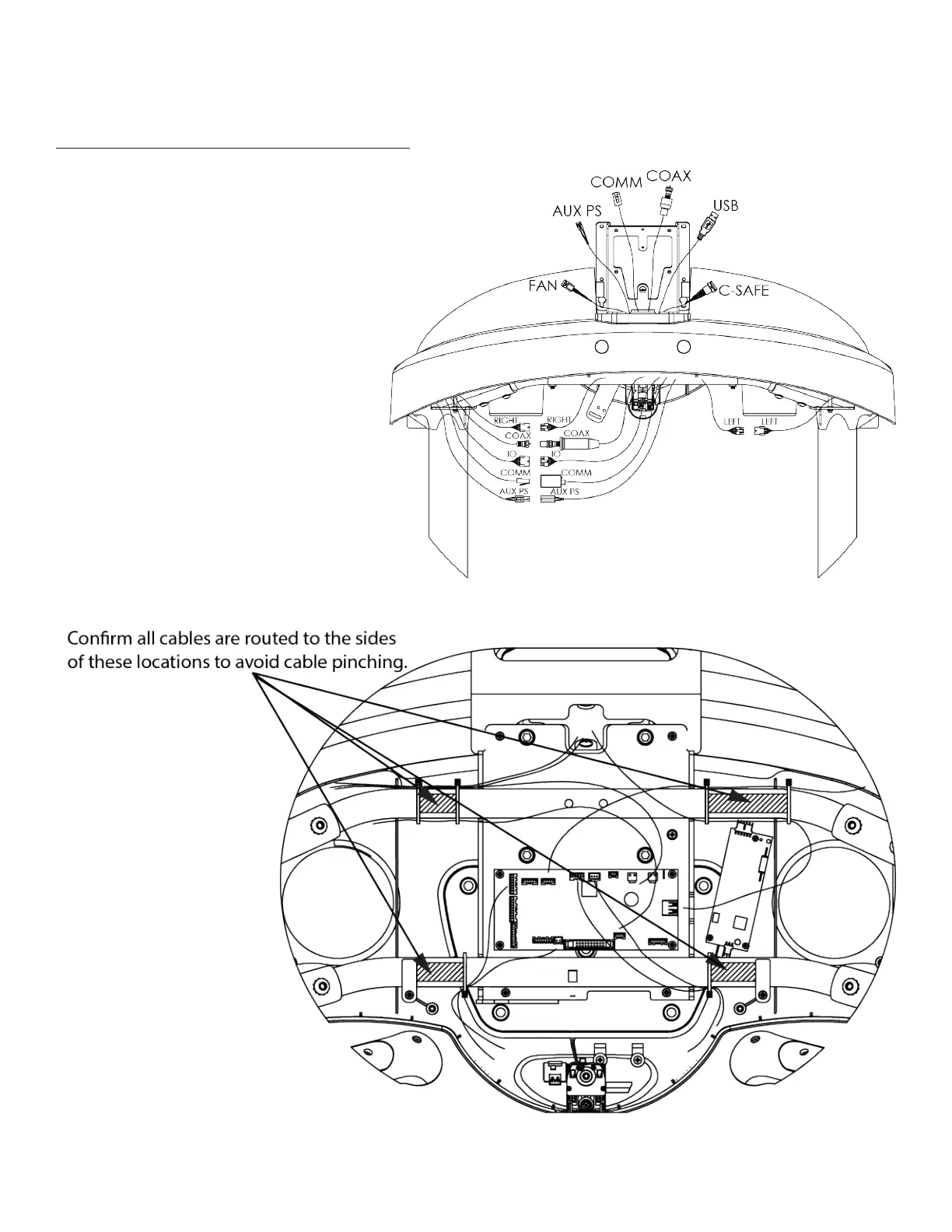

Step 7 Console Rack Cable Connections:
a) Connect all wires from the le and right
pedestal arms to the wires from the upper
console rack cover as shown (all cables will
be connected regardless of console option).
*Do not over torque the coax TV cable.
b) Route all cables into the underside of
the upper console rack cover as shown to
prevent wire pinching when installing the
bottom console rack cover.
