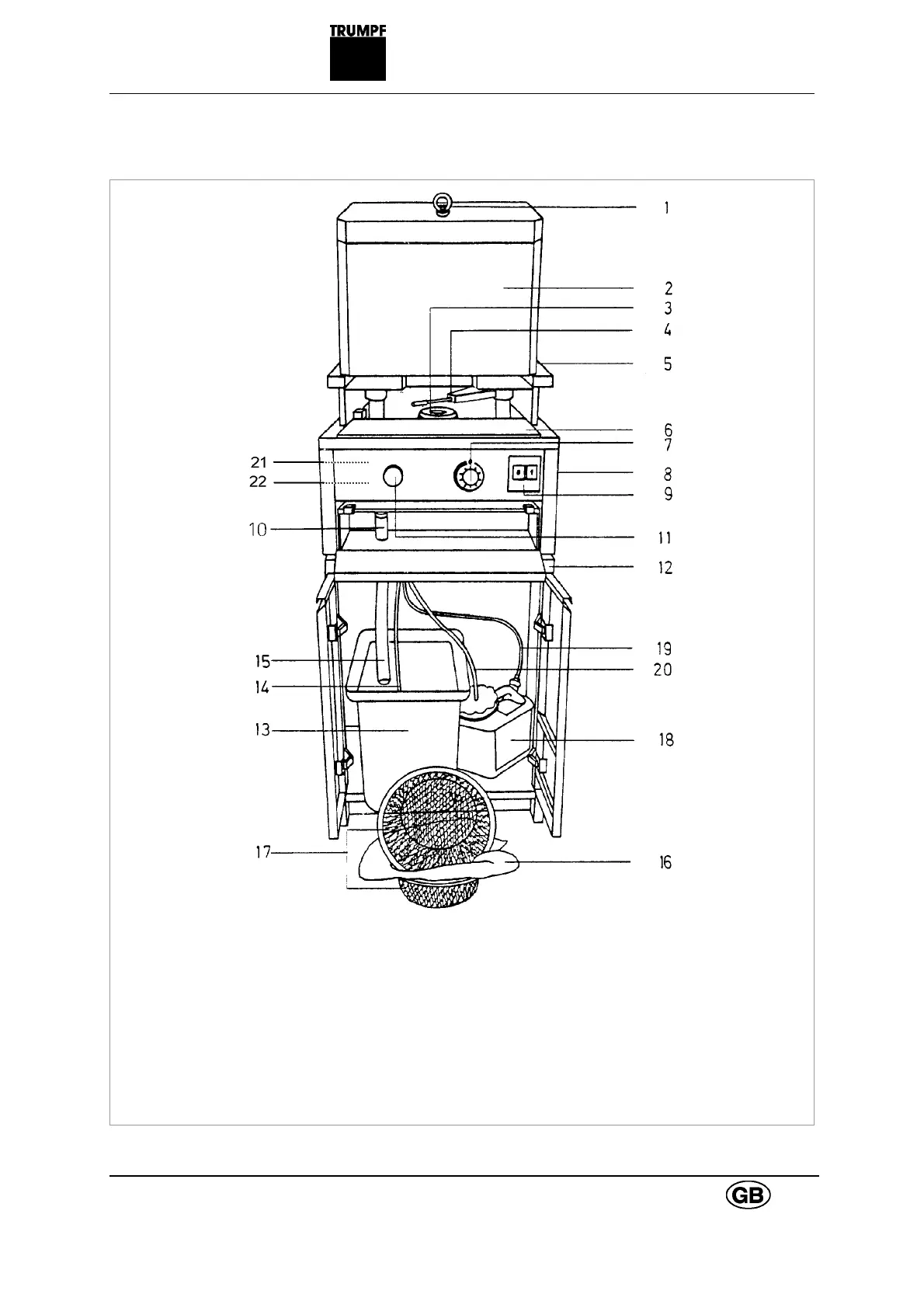

2. Description
1 Lifting eyebolt 8 Indicator pin 17 Filter screens
2 Enclosure/top 9 Main switch OFF/ON 18 Hydraulic oil container
3 Rotary tool holder 10 Return flow pipe 19 Return hose for hydraulic oil
4 Locating stop 11 Feed button 20 Intake hose for hydraulic oil
5 Hole for brake 12 Base 21 Throttle valve
release 13 Grinding coolant container 22 Relief valve
6 Flap 14 Grinding coolant intake hose
7 Rotary knob for setting 15 Return flow/grinding coolant
the regrind amount 16 Filter paper
quicksharp Fig. 9885
B60E quicksharp 7
