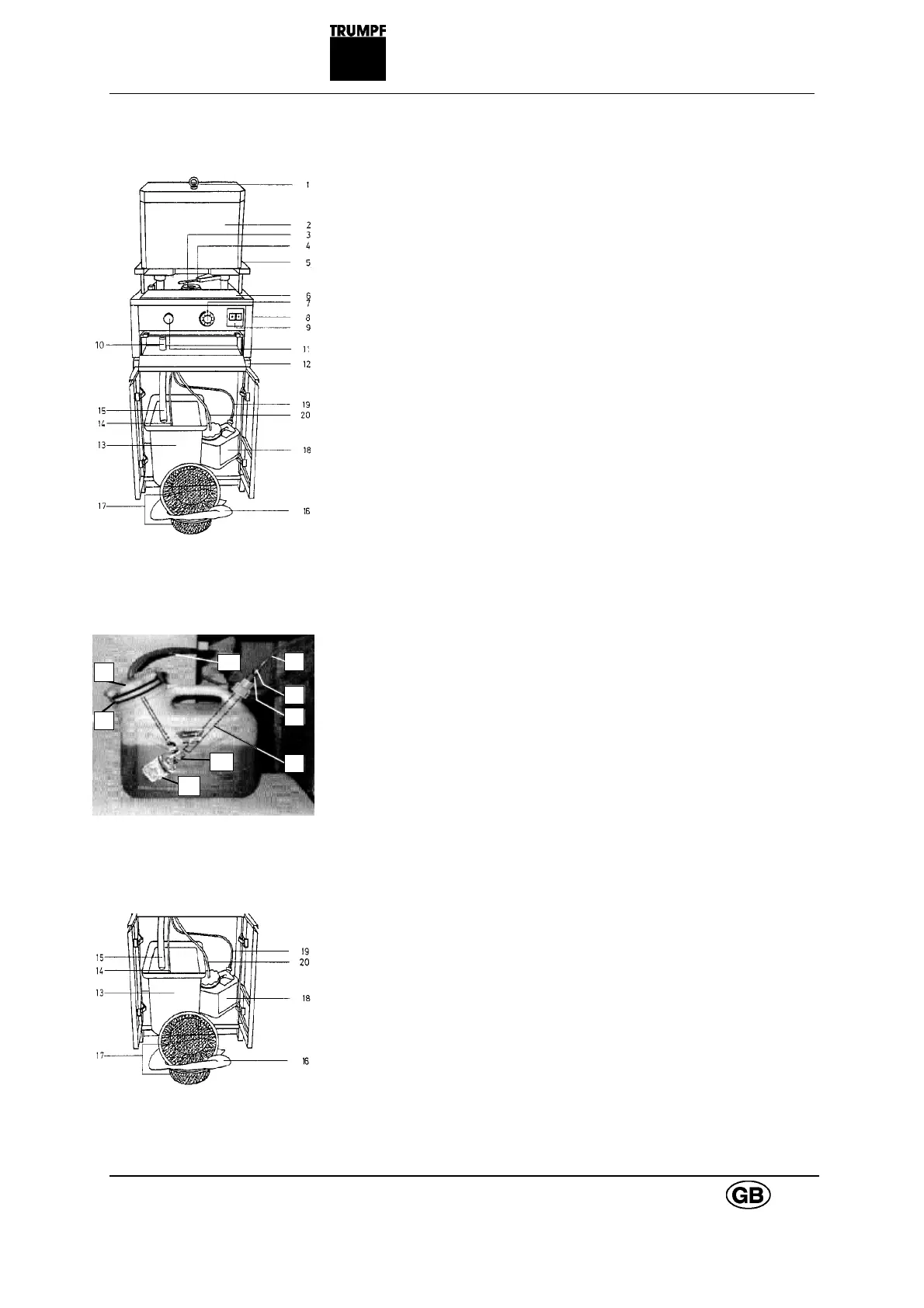

3. Installation
• Check consignment for completeness and for any signs of damage
incurred during transit
• Use the lifting eyebolt (1) when lifting the unit (screw the bolt in all
the way). For safety reasons, the grinding machine and the base
should be transported separately
• Take care not to damage the hoses (14, 15)
Installation:
• Run the power cable to the rear of the machine
• Run the transparent return hose (15) through the base and clamp
to the return pipe (10) with a hose clip
• Run hoses (14, 15, 19, 20) through the cabinet top to the
containers (see connections below)
• Remove the lifting eyebolt after transport has been completed
• Open flap (6), release brake (5) (insert a hexagon screwdriver
SW6 in the tapped hole to push the pin back)
• Lift the top (2) and remove the transport safety (Styrofoam)
• Lower the top (2) approximately 50 mm, swing locating stop (4) to
the right and close the flap (6)
3.1 Hydraulic oil container
5
4
7
1
8
9
6
3
2
Connection:
• Unscrew the nut (7) and remove the cap (1)
• Attach the hose (4) and tighten the nut (7)
• Open lid (2), remove end plate (3)
• Insert hose (5) without filter (6) through lid (2)
• Mount filter (6) on hose (5)
• Add hydraulic oil as specified in "maintenance"
• Replace the lid (2)
3.2 Grinding coolant container
Prepare the grinding coolant:
• Mixture ratio: 1 : 30 (0.6 - 0.7 liters of Henkel P3-MULTAN 41-3 to
20 liters of water)
• Clean container (13) and fill it with grinding coolant
• Run intake hose (14) with filter (6) into the container
• Insert the filter paper (16) between the filter screens (17)
• Hang the filter screens into the container; the return flow/grinding
coolant must reach into the filter screens
B60E quicksharp 9
