3.3 Power supply
The power supply plug should be attached to the connection cable by
an electrician in compliance with local regulations. Voltage is factory-
set by the manufacturer for the requirements in the country of
operation.

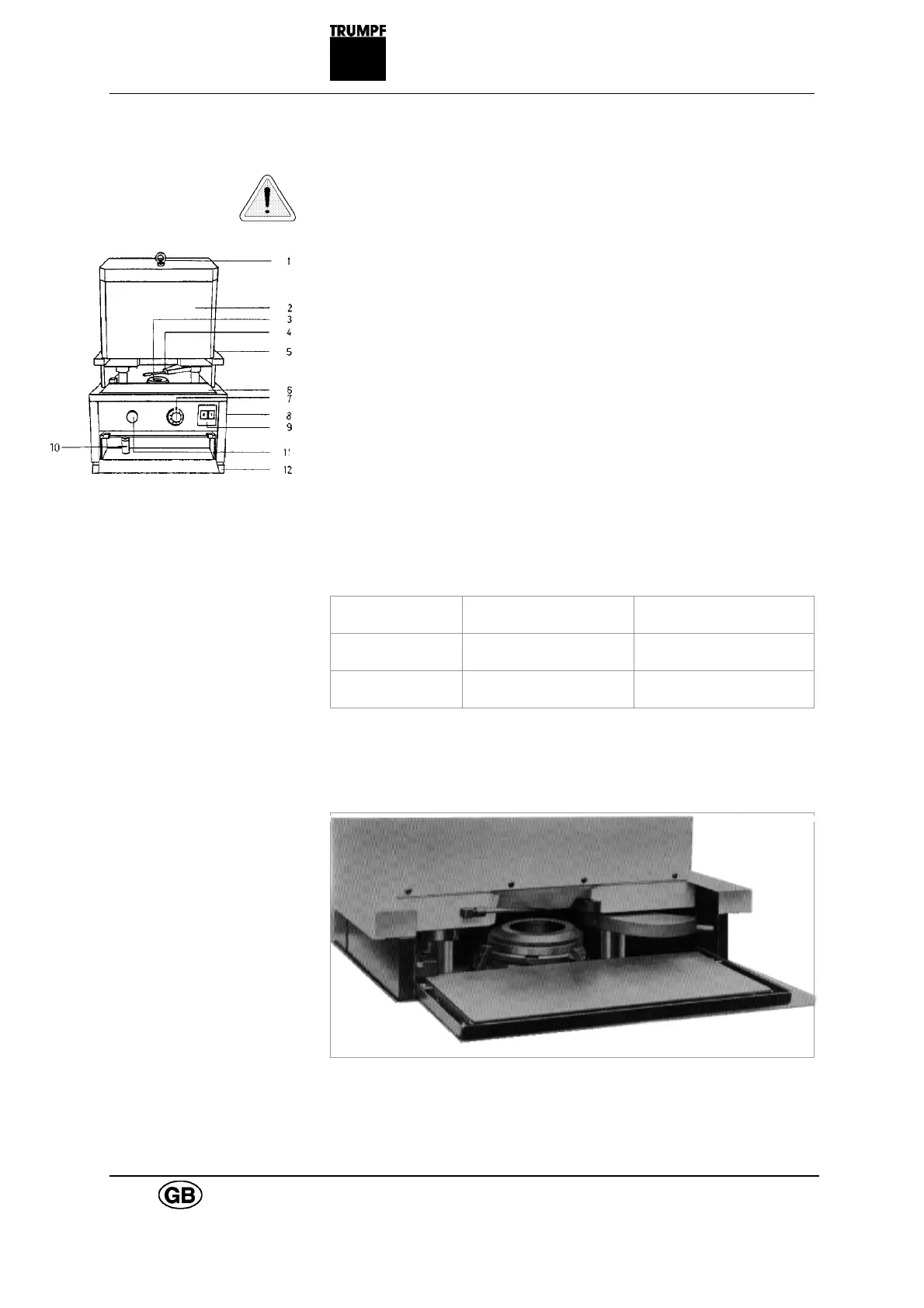

Check direction of rotation of the hydraulic pumps:
• Remove enclosure (2)
• Main switch (9) ON
• Both pumps must rotate in direction of arrow (clockwise)
• Pull the feed button (11) - the green indicator pin (8) must pop out
4. Operation
Basics Sharpen your tools regularly
Recommended regrinding amount: 0.1 - 0.2 mm
Approximate values The approximate values below serve as an aid for correct setting:
Punch
*
Die
∅ (mm)/Size 30 76 I II
Scale value 1-2 2-3 2-3 3-4
*
not Whispertools
4.1 Regrinding dies
Regrinding dies Fig. 9892
Procedure • Insert die in a suitable adapter ring.
• Lock die in adapter ring onto the rotary tool holder with the
clamping jaws (loosen hex. screw on jaws and tighten)
10 quicksharp B60E
