5.3 Adjusting the locating stop
When? The locating stop must be reset every time the grinding wheel is
replaced or sharpened:
2
1
3
1 Setting screw
2 Grub screw
3 Handle

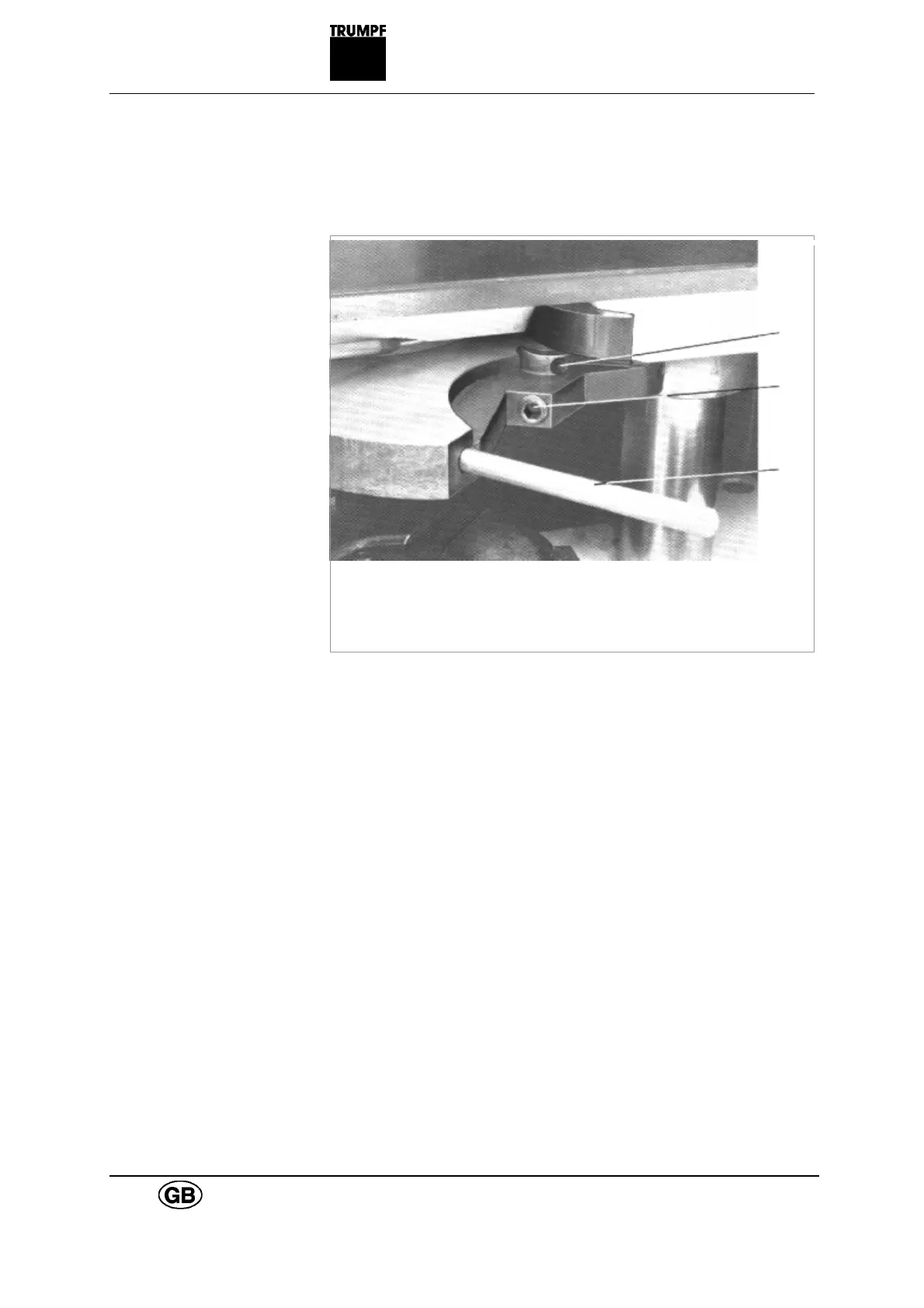

Locating stop Fig. 9898
Procedure • Loosen grub screw (2)
• Insert hex. screwdriver SW6 into one of the holes on the setting
screw (1) - then turn setting screw to the left until the locating stop
rests lightly against the grinding wheel
• With hex. screwdriver SW6 turn to the right by 1 mark of the scale
on the setting screw (1)
• Using a feeler gauge, make sure there is a 1/10 mm gap between
grinding wheel and locating stop; if necessary, readjust the setting
screw (1)
• To lock: Tighten grub screw (2) using an Allen key
5.4 Setting the feedrate
The feedrate is correctly set at the factory and should not be re-
adjusted. (Cycle time approx. 3 1/2 - 4 1/2 min).
If no other recourse is available, the feedrate can be set - at working
temperature - at the throttle valve located behind the back cover of the
machine using a spanner SW32.
16 quicksharp B60E
