Pos.-Nr. Mat.-Nr. Bezeichnung Dok.-Nr.
038446 GRUNDPLATTE 6840-U14
BASE PLATE
PLAQUE-SUPPORT
00525 100790 ZUGFEDER 1,2X10X23,2 6840-525
TENSION SPRING
RESSORT DE TRACTION
00526 059532 ZUGFEDER 3,2X14,8X147,5 6840-526
TENSION SPRING
RESSORT DE TRACTION
00559 000960 WEGESCHIEBER SGOW1E-RE-20
DIRECTIONAL SLIDE
VANNE A VOIES
00561 000958 HYDRAULIKZYLINDER 41.000.12.0/25
HYDRAULIC CYLINDER
CYLINDRE HYDRAULIQUE
00571 030511 DRUCKFEDER D-240
COMPRESSION SPRING
RESSORT HELICOIDAL
00574 061751 RUNDDICHTRING 20X5B
ROUND WASHER
JOINT TORIQUE
00576 029416 SCHNAPPER 80
LATCH
DECLIC
514 516 574 515 530
550
508
525
576
519
501
500
507
561
494
493
510
512
572
542
492
547
532
539
509
537
548
505
559
506
538
499
486

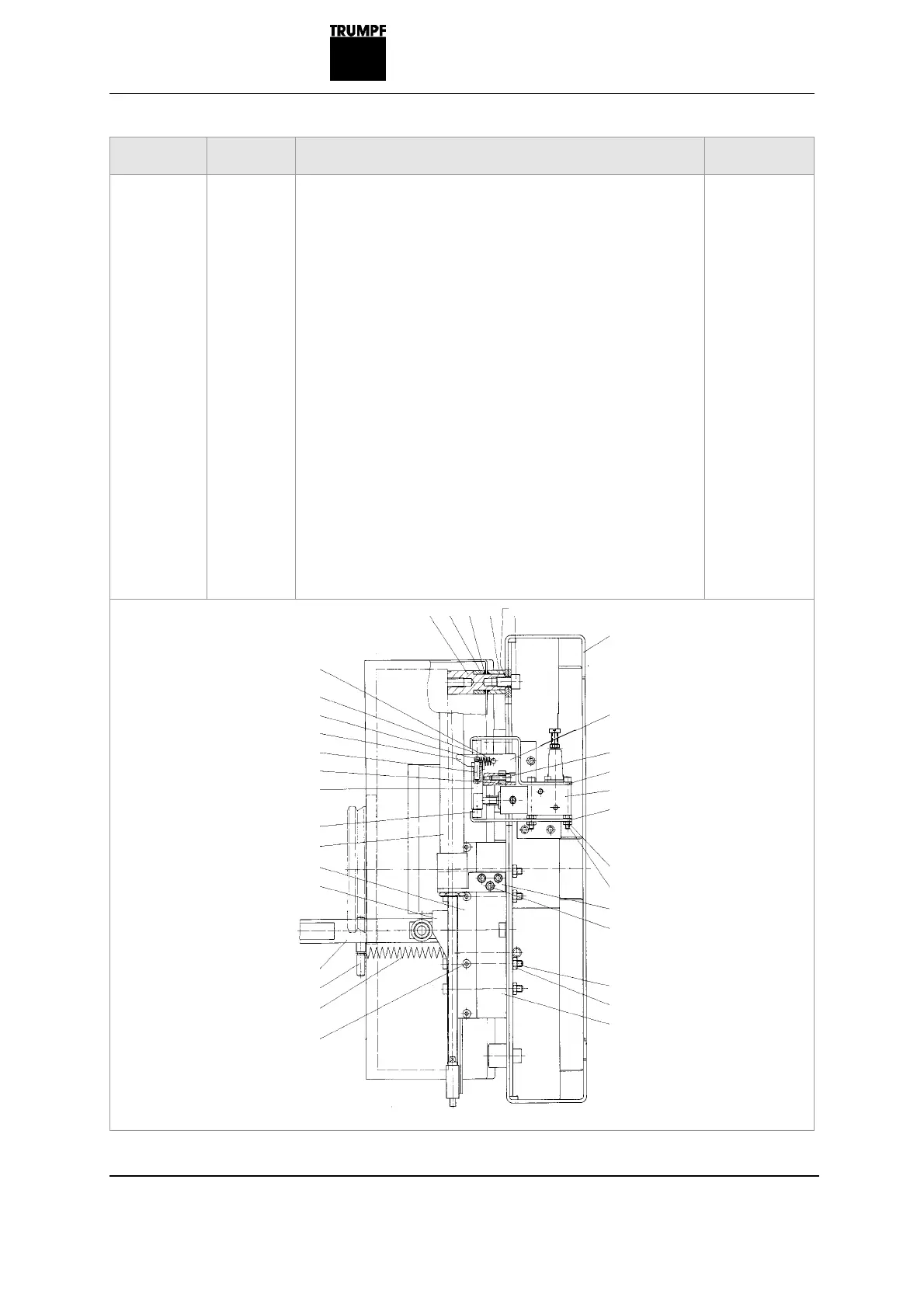

Fig. 24425
B60EL
Ersatzteilliste/Spare parts list/Liste de pièces de rechange 17
