• Scale section (1): for Whispertool punches max. 35 mm outer circle
diameter
• Scale section (2): for Whispertool punches with shear on one side
(35 - 72 mm outer circle diameter)
• Scale section (4): for Whispertool punches with roof-shaped shear
(outer circle diameter over 72 mm)
4
2
3
1
5

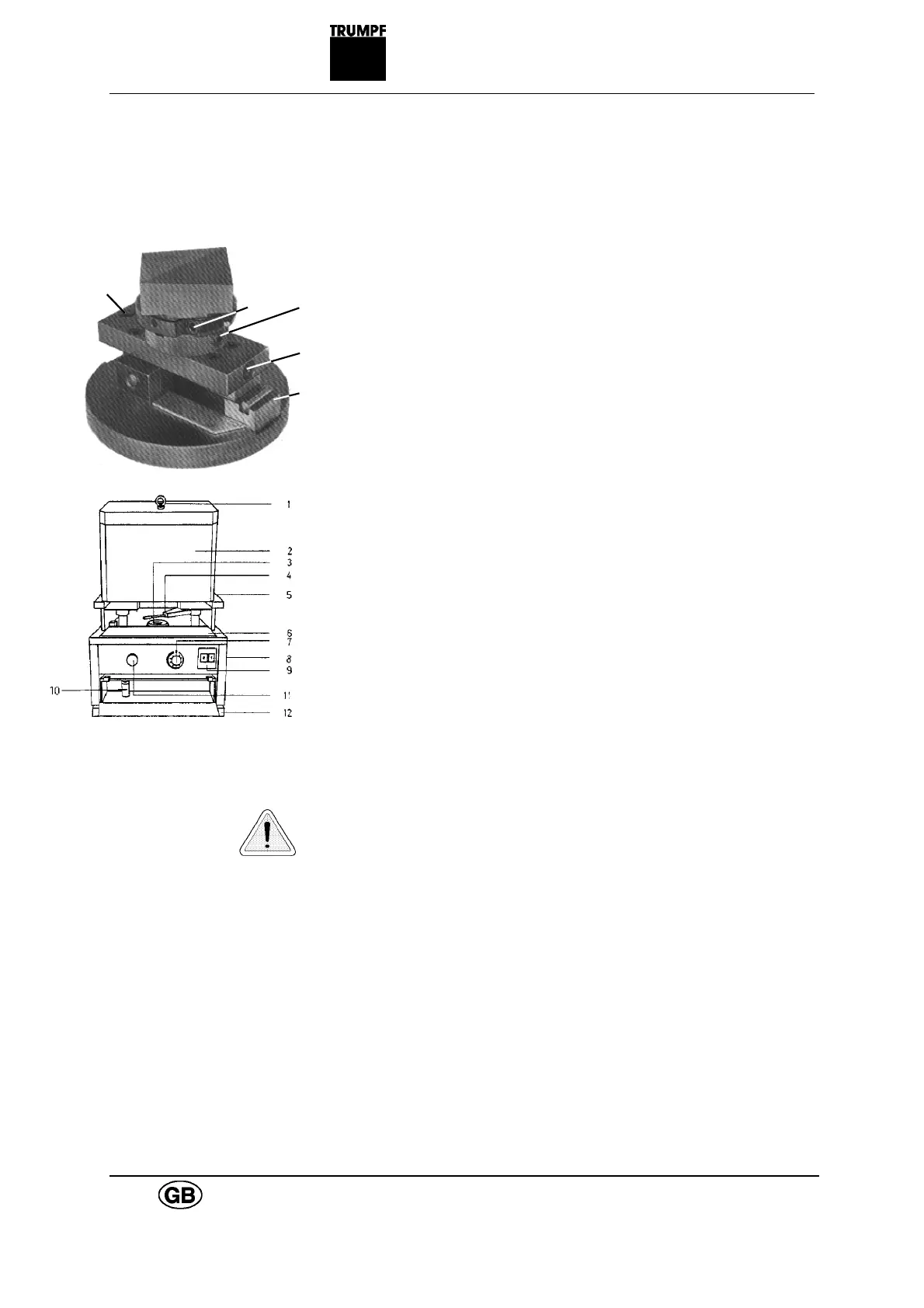

• Tighten screw (4)
• To make sure the punch face you want ground is exactly level, use
a height gauge
• Tighten screws (1, 2 and 5)
• Swing the locating stop (4) to the left; a certain amount of
resistance must be overcome when doing so; raise the top (2)
• Lock the punch grinding device on the rotary tool holder (3) with
the clamping jaws (loosen hex. screw on jaws and tighten)
• Lower the top until the locating stop rests on the punch - then
swing the stop back to the right
• Close flap (6); the machine cannot be started with the flap open
• Set the desired regrind amount at the rotary knob (7)
• Main switch (9) ON
• First pull, then press the feed button (11)
• Grinding takes place automatically - Roof-shaped punches must be
turned 180˚ in the grinding device; to do so, loosen screw (2, top
Fig.), turn by 4 notches, tighten screw (2)
• Main switch (9) ON
• First pull, then press the feed button (11) - grinding takes place
automatically. The quicksharp switches off automatically when the
grinding process is finished.
☞ Automatic grinding can be interrupted any time by pulling the
feed button (11).
As a visual aid, the green indicator pin (8) becomes visible at
the end of the automatic grinding cycle. The quicksharp
switches off automatically when the grinding process is
finished.
14 quicksharp B60E
