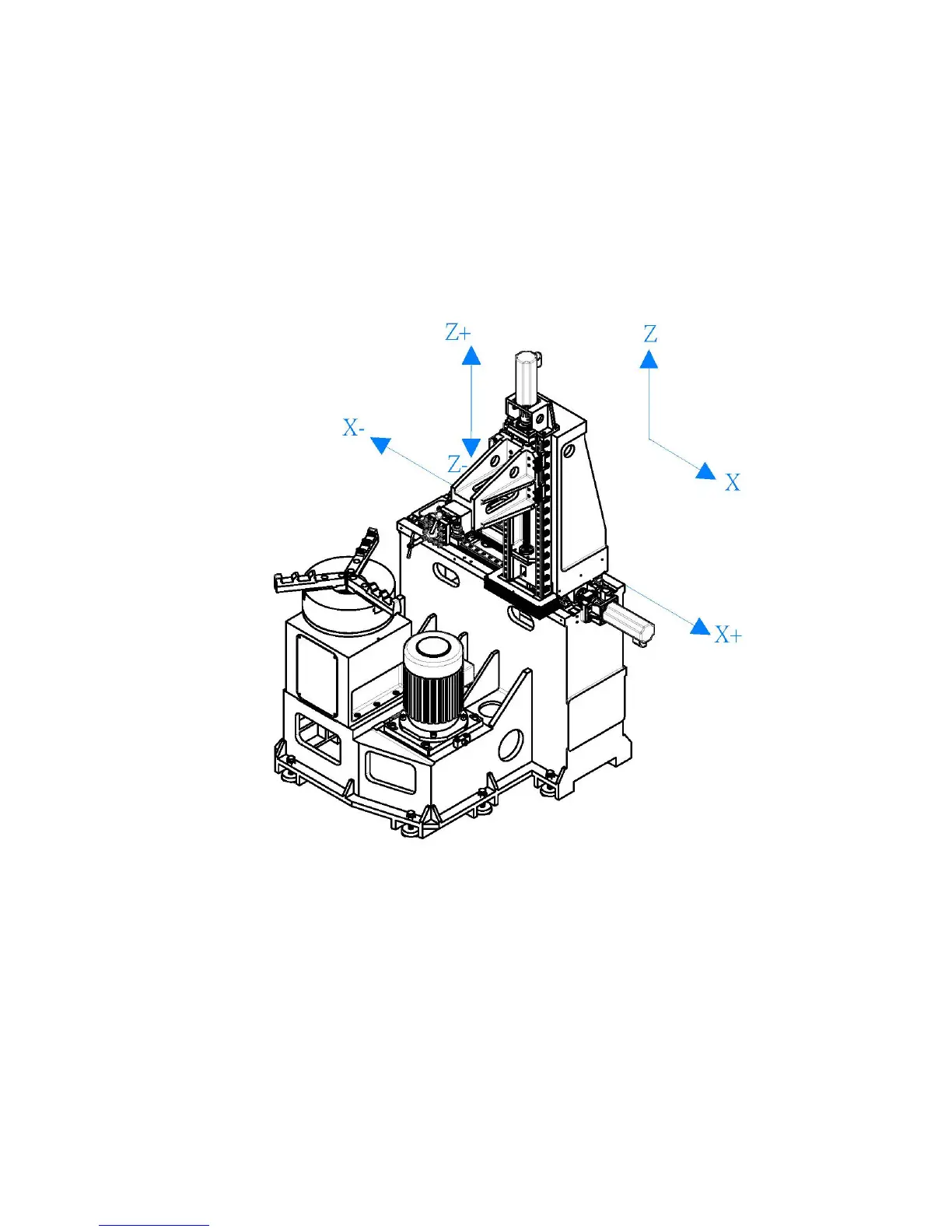

2.5 Mechanical Coordinate System
Axis-definitions are expressed in below:
X-axis: X-axis is the direction that tool post moves right/left; (+) for right movement and (-)
for left one.
Z-axis: Z-axis is the direction that tool post moves up/down; (+) for up movement and (-)
for down one. tool post
