Tryax TY30-VS - Installation and Levelling; Machine leveling adjustment

15
3.3 Installation and Levelling
3.3.1.Machine leveling adjustment

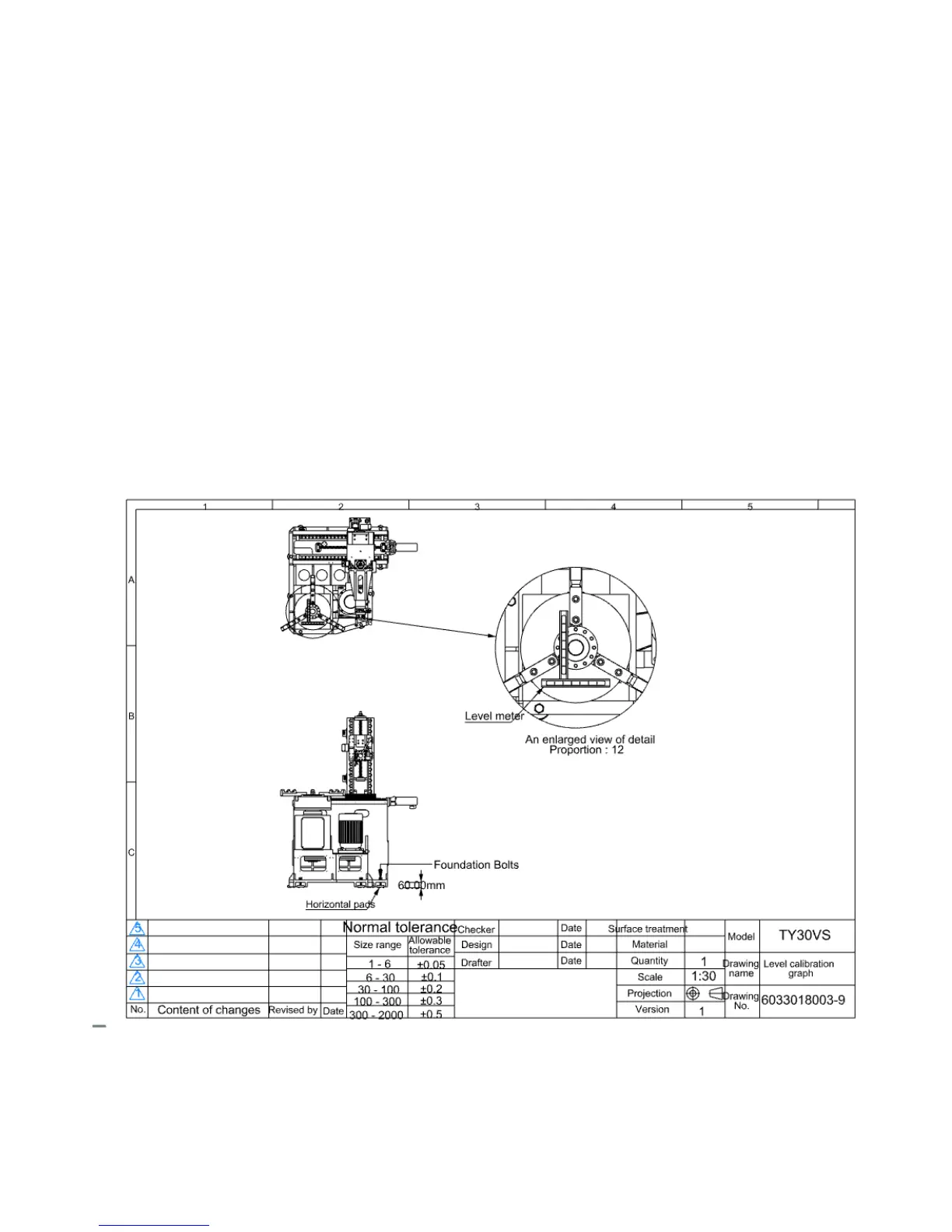

(1) Use the leveler 0.02 mm/m on the center of the chuck,fix the leveler on the X
axis direction and manualy turn the chuck, adjust the level of X axis until the air
bubble in the leveler is centered. Repeat for Z axis.
