14

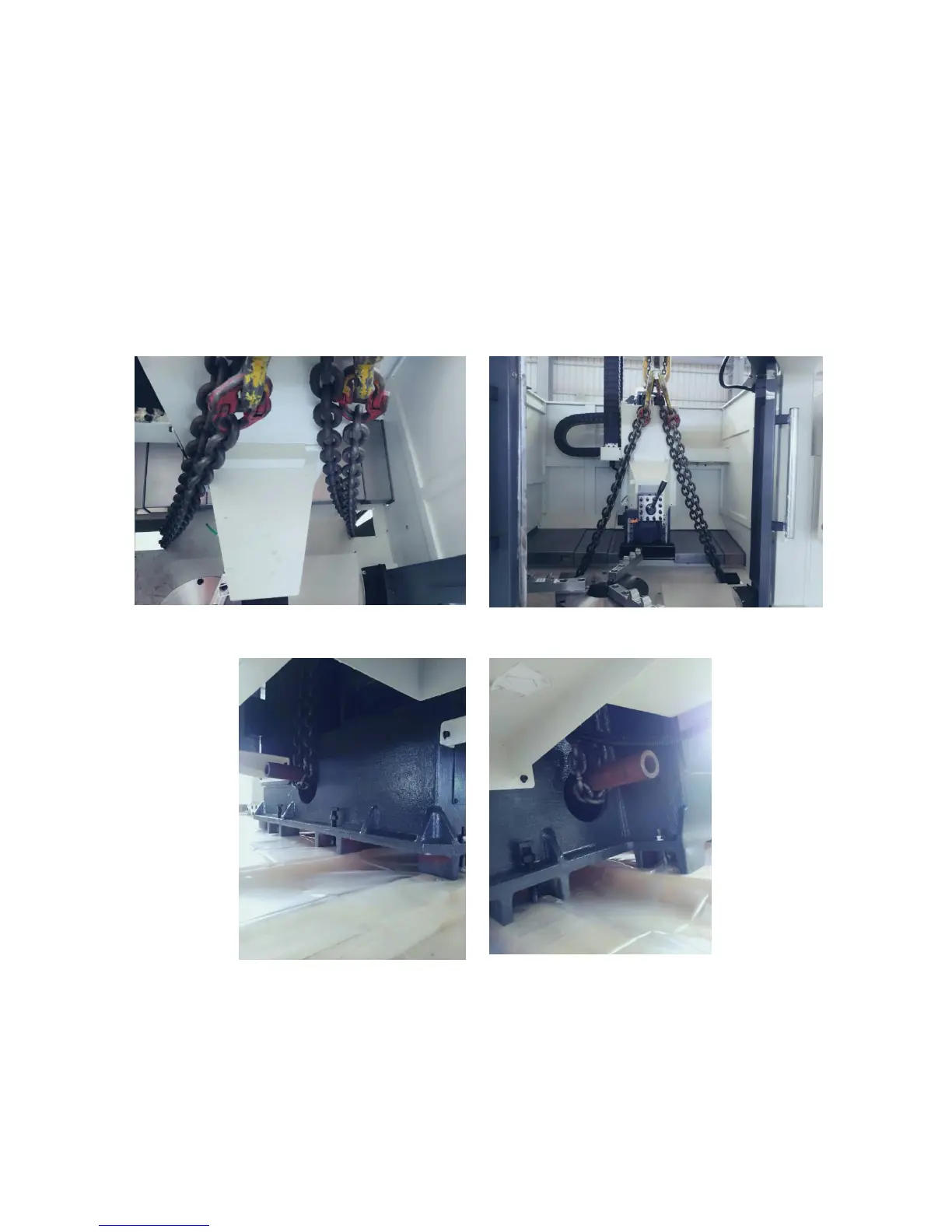

(2) Removing the machine from the pallet:
a. Remove the 2- covers in front of X axis cover.
Insert a steel bar inside the machine base. (See the figure below)
b. Pass a chain through the 2 openings and loop the chain around the steel bar
from both side of the machine.
c. Then the machine can be lifted.
d. Suitable protection should be used to prevent the chains damaging the paint
Finish of the machine.
.
