TSC DA310 Series - Product Features; Printer Standard Features

DA210/ DA310/ DA220/ DA320
Bar Code Printer Service Manual
10

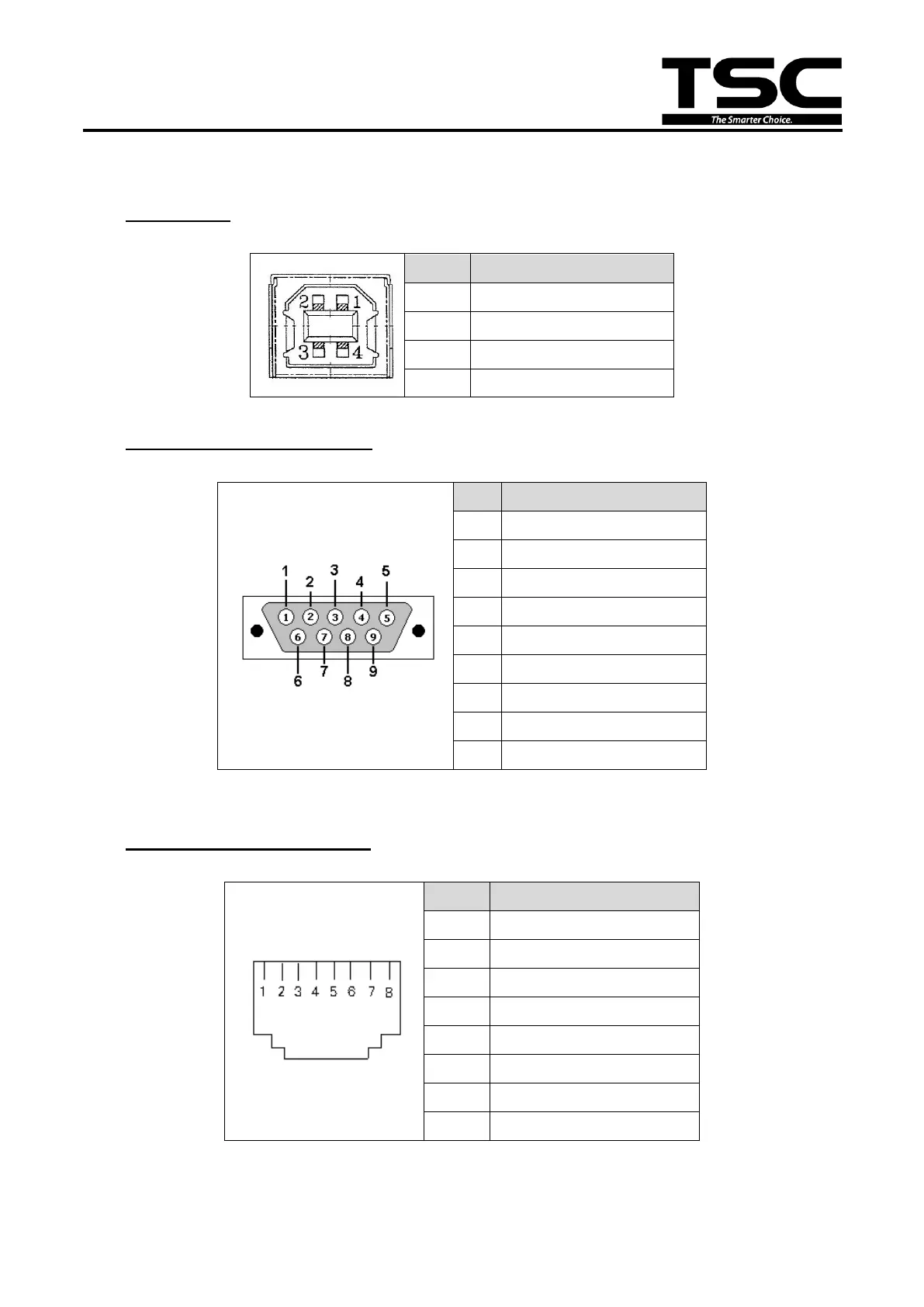

2.2 Pin Configuration
USB Device
PIN
CONFIGURATION
1
N/C
2
D-
3
D+
4
GND
RS-232C (For DA220 series)
PIN
CONFIGURATION
1
+5 V
2
TXD
3
RXD
4
CTS
5
GND
6
RTS
7
N/C
8
RTS
9
N/C
Ethernet (For DA220 series)
PIN
CONFIGURATION
1
Tx+
2
Tx-
3
Rx+
4
N/C
5
N/C
6
Rx-
7
N/C
8
N/C
