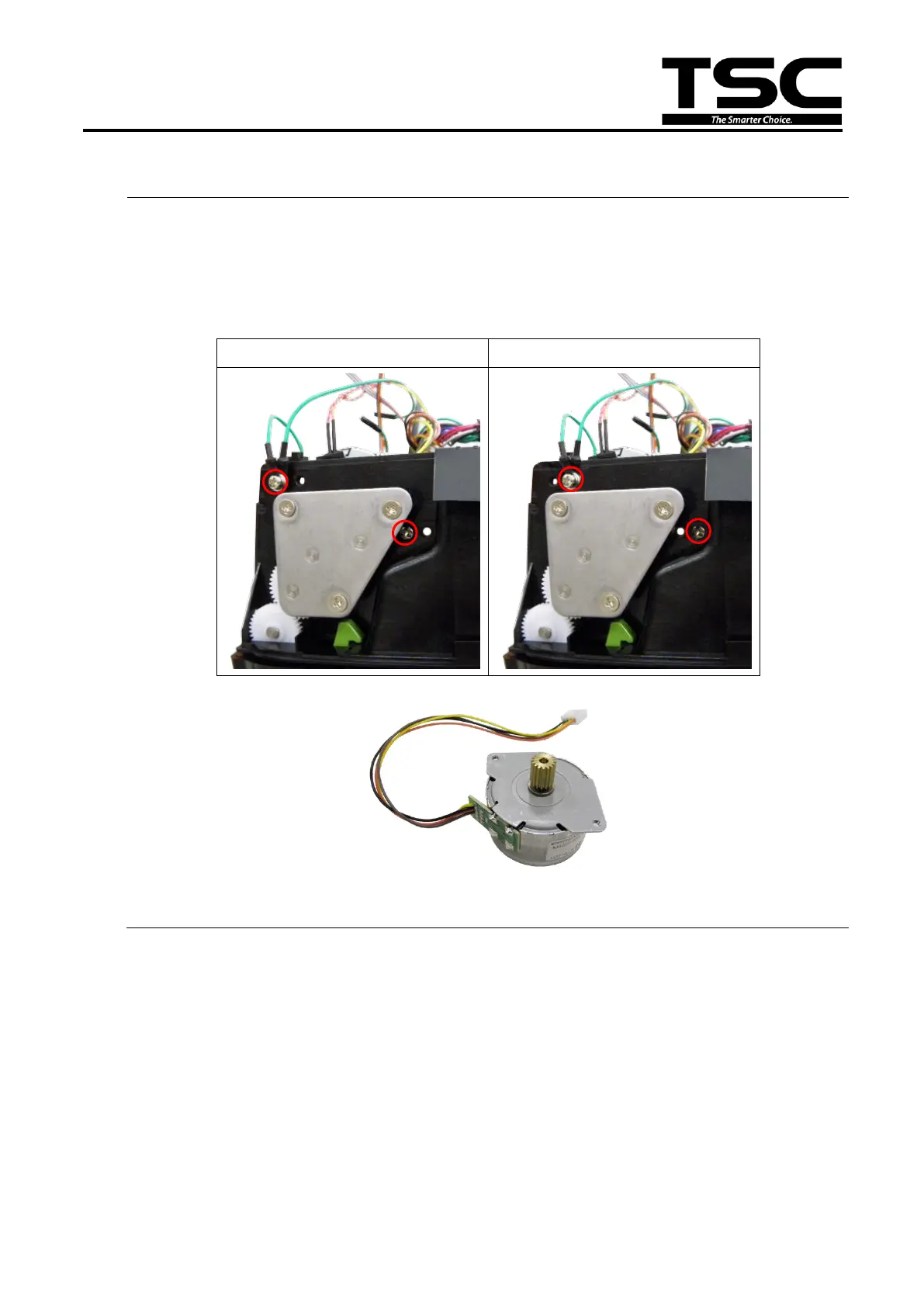

3.4 Replacing the Stepping Motor Module
1. Please refer to the section 3.3 to remove the lower cover.
2. Remove two screws as shown to replace the stepping motor. Please note that the
screwed positions of 203 dpi and 300 dpi are different. (The gear driver system of
203 dpi and 300 dpi is different.)
DA210/ DA220 (203 dpi)
DA310/ DA320 (300 dpi)
3. Reassemble the parts in the reverse procedure.

TSC DA310 Series Specifications

General

Resolution	203 dpi
Memory	4 MB SDRAM
Interfaces	USB 2.0, Serial (RS-232), Ethernet
Interface	USB 2.0, Serial (RS-232), Ethernet
Supported Barcode Types	Code 39, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, PDF417, Data Matrix, QR Code
Operating Temperature	41°F to 104°F (5°C to 40°C)
Storage Temperature	-40 ~ 60 °C (-40 ~ 140 °F)
Humidity	20% to 85% RH (non-condensing)
Power Supply	100-240V AC, 50/60Hz
Current Consumption	2.5A
