TSC DA310 Series Service Manual

DA210/ DA310/ DA220/ DA320
Bar Code Printer Service Manual
34

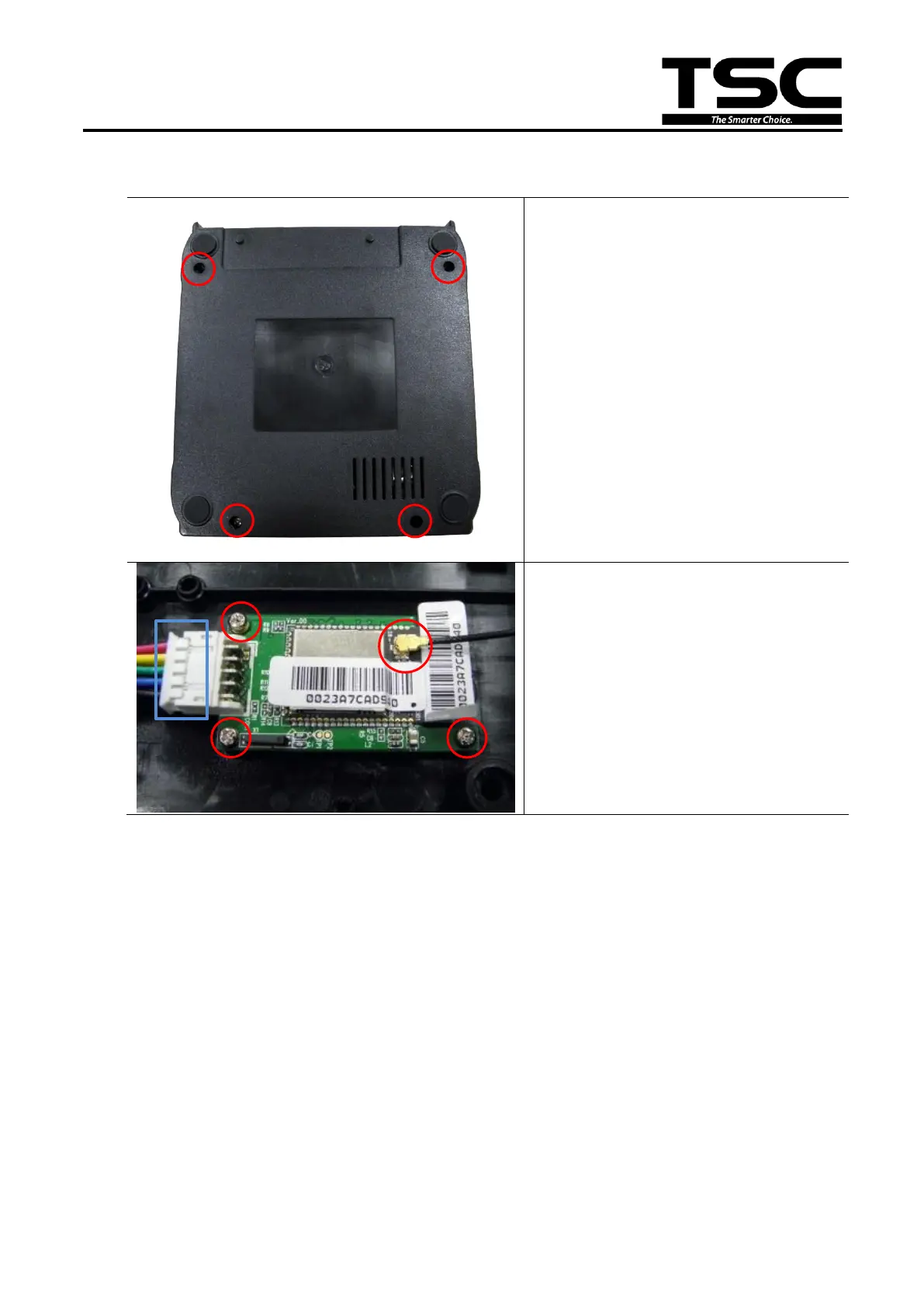

3.12 Replacing the Wi-Fi Module (Option for DA220 series)
1. Turn the printer upside down
and remove four screws on the
printer lower cover.
2. Disconnect all connectors on
the main board.
3. Disconnect the antenna on
Wi-Fi module carefully.
4. Disconnect the connector and
remove the three screws on
Wi-Fi module to replace it.
5. Reassemble the parts in the
reverse order.

TSC DA310 Series Specifications

General

Resolution	203 dpi
Memory	4 MB SDRAM
Interfaces	USB 2.0, Serial (RS-232), Ethernet
Interface	USB 2.0, Serial (RS-232), Ethernet
Supported Barcode Types	Code 39, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, PDF417, Data Matrix, QR Code
Operating Temperature	41°F to 104°F (5°C to 40°C)
Storage Temperature	-40 ~ 60 °C (-40 ~ 140 °F)
Humidity	20% to 85% RH (non-condensing)
Power Supply	100-240V AC, 50/60Hz
Current Consumption	2.5A
