TSC DA310 Series Service Manual

DA210/ DA310/ DA220/ DA320
Bar Code Printer Service Manual
12
3. MECHANISM
Please turn off the power switch and unplug the power adapter before replacing parts.

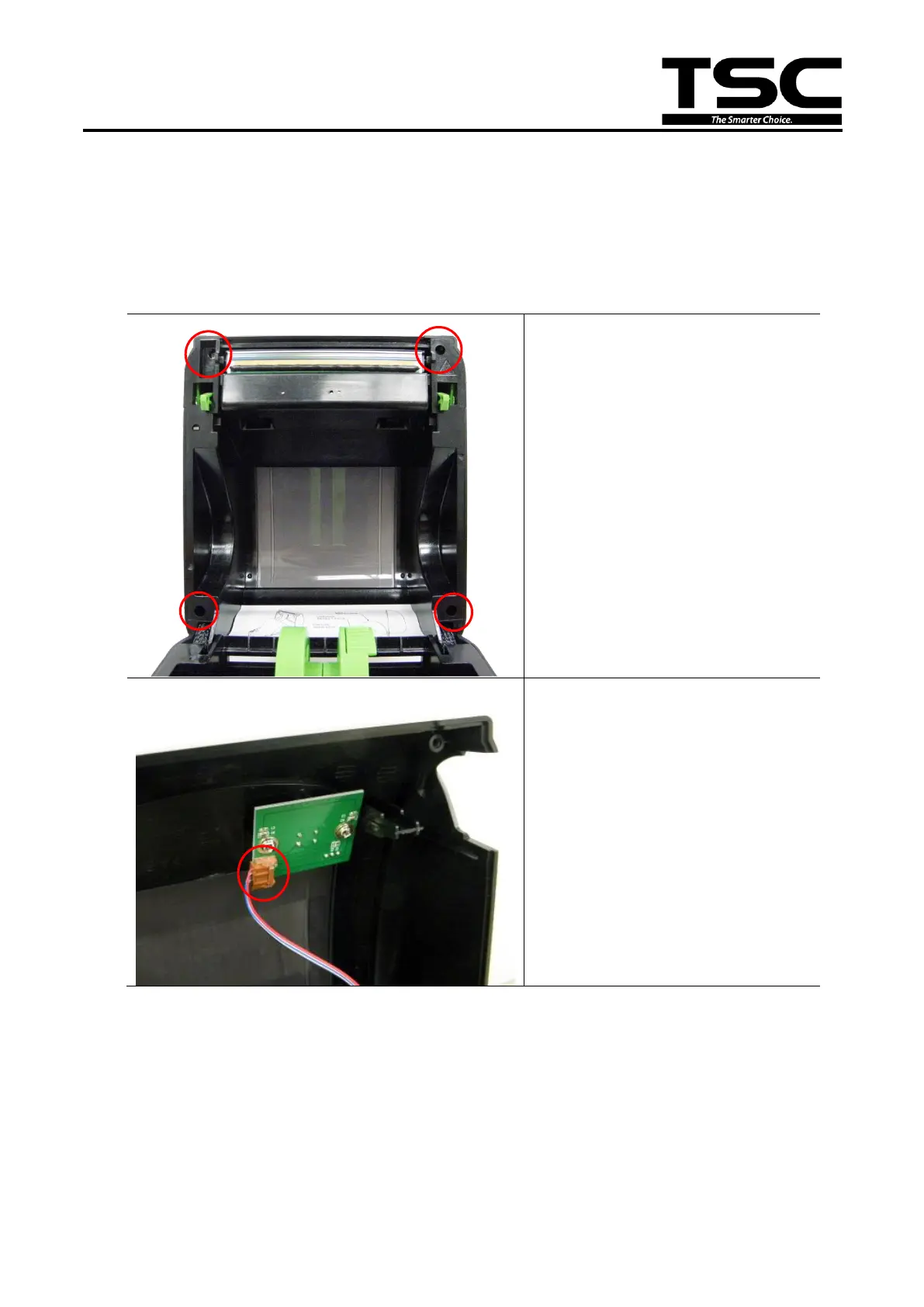

3.1 Replacing the Top Cover Assembly
1. Open the printer top cover by
pressing up the top cover
open tabs located on each
side of the printer and lifting
the top cover to the maximum
open angle.
2. Remove four screws on the
lower inner cover.
3. Disconnect the connector on
key pad assembly.

TSC DA310 Series Specifications

General

Resolution	203 dpi
Memory	4 MB SDRAM
Interfaces	USB 2.0, Serial (RS-232), Ethernet
Interface	USB 2.0, Serial (RS-232), Ethernet
Supported Barcode Types	Code 39, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, PDF417, Data Matrix, QR Code
Operating Temperature	41°F to 104°F (5°C to 40°C)
Storage Temperature	-40 ~ 60 °C (-40 ~ 140 °F)
Humidity	20% to 85% RH (non-condensing)
Power Supply	100-240V AC, 50/60Hz
Current Consumption	2.5A
