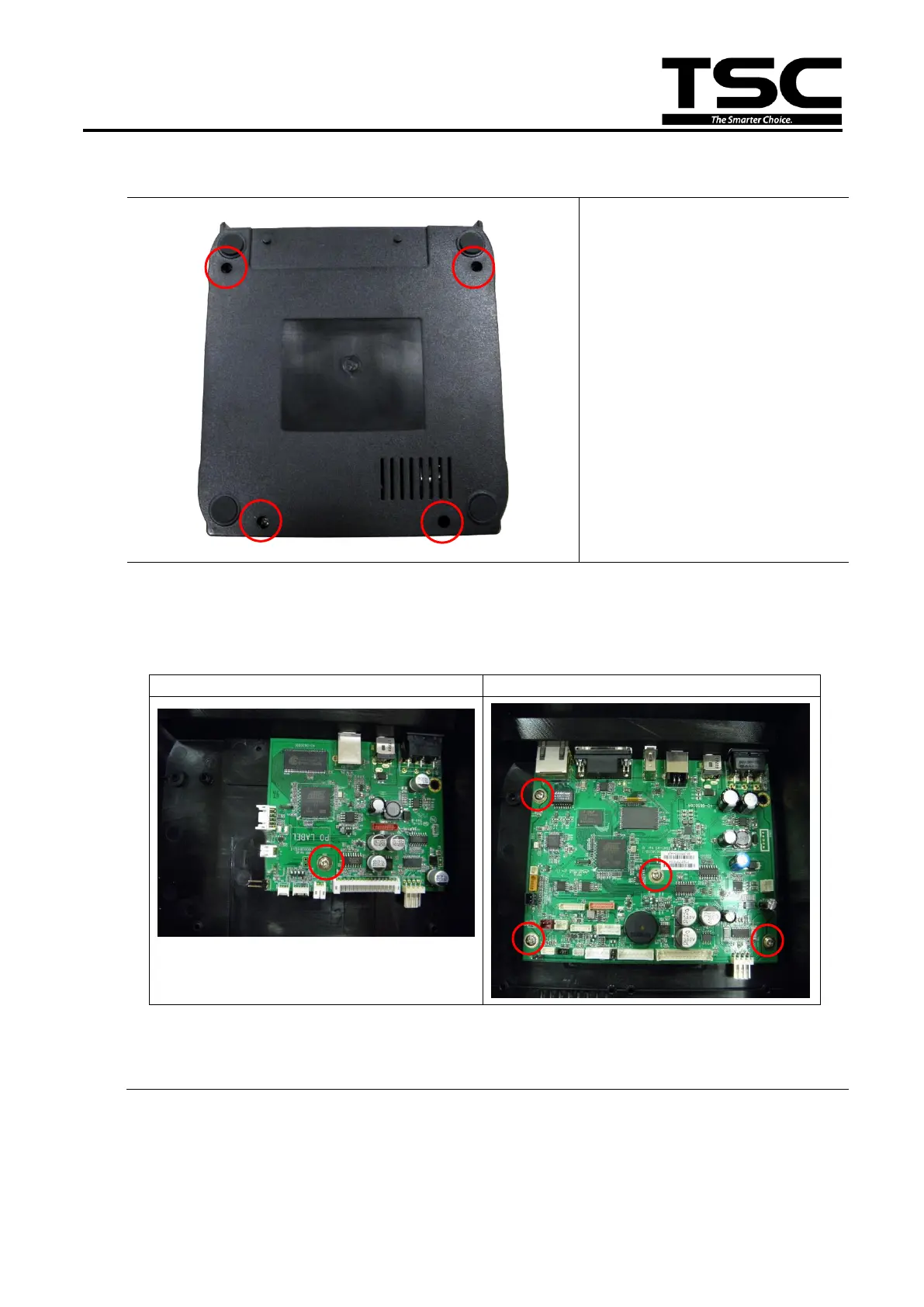

3.3 Replacing the Main Board Assembly
1. Remove four screws on the
printer lower cover.
2. Disconnect all connectors on the main board.
3. For DA210 series, remove one screw to replace the main board assembly.
For DA220 series, remove four screws to replace the main board assembly.
DA210/DA310 series
DA220/DA320 series
4. Reassemble the parts in the reverse procedure.

TSC DA310 Series Specifications

General

Resolution	203 dpi
Memory	4 MB SDRAM
Interfaces	USB 2.0, Serial (RS-232), Ethernet
Interface	USB 2.0, Serial (RS-232), Ethernet
Supported Barcode Types	Code 39, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, PDF417, Data Matrix, QR Code
Operating Temperature	41°F to 104°F (5°C to 40°C)
Storage Temperature	-40 ~ 60 °C (-40 ~ 140 °F)
Humidity	20% to 85% RH (non-condensing)
Power Supply	100-240V AC, 50/60Hz
Current Consumption	2.5A
