Bar Code Printer Service Manual
17

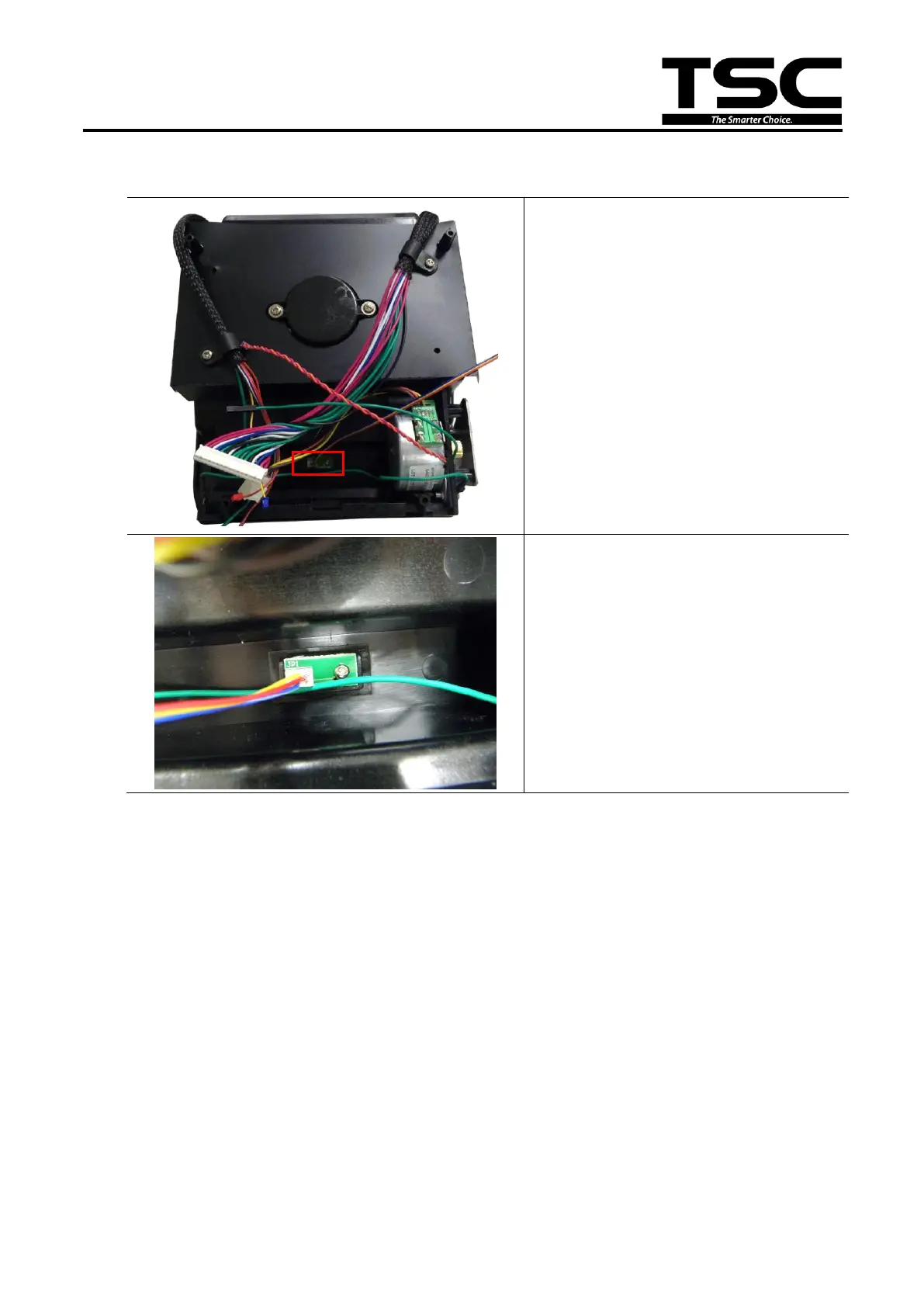

3.5 Replacing the Black-mark Sensor Module
1. Please refer to the section 3.3 to
remove the lower cover.
2. Remove one screw and one
connector to replace the
black-mark sensor board.
3. Reassemble the parts in the
reverse procedure.
