TSC DA310 Series Service Manual

DA210/ DA310/ DA220/ DA320
Bar Code Printer Service Manual
29

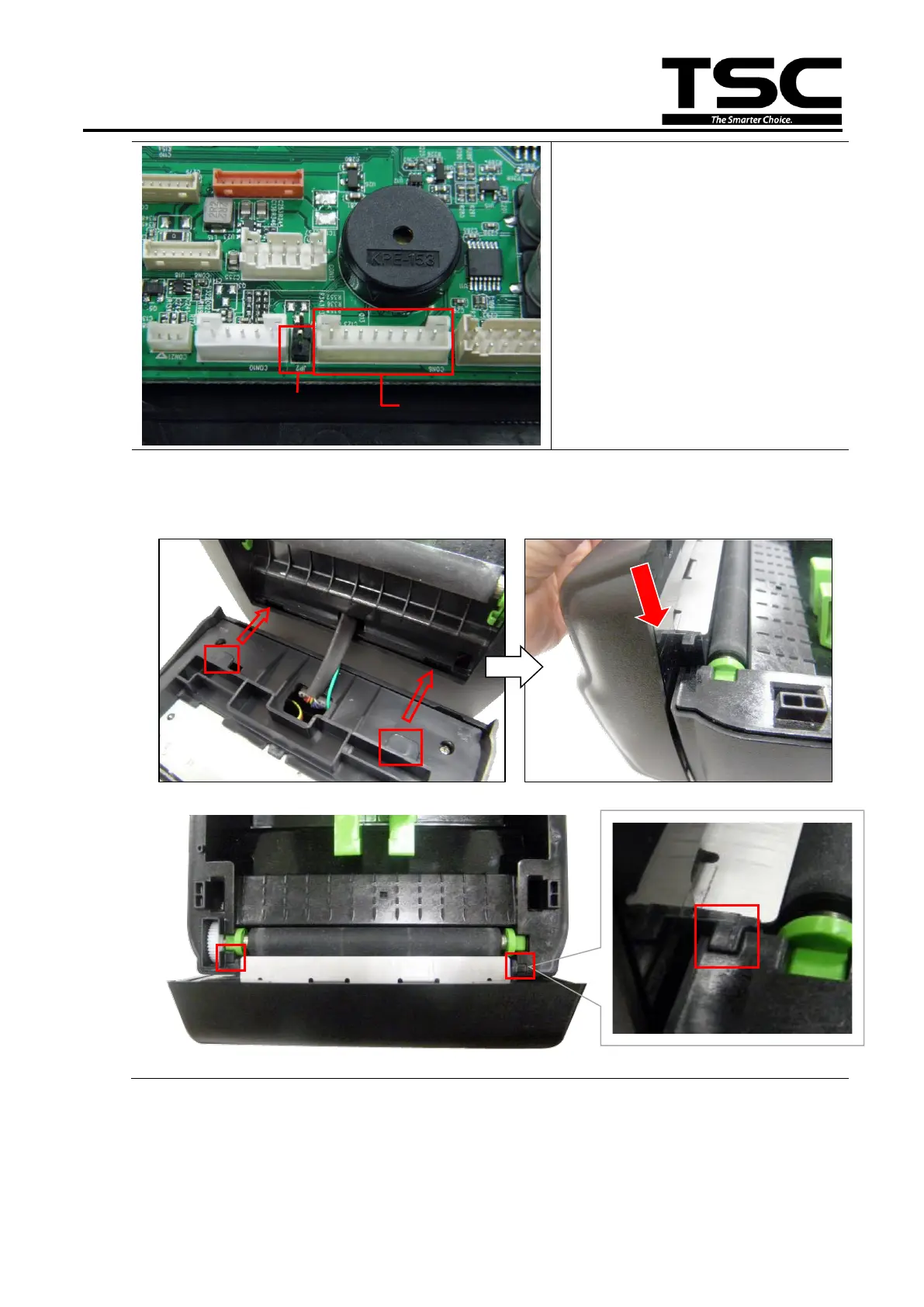

5. Connect the cutter module
harness connector (8-pin
white socket) and ground
cable on the printer main
board as shown.
6. Fasten four screws back on
the printer lower cover.
7. Place the cutter module into the both sides of notches on lower inner printer.
Then push the cutter module to lock into the lower front printer. (see picture
below)
Cutter
connector
Ground

TSC DA310 Series Specifications

General

Resolution	203 dpi
Memory	4 MB SDRAM
Interfaces	USB 2.0, Serial (RS-232), Ethernet
Interface	USB 2.0, Serial (RS-232), Ethernet
Supported Barcode Types	Code 39, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, PDF417, Data Matrix, QR Code
Operating Temperature	41°F to 104°F (5°C to 40°C)
Storage Temperature	-40 ~ 60 °C (-40 ~ 140 °F)
Humidity	20% to 85% RH (non-condensing)
Power Supply	100-240V AC, 50/60Hz
Current Consumption	2.5A
