TSC MH241 Series User Manual

35

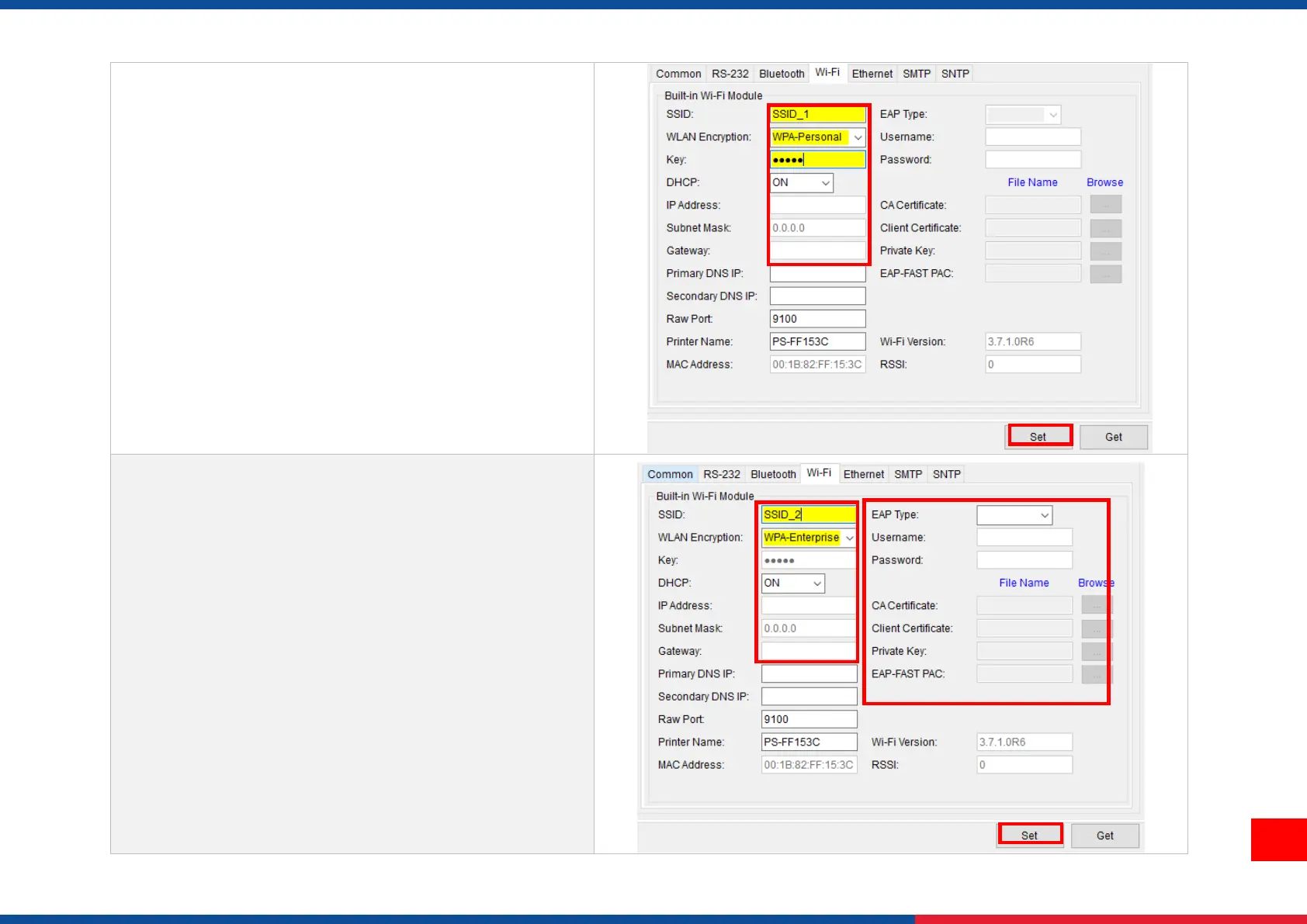

For WPA-Personal
I. Fill-in the SSID.
II. Select the Encryption option to WPA-Personal.
III. Fill-in the Key.
IV. Select DHCP to ON. (For OFF option, please fill-in the
IP Address, Subnet Mask and Gateway)
V. After setting, click the Set button.
Note:
Before setting, the entered field will be shown in yellow for
reminding.
On DHCP, user can change the printer name by another
model name in “Printer Name” field.
User also can change the raw port in “Raw Port” field.
For WPA-Enterprise
I. Fill-in the SSID.
II. Select the Encryption option to WPA2-Enterprise.
III. Select DHCP to ON (For OFF option, please fill-in the IP
Address, Subnet Mask and Gateway)
IV. Select the EAP Type option. (For EAP-TLS option,
please upload the CA and Key for mutual authentication,
integrity-protected cipher suite negotiation, and key
exchange between two endpoints.)
V. After setting, click the Set button.
Note:
Before setting, the entered field will be shown in yellow for
reminding.
On DHCP, user can change the printer name by another
model name in “Printer Name” field.
User also can change the raw port in “Raw Port” field.
1
2
3
2
1

TSC MH241 Series Specifications

General

Resolution	203 dpi
Max. Print Width	104 mm
Interface	Ethernet
Scanning Method	Thermal Transfer/Direct Thermal
Supported Barcode Types	1D Barcodes
Power Supply	AC 100-240V, 50/60Hz
Operating Temperature	5°C to 40°C
Storage Temperature	60°C
Humidity	25-85% non-condensing
Weight	MH241/MH241T/MH241P: 15 kg MH341/MH341T/MH341P: 15 kg MH641/MH641T/MH641P: 15 kg
