TC200/ TC300/
TC210/ TC310
Bar Code Prin
ter Ser
vice Manual
8
21
Gap sensor receiver connector
JP34
Pin
Description
V
oltage
1
Power
3.3V
2
Gap sensor receiver A
D
0~3.3V
22
Ribbon encoder sensor connector
JP20
23
RFID module connector (Factory option)
JP38

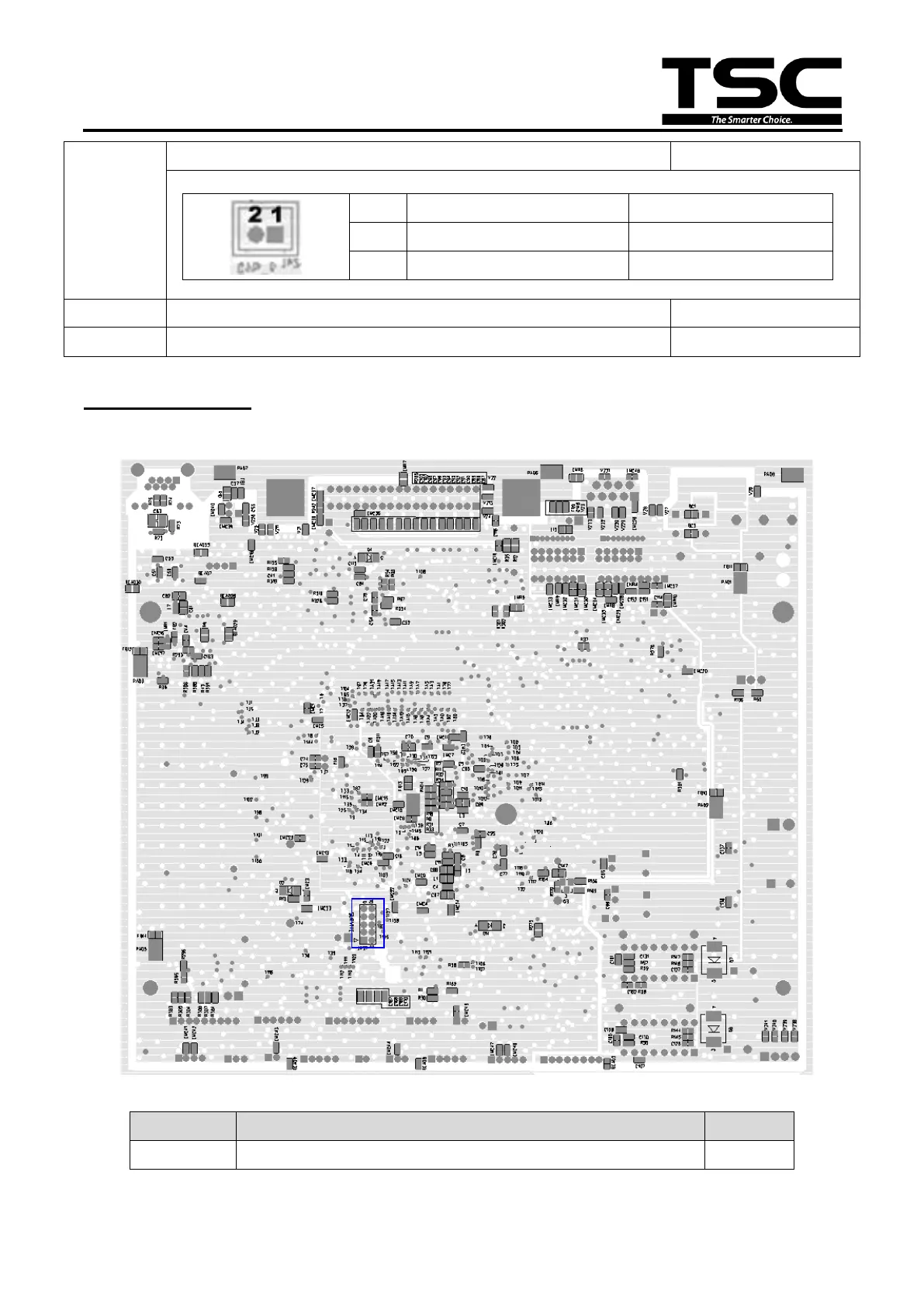

Main board bottom
Connector
Description
Remark
1
Firmware recover card connector
JP37
1
9
11
