TC200/ TC300/ TC210/ TC310
Bar Code Printer Service Manual
21

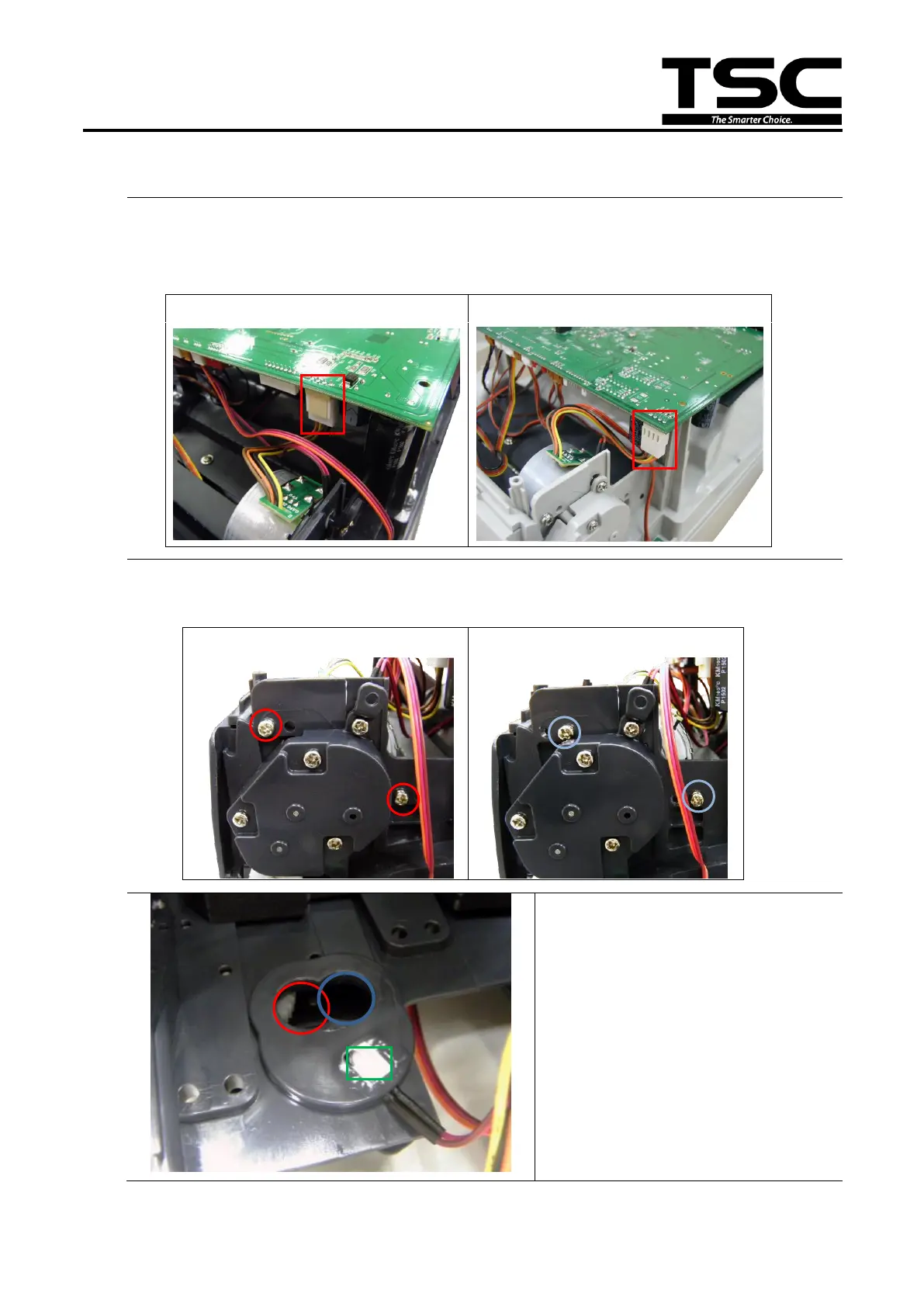

3.6 Replacing the Stepping Motor
1. Refer to section 3.2 to remove the lower cover.
2. Disconnect the stepping motor connector from the main board.
TC210/TC310 series. (J501)
TC200/TC300 series. (JP14)
3. Remove 2 screws to replace stepping motor.
4. Make sure the new stepping
motor is mounted at the correct
location and thermistor is
applied with the thermal
conductive grease to keep good
contact with stepping motor
case.
5. Reassemble the parts in the
reverse procedures.
203 dpi model
motor mounting
location
300 DPI model
motor mounting
location
To Next Page
