TC200/ TC300/
TC210/ TC310
Bar Code Prin
ter Ser
vice Manual
23
3.8
Replacing t
he Gap Sens
or (T
ransmitter)
1.
Refer to section 3.2 to remov
e
the main board.
2.

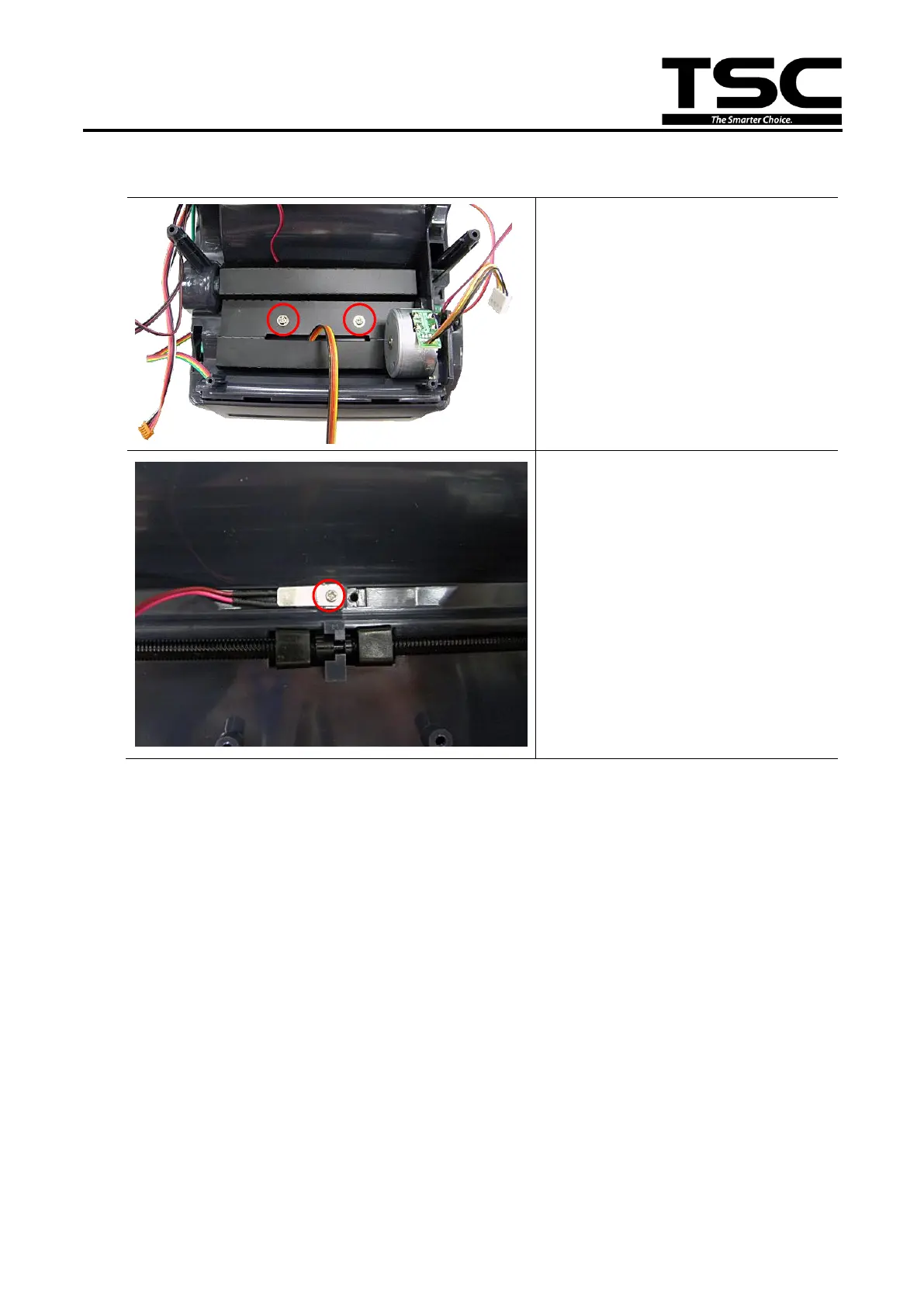

Remove 2 screws to release
the black mylar
.
3.
Remove 1 screw on the sensor
fixing plate to replace the
sensor PCB.
4.
Reassemble the parts i
n the
reverse procedure.
24
26
Table of Contents
Default Chapter
2
Table of Contents
2
1 Overview
3
Front View
3
Interior View
5
Rear View
6
2 Electronics
7
Summary of Board Connectors
7
Pin Configuration
14
3 Mechanism
16
Replacing LED (or LCD) Module
16
Replacing the Main Board
18
Replacing the Head Open Sensor
19
Replacing the Platen Roller Assembly
20
Replacing the Print Head Assembly
21
Replacing the Stepping Motor
23
Replacing the Black-Mark Sensor Module
24
Replacing the Gap Sensor (Transmitter)
25
Replacing the Media Holder
26
Peel-Off Module Installation (Option)
29
Cutter Module Installation (Option)
32
4 Troubleshooting
34
5 Maintenance
38
Update History
40
