TC200/ TC300/
TC210/ TC310
Bar Code Prin
ter Ser
vice Manual
16
3
.2

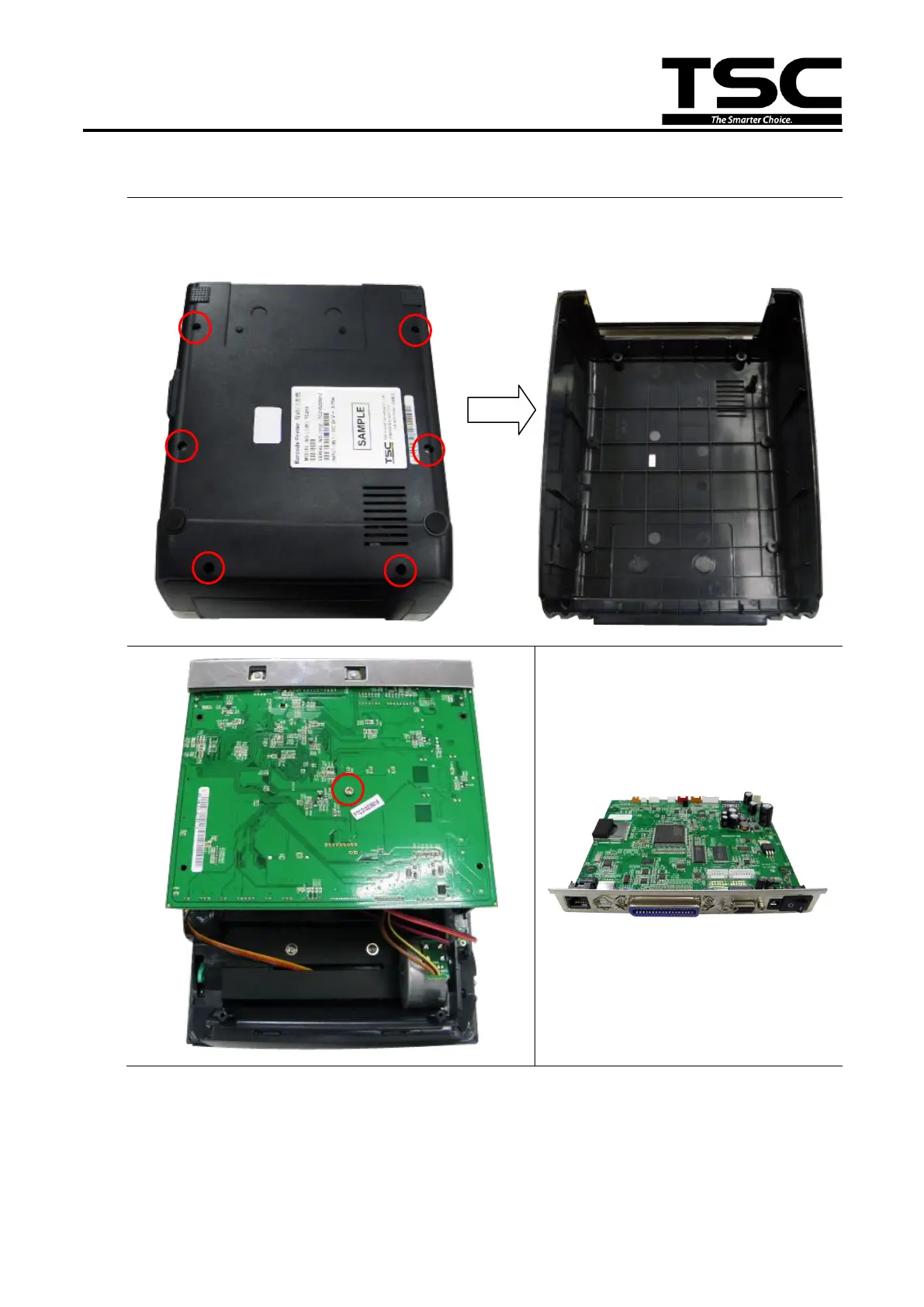

Replacing t
he Main B
oard
1.
T
urn the printer upsi
de down and use the P
hilli
ps
screwdriver to remove 6 screws
on lower cover
. Remove the lower cover
.
2.
Remove 1 screw on the main
board.
3.
Disconnect all connectors to
replace main board.
4.
Reassemble the parts i
n the
reverse procedures.
17
19
Table of Contents
Default Chapter
2
Table of Contents
2
1 Overview
3
Front View
3
Interior View
5
Rear View
6
2 Electronics
7
Summary of Board Connectors
7
Pin Configuration
14
3 Mechanism
16
Replacing LED (or LCD) Module
16
Replacing the Main Board
18
Replacing the Head Open Sensor
19
Replacing the Platen Roller Assembly
20
Replacing the Print Head Assembly
21
Replacing the Stepping Motor
23
Replacing the Black-Mark Sensor Module
24
Replacing the Gap Sensor (Transmitter)
25
Replacing the Media Holder
26
Peel-Off Module Installation (Option)
29
Cutter Module Installation (Option)
32
4 Troubleshooting
34
5 Maintenance
38
Update History
40
