TC200/ TC300/ TC210/ TC310
Bar Code Printer Service Manual
15

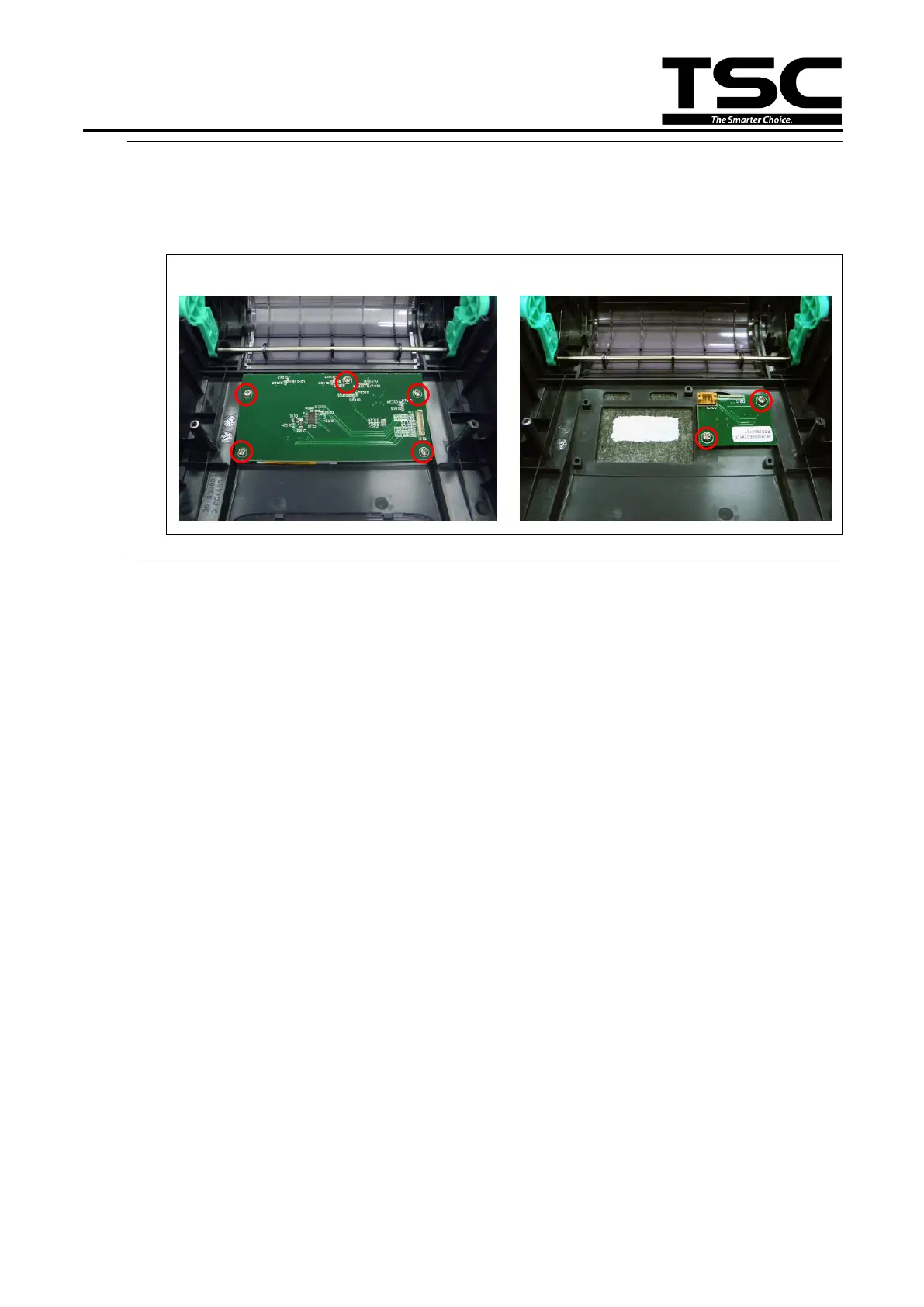

4. Remove 5 screws to replace the LCD module. (Or remove 2 screws to replace the
LED module.) Reassemble the parts in the reverse procedure.
LCD module
LED module
