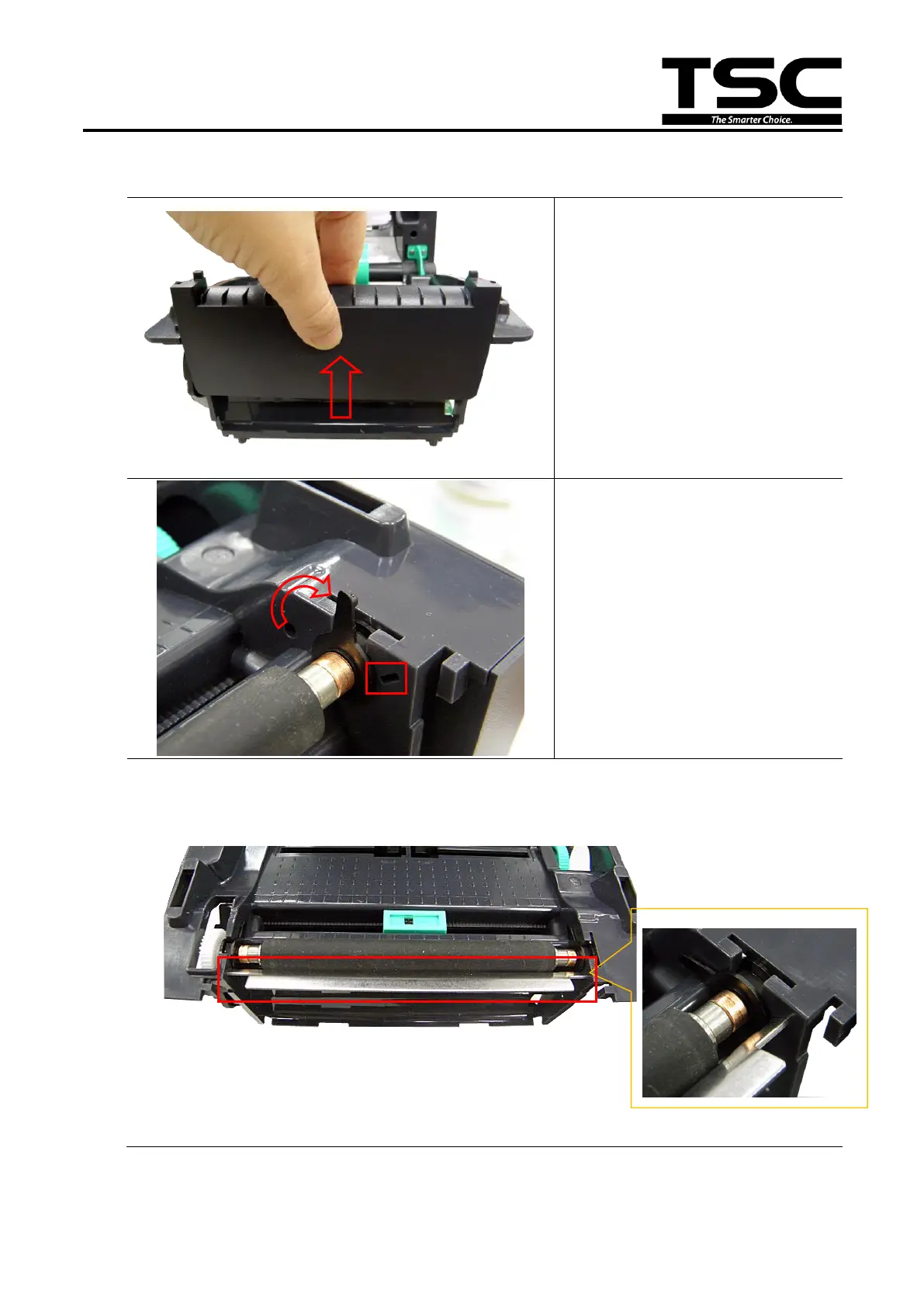

3.10 Peel-off Module Installation (Option)
1. Refer to section 3.2 to
remove the lower cover.
Open the top cover and pull
up the front panel from the
printer.
2. Disengage one of platen
holder tab from lower inner
cover and rotate the tab 90
degrees to install the peel-off
bar into the both slots.
3. Then, rotate the tab 90 degrees to engage the platen holder tab to the lower inner
cover.
