TSC TC200 Series

TC200/ TC300/ TC210/ TC310
Bar Code Printer Service Manual
22

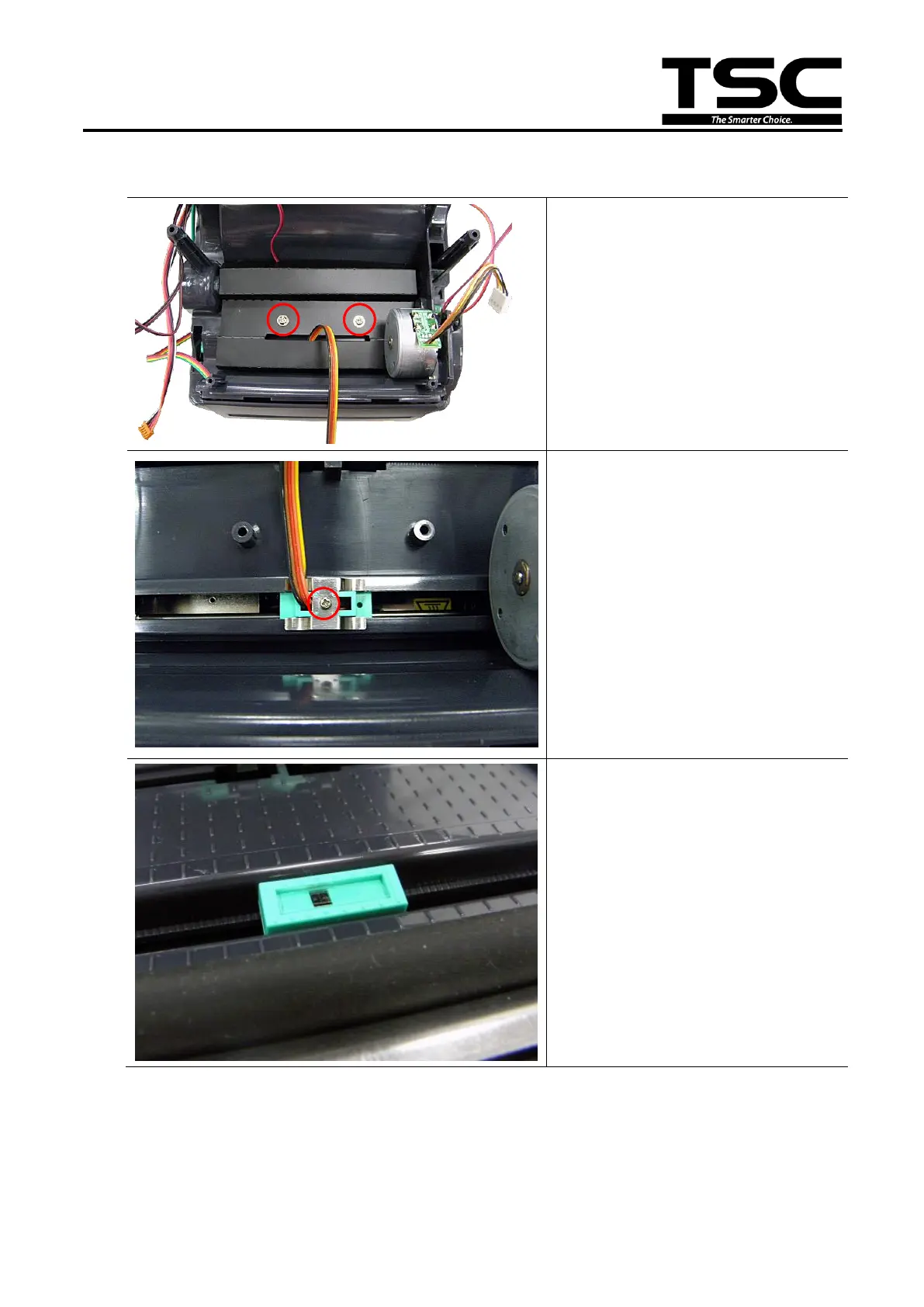

3.7 Replacing the Black-mark Sensor Module
1. Refer to section 3.2 to remove
the main board.
2. Remove 2 screws to release
the black mylar.
3. Remove 1 screw on the
black-mark sensor fixing plate.
4. Remove/replace the
black-mark sensor module.
5. Reassemble the parts in the
reverse procedure.
