TSC TC200 Series User Manual

TC200/ TC300/ TC210/ TC310
Bar Code Printer Service Manual
10
7-1
Print head connector (TC310)
J401 & J403
7-2
Print head connector (TC210)
J402 & J404
8
Micro processor
U1
9
LCD MODULE connector
J700
10
Buzzer (Factory option)
B600
11
RTC battery (Factory option)
BT800
12
SD card slot
J100
13

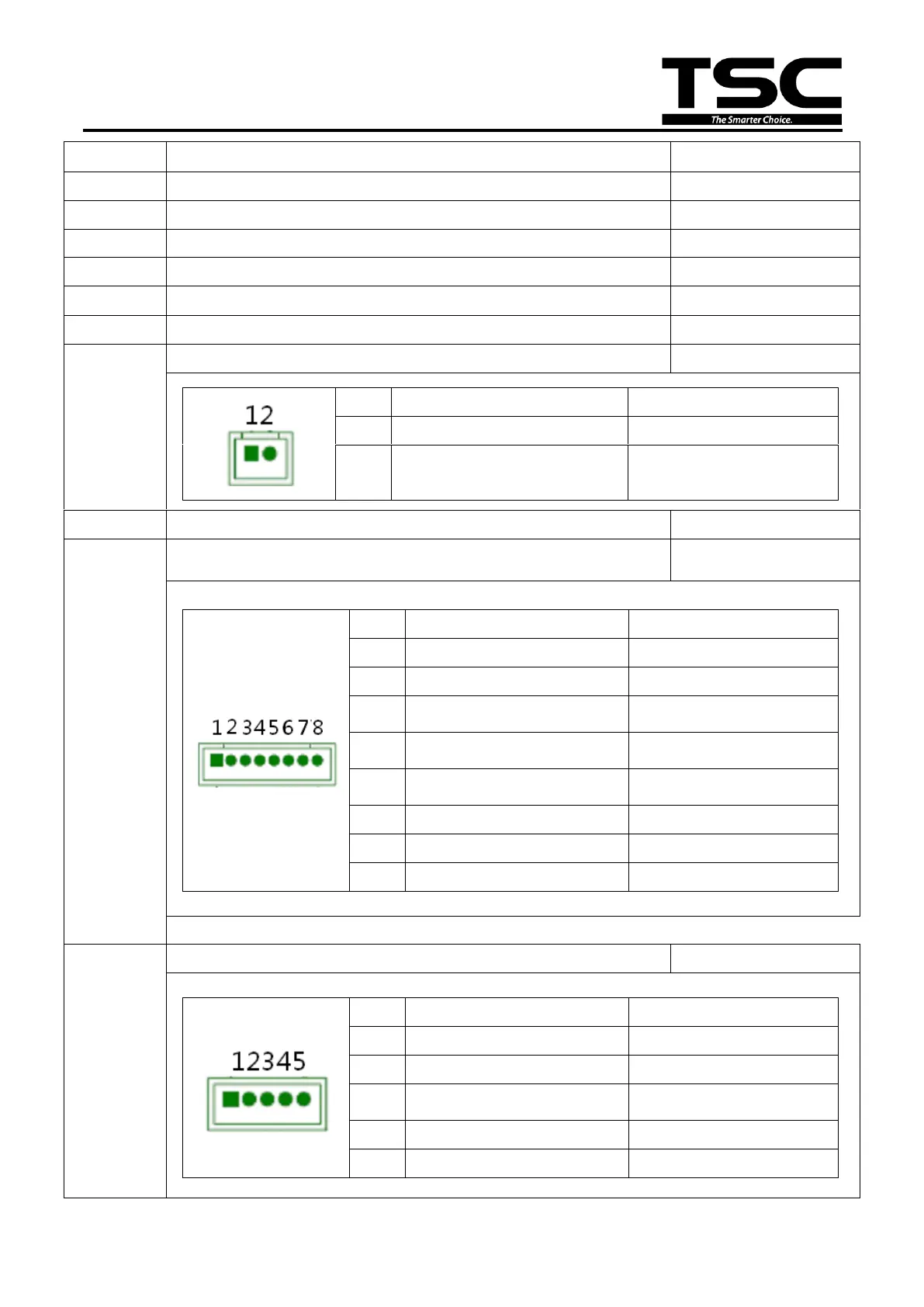

Motor temp. thermistor connector
J607
Pin
Description
Voltage
1
Motor temp thermistor AD
1.5~2.8V
2
GND
0V
14
Stepping motor connector
J501
15
Cutter connector
J500
Pin
Description
Voltage
1
Cutter power
24V
2
GND
0V
3
Cutter direction
0V: Cutter positive cut
5V: Cutter negative cut
4
Cutter enable
0V: Cutter work
5V: Cutter stop
5
Cutter position sensor switch
0V: Cutter stop
3.3V: Cutter work
6
GND
0V
7
Logic power
5V
8
Reserved
17
Peel-off sensor connector
J604
Pin
Description
Voltage
1
2
Reserved
3
Peel sensor emitter
Emitter on : 2.1~2.3V
Emitter off: 2.6~2.8V
4
Peel sensor receiver AD
0~3.3V
5
GND
0V
