11

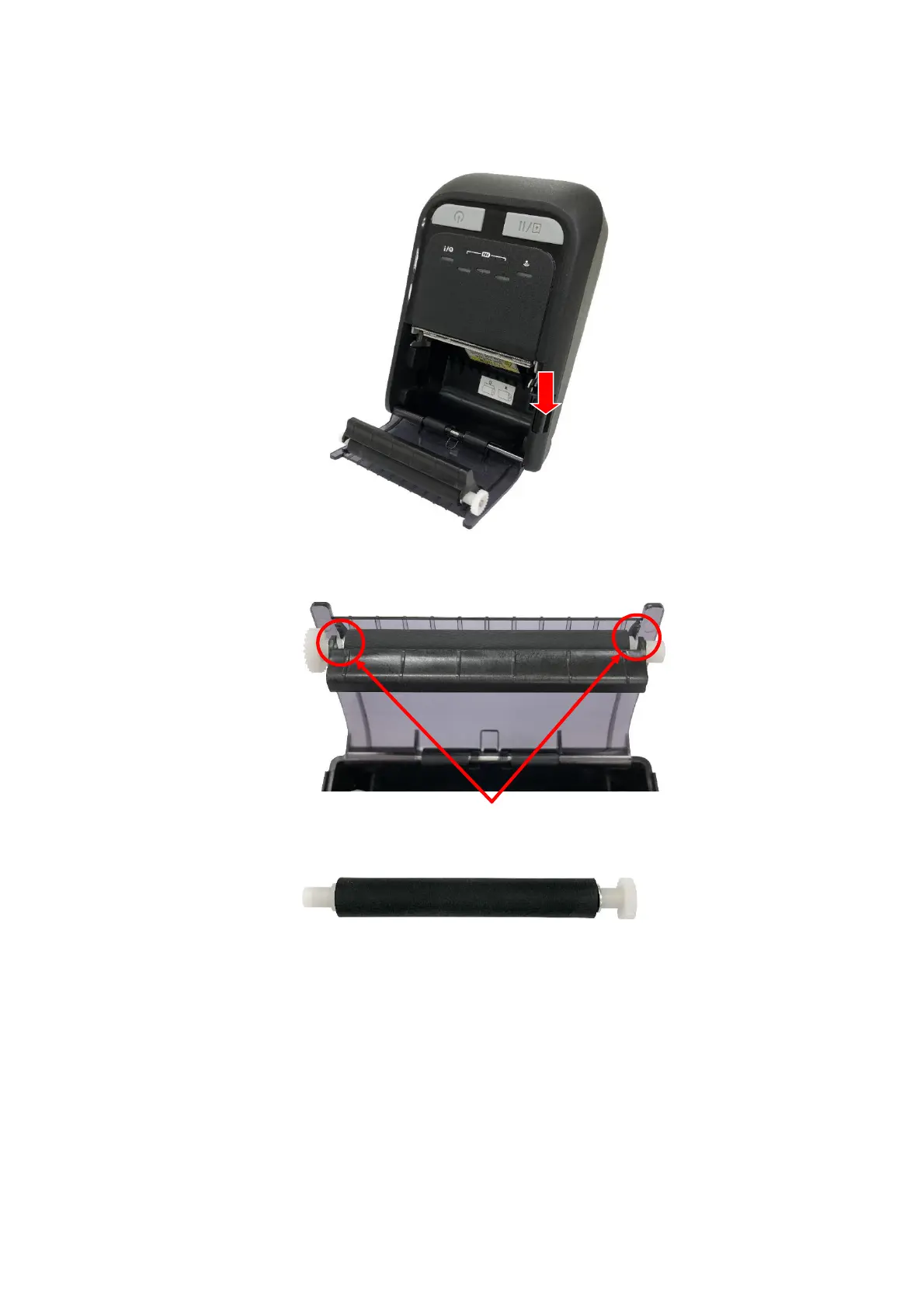

3.3 Replacing the Platen Roller
1. Open the media cover by pressing the media cover release button.
2. Pull up and remove the platen roller through the slots as indicated.
3. Remove/Replace the platen roller.
4. Reassemble the parts in the reverse procedures.
Slots
Platen Roller
