13

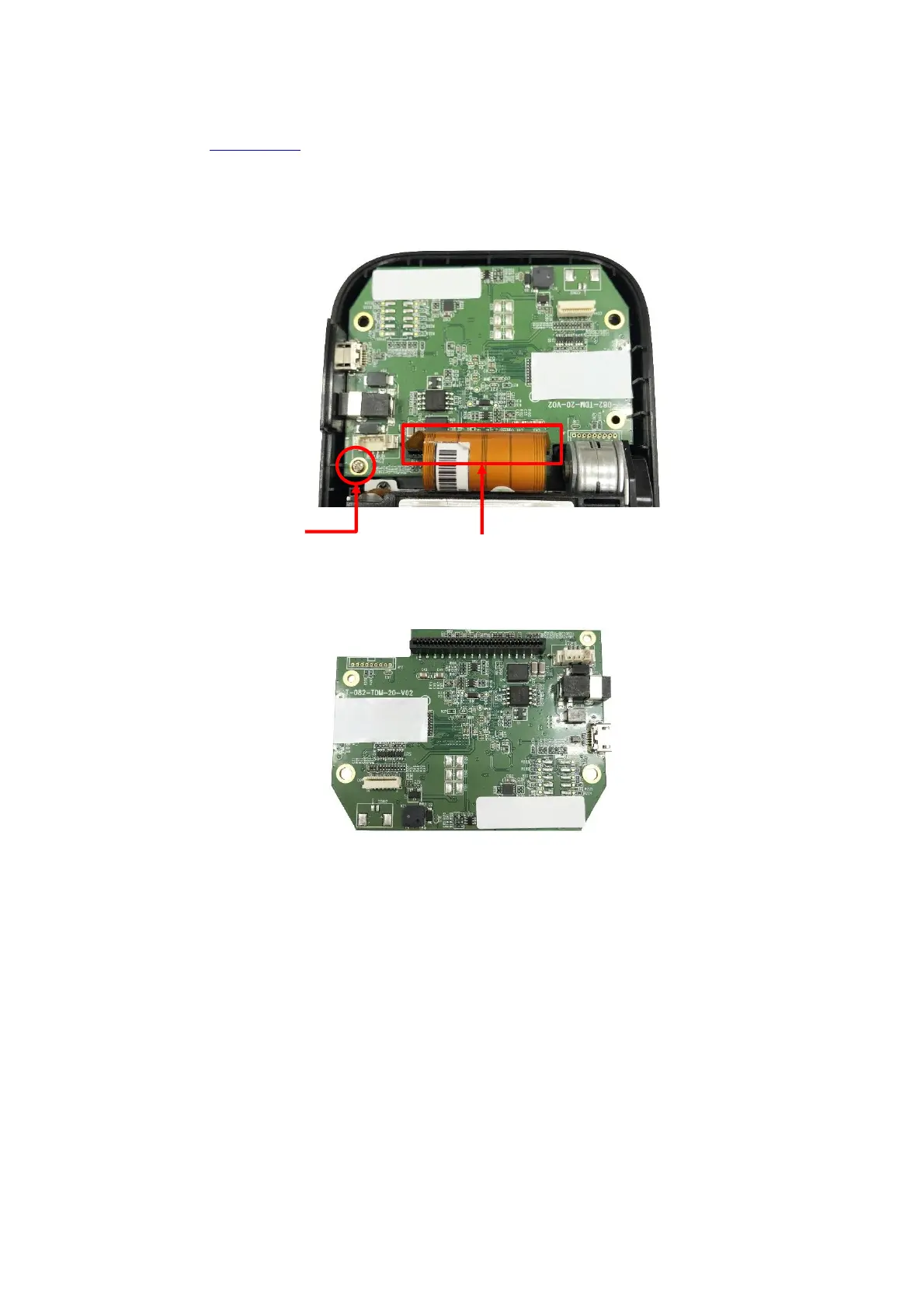

3.5 Replacing the Main Board Assembly
1. Refer to section 3.1 to remove the printer top cover (with keys control board).
2. Remove one screw and disconnect the cable on the main board assembly as
indicated.
3. Remove/Replace the main board assembly.
4. Reassemble the parts in the reverse procedures.
Cable
Screw
Main board assembly
