3.4 Replacing the Keys Control Board
1. Refer to section 3.1 to remove the printer top cover (with keys control board).

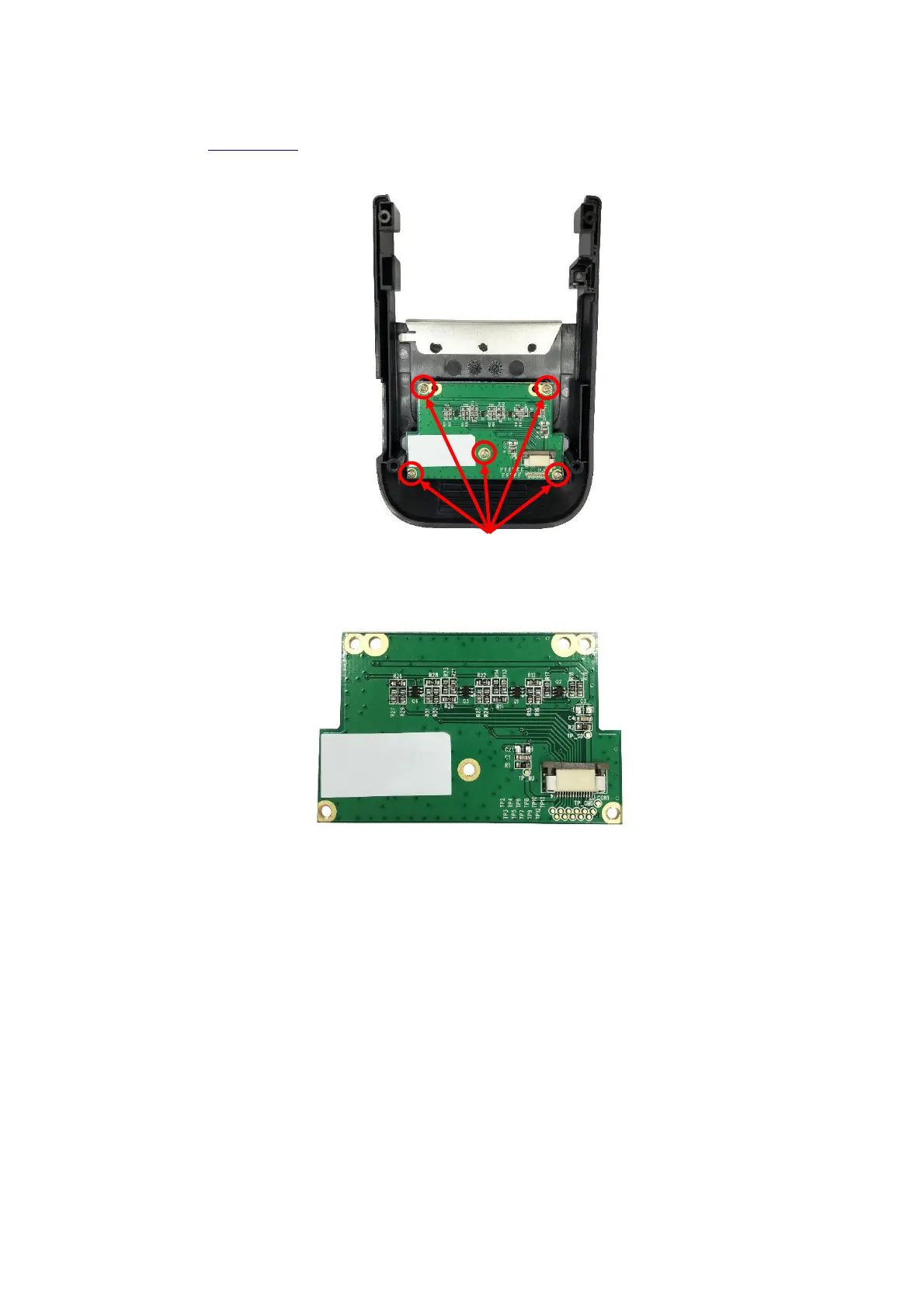

2. Remove five screws on the keys control board as indicated.
3. Remove/Replace the keys control board.
4. Reassemble the parts in the reverse procedures.
Keys Control Board
Screws
