TSC TDP-225 Service Manual

TDP-225 Series
Bar Code Printer Service Manual
8

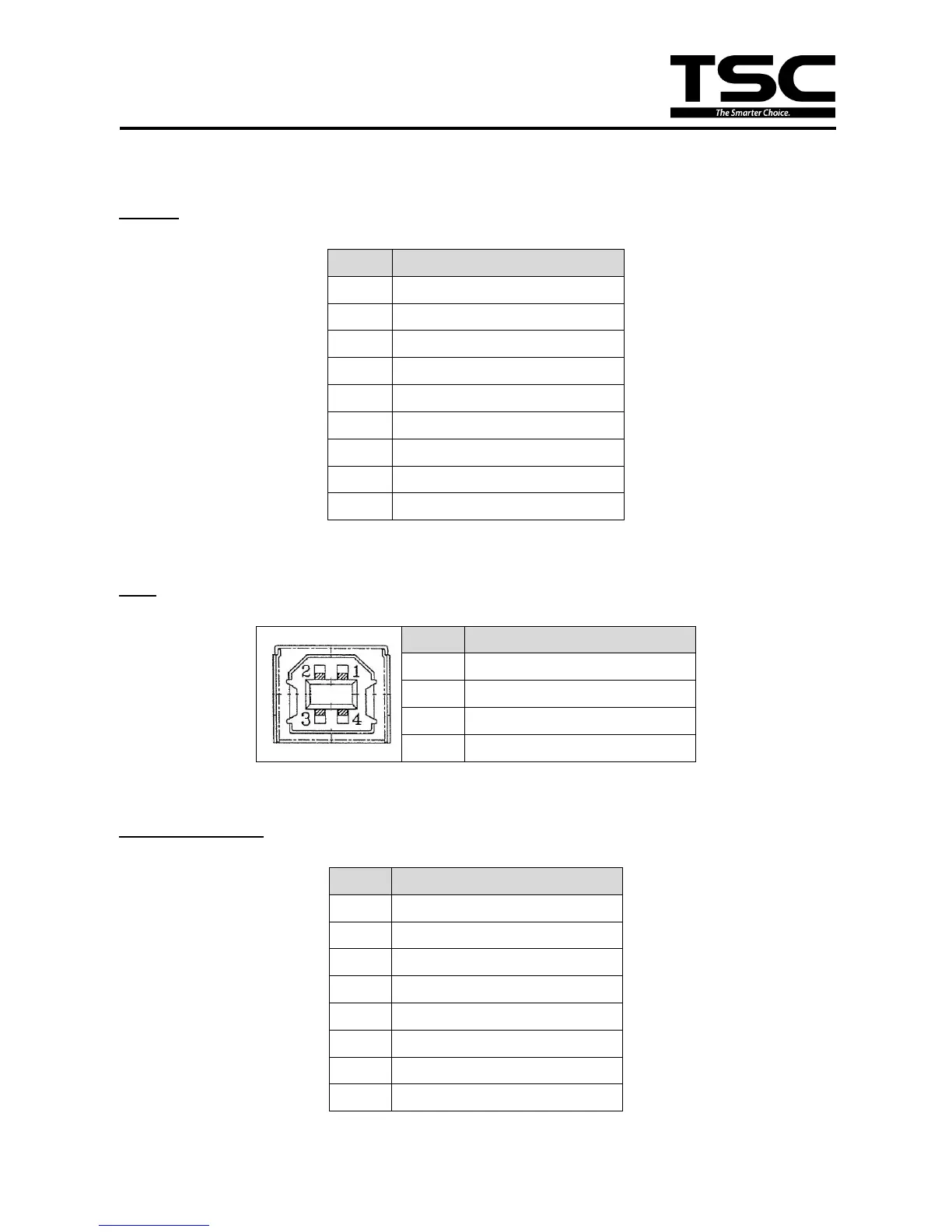

2.2 Pin Configuration
RS-232
PIN
CONFIGURATION
1
+5 V
2
TXD
3
RXD
4
CTS
5
GND
6
RTS
7
N/C
8
RTS
9
N/C
USB
PIN
CONFIGURATION
1
N/C
2
D-
3
D+
4
GND
Ethernet (Option)
PIN
CONFIGURATION
1
Tx+
2
Tx-
3
Rx+
4
N/C
5
N/C
6
Rx-
7
N/C
8
N/C

TSC TDP-225 Specifications

General

Print technology	Direct thermal
Vertical printing	Yes
Maximum resolution	203 x 203 DPI
Maximum print height	2286 mm
Maximum printing width	54 mm
Ethernet LAN	No
USB 2.0 ports quantity	1
Connectivity technology	Wired
Flash memory	4 MB
Certification	FCC, CE, TUV, CUL, UL, CCC, C-Tick
Internal memory	8 MB
Built-in barcodes	1D, 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN128, EAN13, EAN8, Interleaved 2/5, MaxiCode, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Built-in processor	RISC 32-bit
Compatible memory cards	SD
Power requirements	100 - 240
AC adapter output current	2 A
AC adapter output voltage	24 V
Display	LCD
Product color	-
Core diameter	38 mm
Ribbon length	90 m
Media thickness	0.06 - 0.19 mm
Maximum label width	60 mm
Maximum label length	2.286 m
Maximum roll diameter	127 mm
Supported paper width	15 - 60 mm
Maximum media length (imperial)	90 \
Supported paper width (imperial)	0.59 - 2.36 \
LED indicators	Power, Status
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	41 - 104 °F

Weight and Dimensions

Depth	209 mm
Width	109 mm
Height	171 mm
