TDP-225 Series
Bar Code Printer Service Manual
24

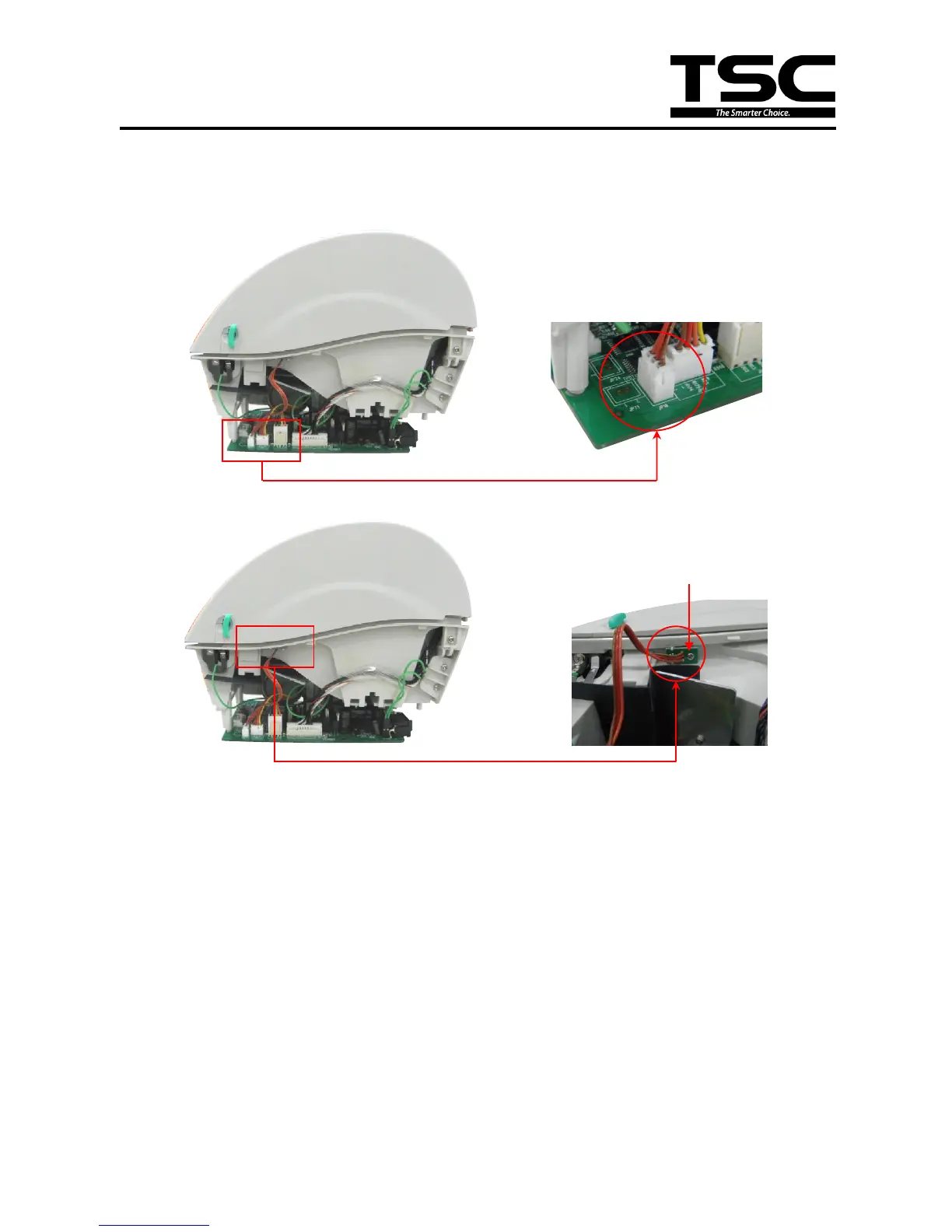

3.10 Replacing the Head Open Sensor
1. Refer to section 3.2 to remove the lower cover.
2. Remove head open sensor connector. (JP16)
3. Remove 1 screw to remove and replace open head sensor.
4. Reassemble the parts in the reverse procedure.
