TDP-225 Series
Bar Code Printer Service Manual
17
3.5 Replacing the Print Head Assembly

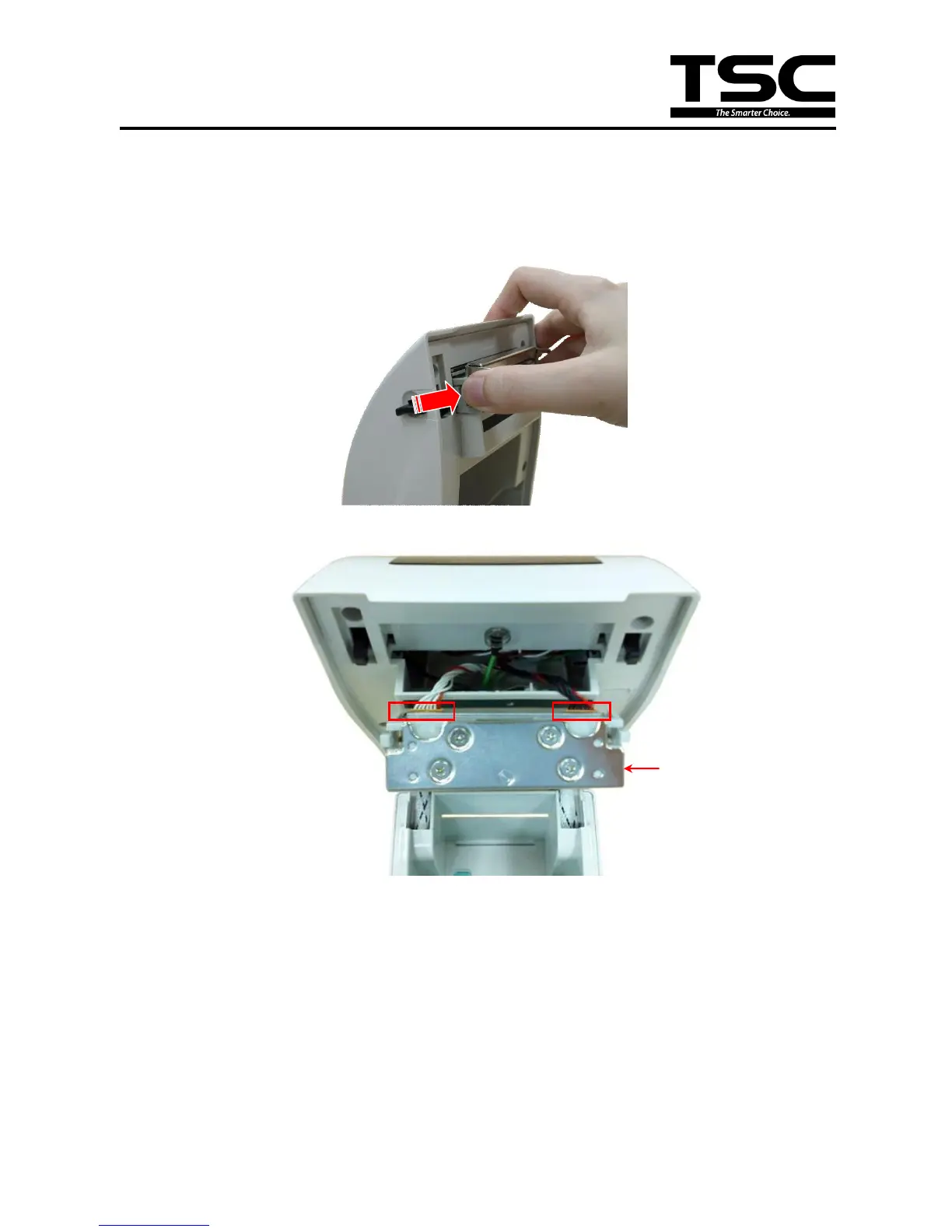

1. Open the printer top cover.
2. Press left concave of the print head bracket then pick up the print head assembly.
3. Disconnect the print head harness. Replace the print head assembly.
4. Reassemble the parts in the reverse procedures.
