TDP-225 Series
Bar Code Printer Service Manual
20

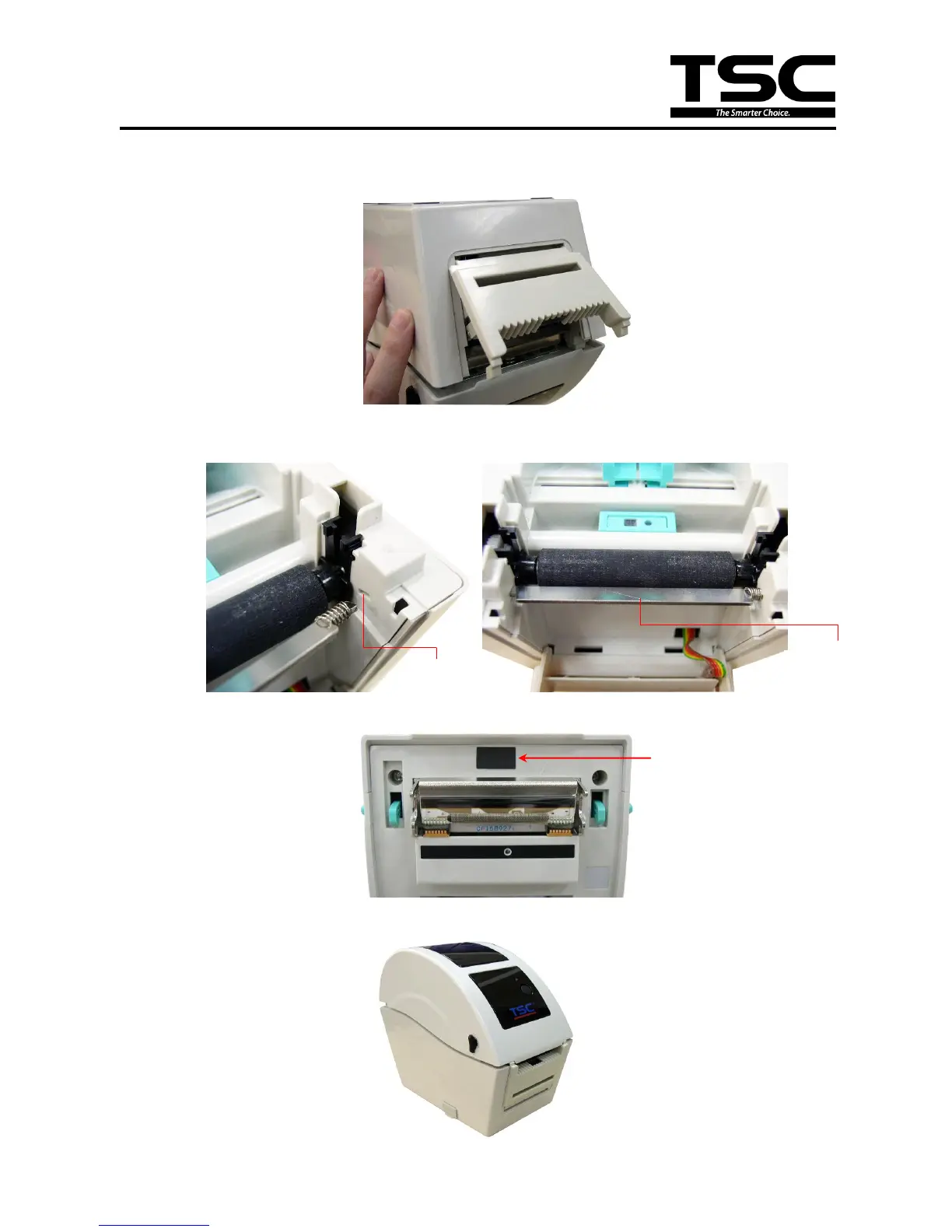

4. Then, put back the lower inner cover. Fasten the 4 screws and Insert the interface
plate.
5. Open the top cover and peel-off cover. Install the peel-off bar into the both slots of
lower inner cover. Install the right side with spring first.
6. Stick the black label on the top inner cover above the print head.
7. Place the printer in the flat and secured desktop for media loading and printing.
