17
17

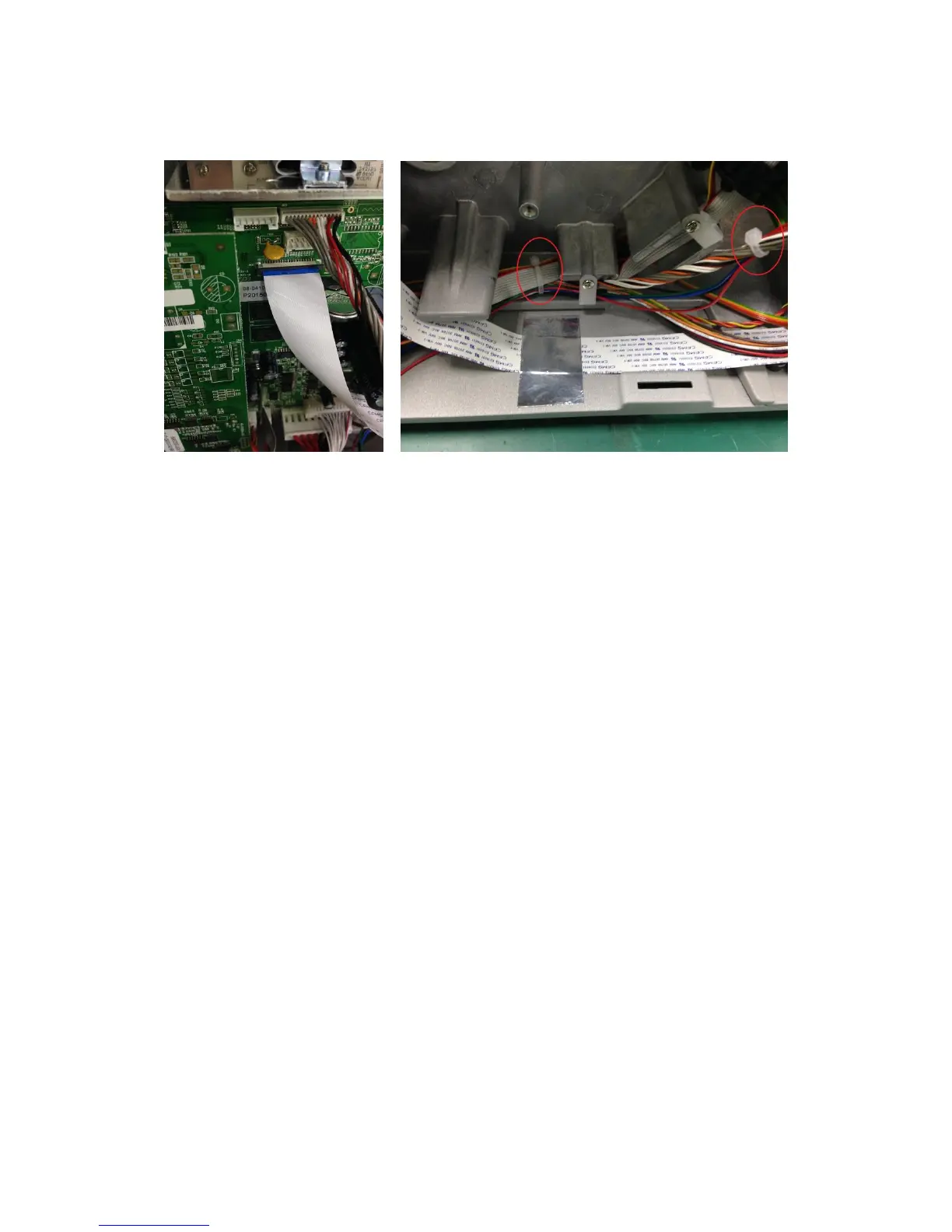

4. Reassemble the parts in the reverse procedures. If the flat cable on panel module is
difficult to connect back, please remove it on main board and loose 2 cable ties to install.
