TSC TTP-2410MT Series

19
19

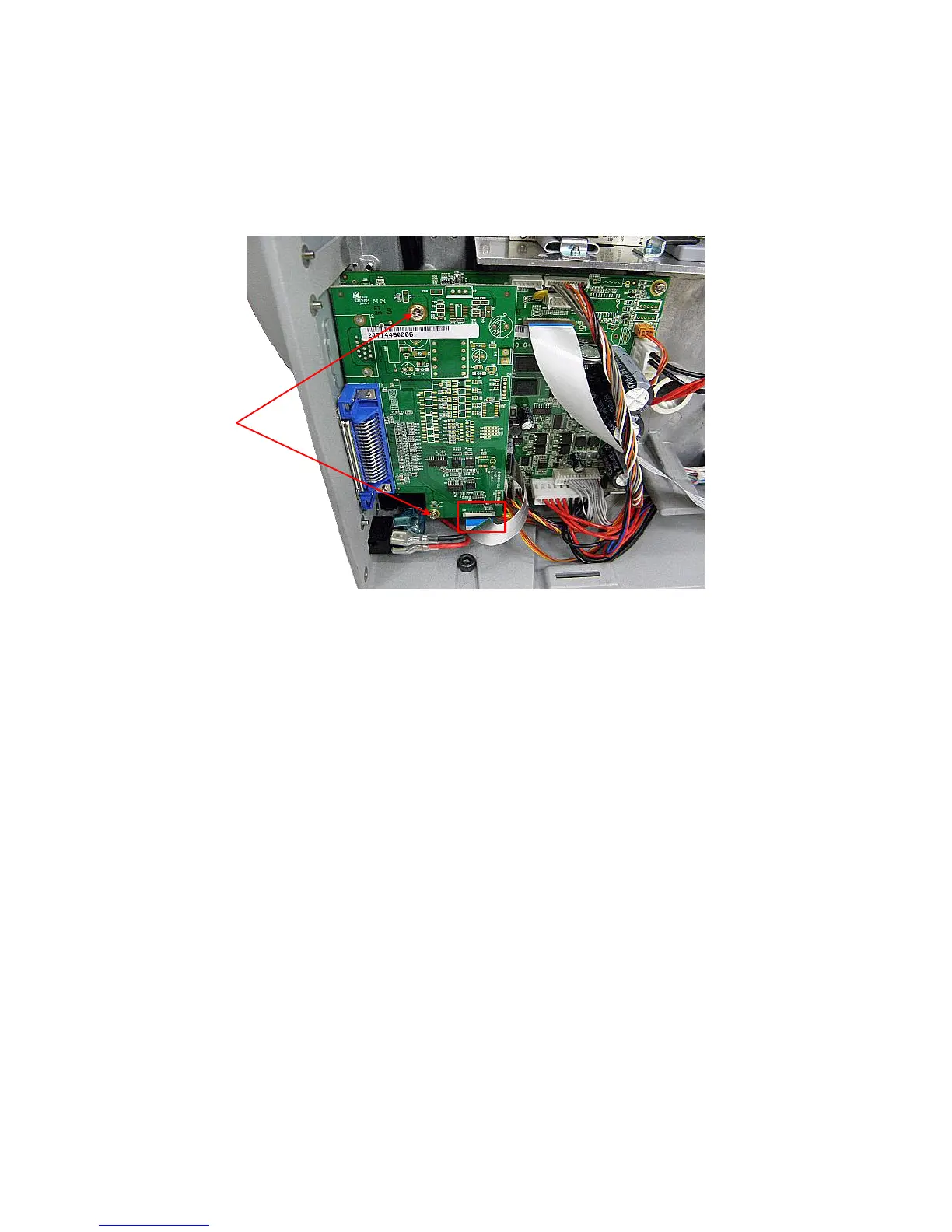

3.4 Replacing Multi-interface Board
1. Refer to section 3.1 to remove the electronics cover.
2. Remove 2 screws. Disconnect 1 flat cable. Remove/Replace the multi-interface board.
3. Reassemble the parts in the reverse procedures.
Screws
